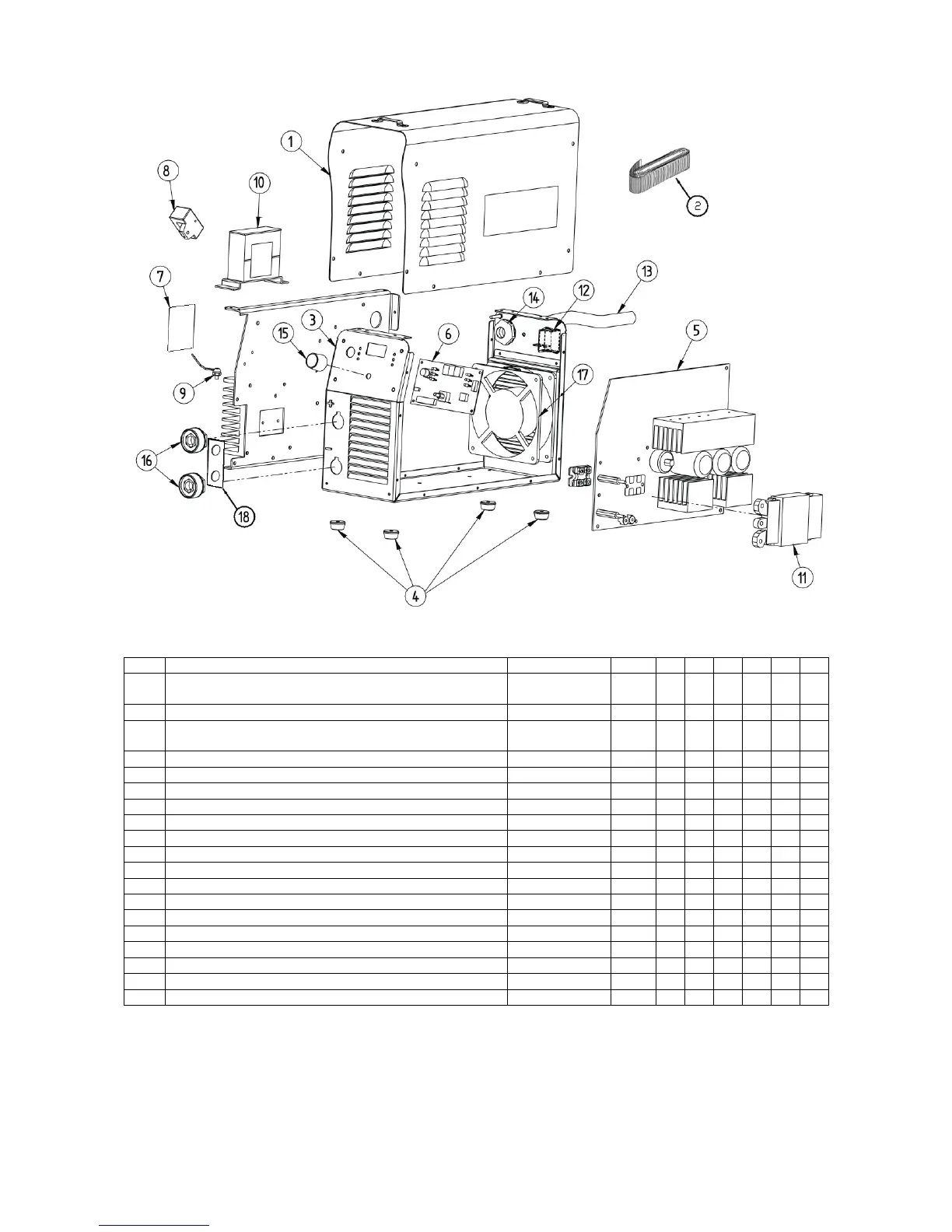

Figure C
Figure C: Machine Assembly
Item Description Part Number QTY 1 2 3 4 5 6
1
1A
Wraparound
+ Side Nameplate
W93X0925R
W07X1102R
1
1
X
X
2 Carrying Strap W9200150R 1 X
3
3A
Main Frame
+ Front Nameplate
W93X0929R
W07X1101R
1
1
X
X
4 Anti-Slip Foot W8602311R 4 X
5 Inverter P.C. Board W05X0907R 1 X
6 Control P.C. Board W05X0909R 1 X
7 Input Filter W05X1220R 1 X
8 Hall Sensor W4900003R 1 X
9 Thermostat Sensor W9600081R 1 X
10 Out Inductor W58X1182R 1 X
11 Power Transformer W59X0988R 1 X
12 Input Switch W7516224R 1 X
13 Input Cable CE W78X1087R 1 X
14 Cable Clamp W8400006R 1 X
15 Knob Kit W8700022R 1 X
16 Output Dinse Connector W7600025R 2 X
17 Fan W7200013R 1 X
18 Output Filter W05X1221R 1 X
