I. Installation for 530 gal; 800 gal Filter Pumps. (See Fig. 1)
Bestway
®
3
NOTE: To order spare parts for the Ozone generator, please provide us with part no. and part name.
The Ozone generator is designed to continuously generate ozone, which sterilizes pool water.
The Filter Pump is used to circulate and purify the pool water.
Pedestal Fixing
The product must be vertically fixed on ground or a certain pedestal made of wood or concrete before it can be used. There should be two holes,
5.8mm in diameter on the pedestal, the space between which should be 103mm. Put the product on the pedestal and fix them together with bolts
and nuts. The pedestal should weigh over 18kgs in order to prevent the product from accidentally falling.
INSTALLATION DIRECTIONS
CORD-CONNECTED OZONE GENERATOR
Specifications
Voltage:
Power Rate: 220-240V 50Hz 50W
Ozone output: 300mg/h.
Water temperature should be maintained between 5°C and 35°C for unit to operate correctly.
Filter Pump Compatibility: ≥2006 L/h (530 gal/h)
Sand Filter Compatibility: 3028 L/h (800 gal/h)

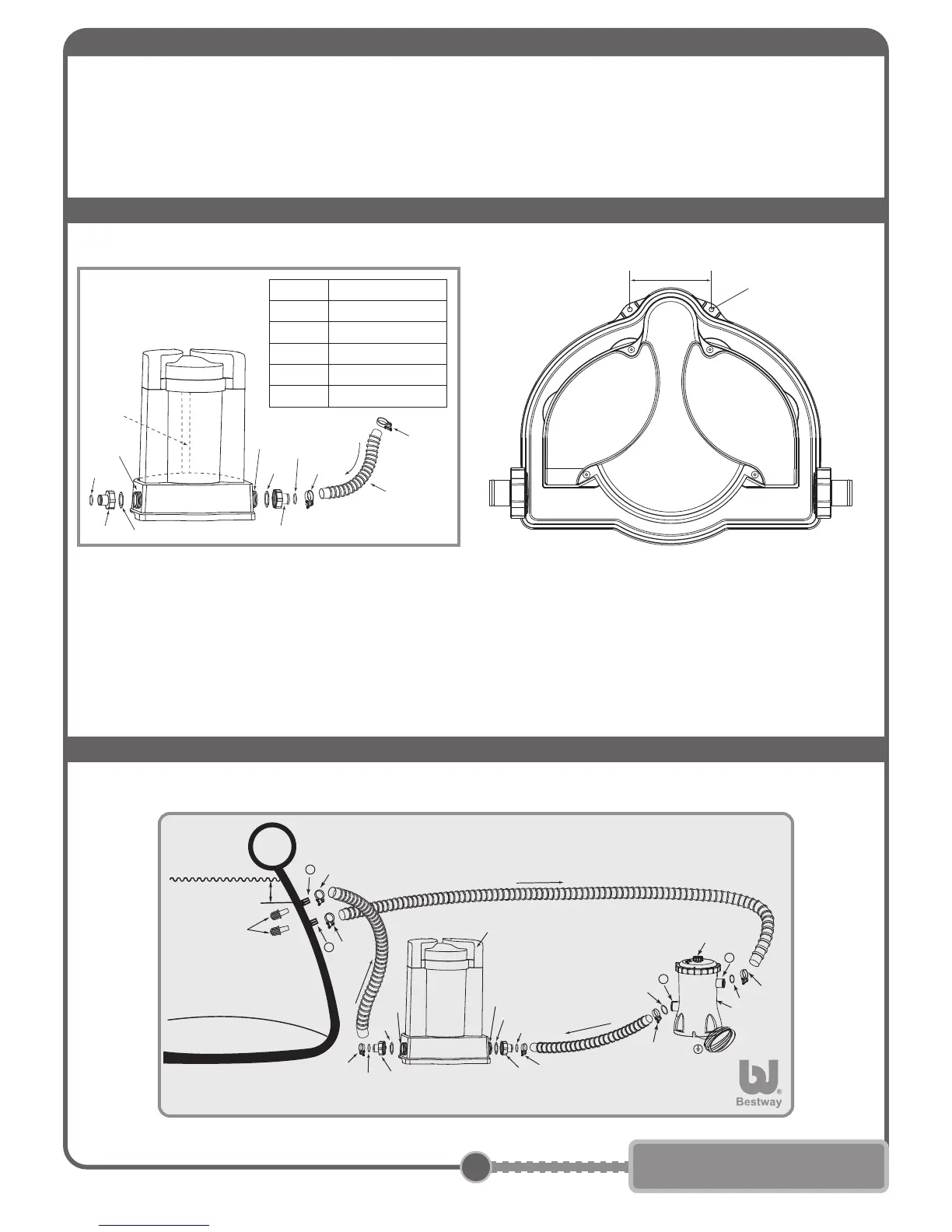

PARTS REFERENCE OVERVIEW
S-S-000860
S-S-000860/21.0x28.5cm(#58202/A版) JS-YF-2009-B-01316/英
INLET
OUTLET
P6005
P6321
P6005
P6230P6230
58206
P6005
P6124
P6019
P6230
P6321
58206
O-ring
Hose Clamps
Hose
Adapter
Washer
Desiccants
P6019
P6124
P6321
P6124
Illustration (not to scale) of Pool and Filter Pump and the Ozone Generator.
P6124
P6124
Water flow
Clear Water System
Water flow
Water flow
Inlet
Outlet
P6124
P6124
P6124
P6005
P6321
P6005
P6321
P6230
P6230
Fig. 1
>1/2 inches
Debris Screens
Inlet Valve
Outlet
Valve
(F4030)
B
A
Air Purge Valve
Filter Pump
Inlet
Outlet
P6005
P6124
P6005
B
A
103mm
Ø5.8mm
