• Connect tubes to standpipes as shown at
left. The standpipes come with nut fittings
to connect to standard 1/4” ID
detergent/sanitizer and 1/8” ID rinse
polyflow transport tubing
• For installations requiring a low level alarm
lance, you can either use a separate low
level lance, or a low level suction lance
such as 1201071 which clamps onto the
side of the drum
• If you want to use color transport tubing,
use ¼” OD blue polyflow 092384, ¼” OD
red polyflow 041771, and 1/4T -1/4T
compression fitting rinse tube 1205464,
and the detergent standpipe 035623

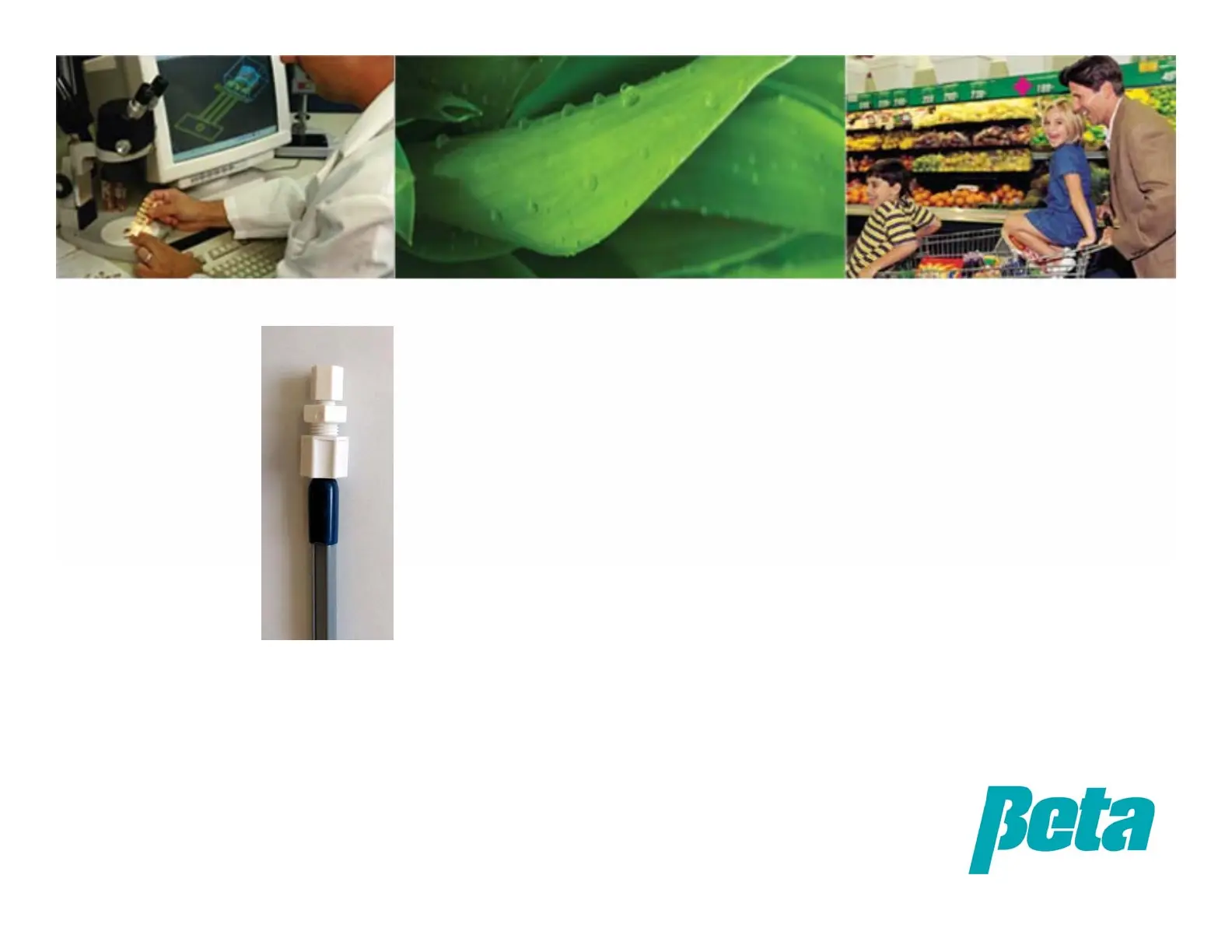

035623 Detergent 1/4” ID
18” long CPVC standpipe
050572 Rinse 1/8” ID 18”
long CPVC standpipe
TUBING: Chemical Pickup Lance
Connection
