• The left side of the pump is the suction side which
should be connected to the chemical supply
• The right side of the pump is the chemical discharge
side which will be connected to injection fittings on
the washer
• Flex tubes are shipped outside of the cartridge so
they don’t seal shut during warm storage
• Loosen tube nuts, insert tubes, and tighten nuts as
shown
• Always point black SnapHead pins up or down and
push in to lock into place

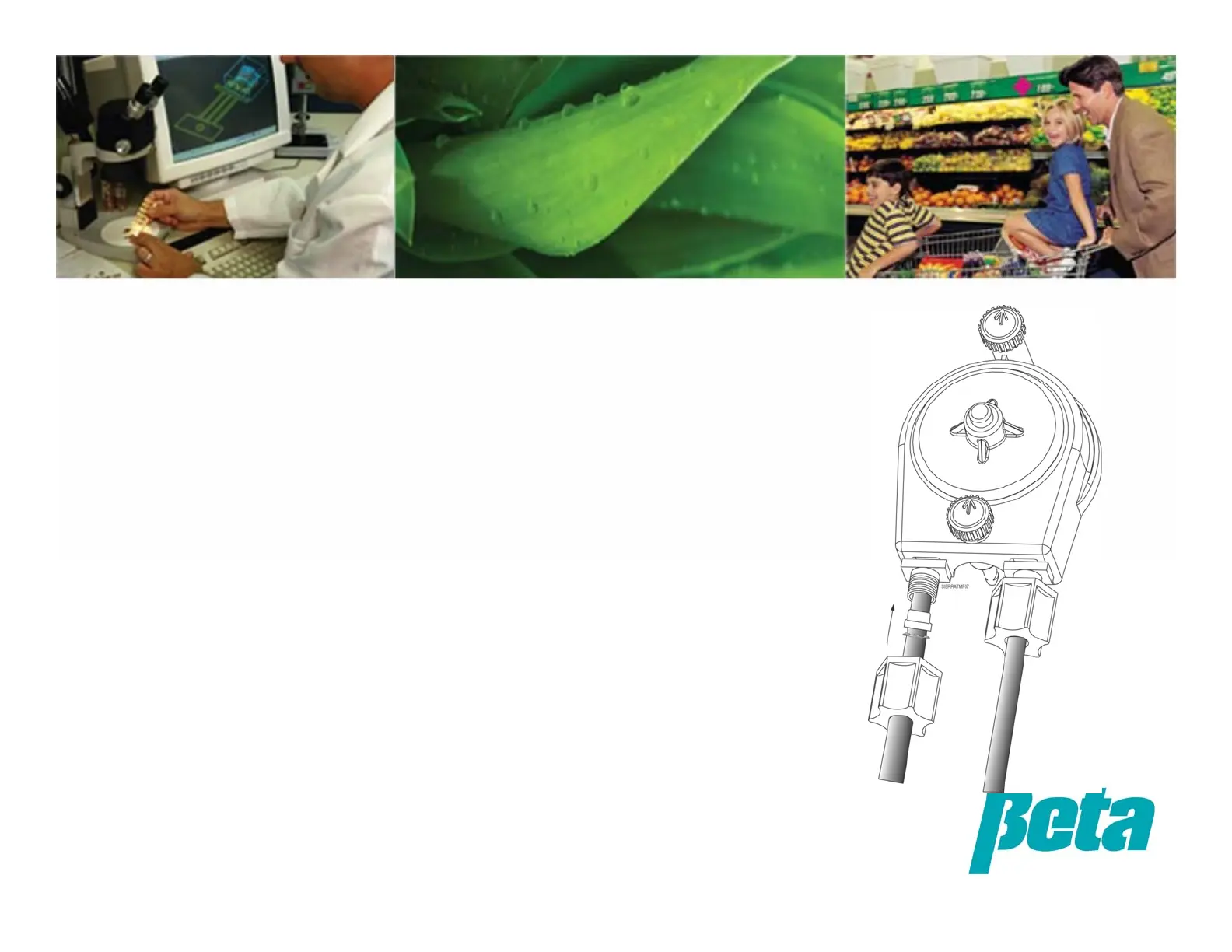

TUBING: Pump Connection
