CA 4146 – Examples
24

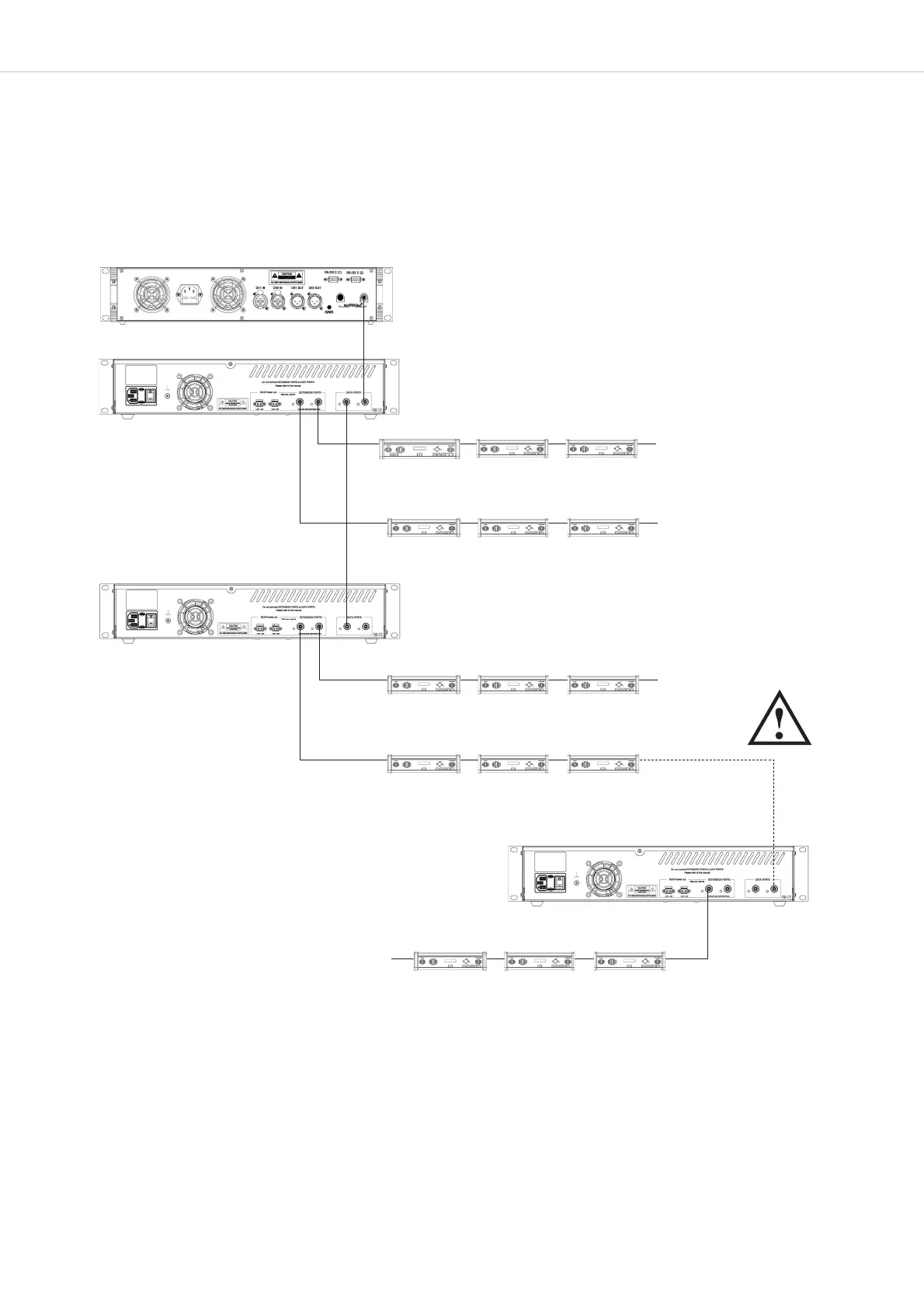

How to connect a power supply unit to the Extension Port
Note:
In this setup the microphone units connected to the power supply unit no. 3 only work when all power supply units are turned on.
MCS-D 200 control unit
1. CA 4146 power supply unit
2.CA 4146 power supply unit
3. CA 4146 power supply unit
more microphone units
more microphone units
more microphone units
