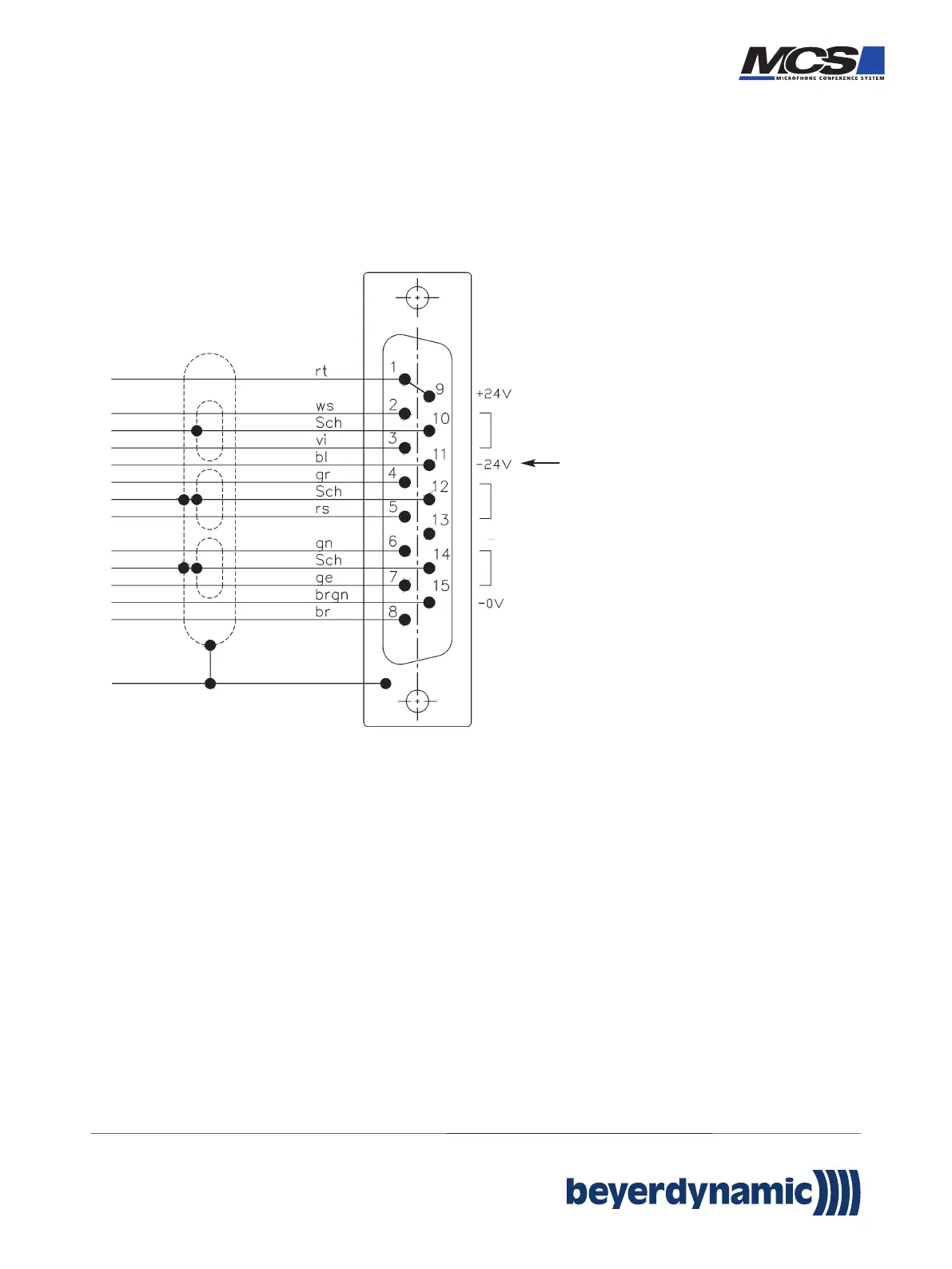

Beyerdynamic MCS 50 - Connection System Cable

Sub-D-plug
Shield CPU
Shield AF Input
AF Output
rt = red
ws = white
Sch = black
vi = purple
bl = blue
gr = grey
rs = pink
gn = green
ge = yellow
brgn = brown/green
br = brown
C ONNECTION S YSTEM C ABLE
only when connected to MCS 100
