VU001_1010_Rev000_ISTRUZ_DOSAT_3D5_MAESTRO_CLASSICAEVA_TEC
Area Elettronica
Page | 1
DISPLAY CONTRAST
AND BRIGHTNESS ADJUSTMENT
AFTER YOU HAVE REPLACED THE CONTROL UNIT ADJUST DISPLAY
CONTRAST AS FOLLOWS:
1. REMOVE THE COVER OF THE CONTROL UNIT.

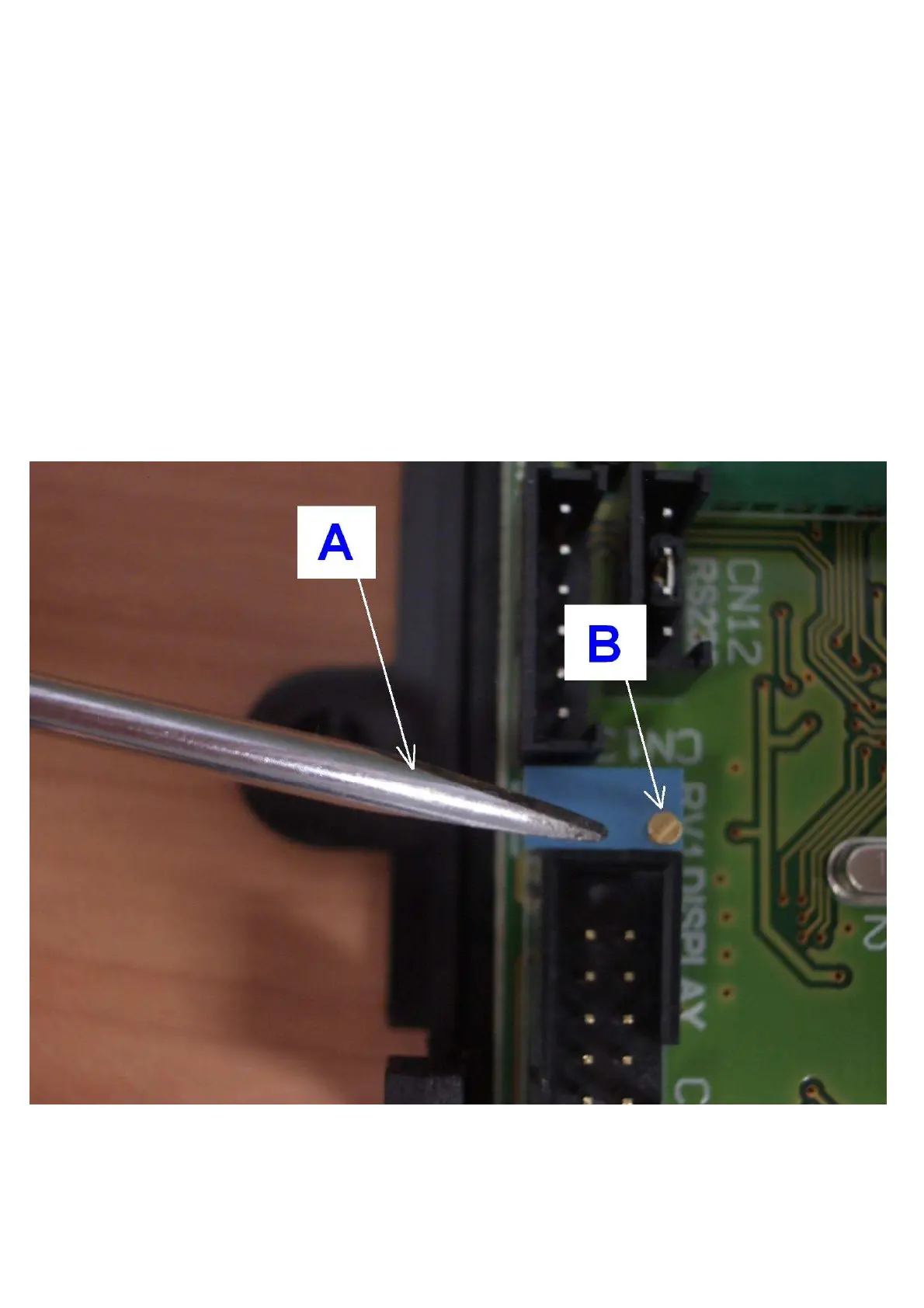

2. USING A SLOTTED SCREWDRIVER (A) ROTATE THE SCREW (B) AS SHOWN
TO ADJUST DISPLAY CONTRAST.
