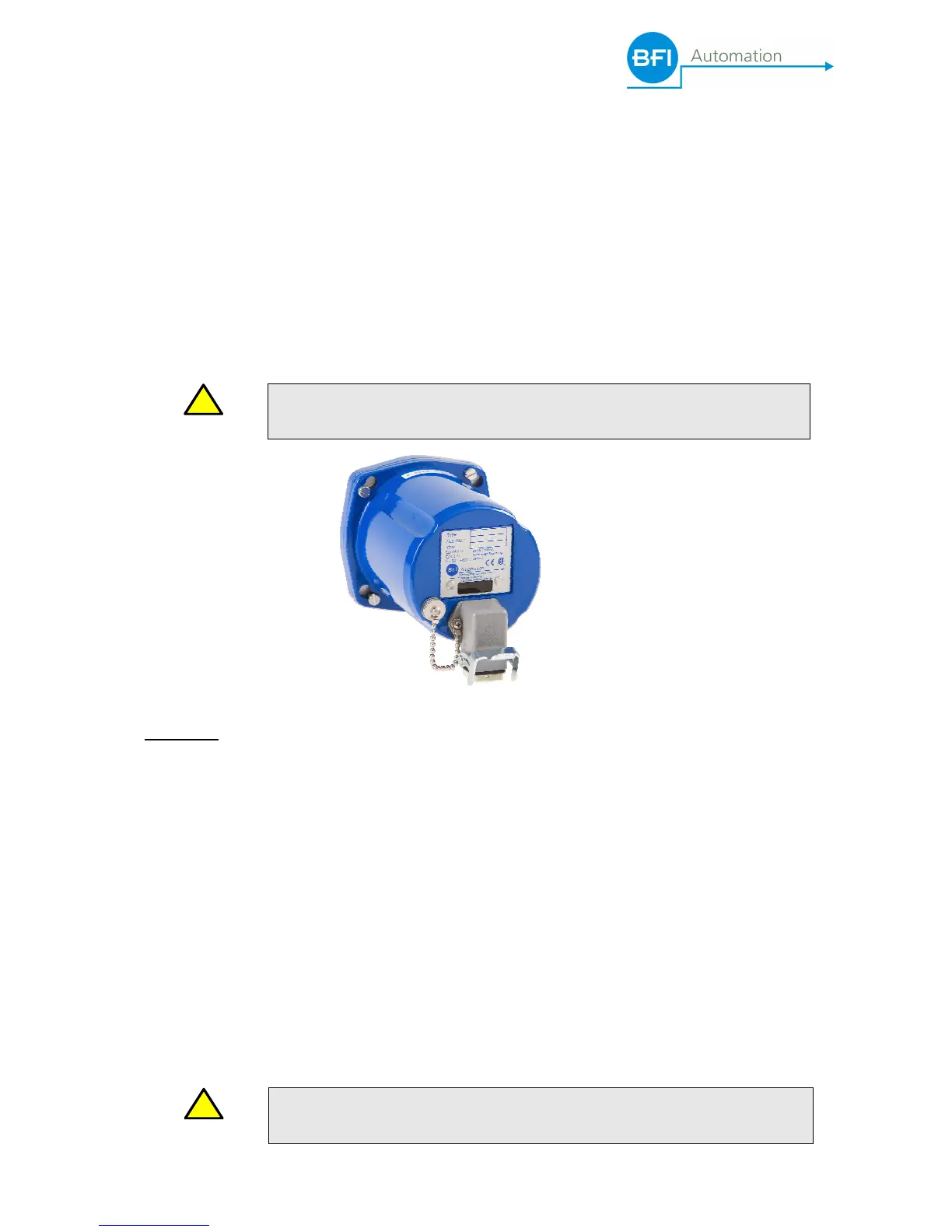

Compact flame controller
CFC 200
- Flame scanner with integrated flame controller
- TÜV approved, DIN-DVGW certified
- CFC 200 UV1 (formerly 8.0) : recommended for pure gas and oil/gas mixture fuels
- CFC 200 UV (formerly 8.30) : recommended for pure gas and oil/gas mixture fuels
- CFC 200 IR (formerly 8.40) : recommended for pure oil fuels in diffusion burners
- CFC 200 IR3 (formerly 8.70): recommended for gas fuels in radiant-surface burners
and for waste gases
- Adjustable sensitivity
- Analogue flame intensity output
- Optical state indication
- Non-wearing sensors
- Protection IP 65
!
WARNING
WARNING: IMPROPER INSTALLATION OF THESE PRODUCTS
MAY BE HAZARDOUS TO LIFE AND PROPERTY
Function
The integral method in the respective spectral range is used for the flame radiation analysis of the
compact flame controller.
After pre amplification, the unwanted portion of constant light is withdrawn from the output signal. The
subsequent sensitivity adjustment permits signal suppression for the adaptation to the respective
burner condition.
The subsequently connected band pass filter achieves that modulation of the typical flame radiation of
the primary combustion zone is evaluated only, and outside light signals from neighbouring burners
can be differentiated from the individual burner.
The further functional groups integrate the signal processing for the dynamic monitoring channel,
which, by means of a dark-phase monitoring, continuously checks the failure-safety of the unit.
A component defect leads to an immediate switch-off of the flame-relay, which is available as a poten-
tial-free changeover contact.
The switching state „flame on“ is displayed by a yellow LED on the rear side of the unit, just as the in-
tensity of flame, which is displayed by a flashing green LED.
A flame intensity output 0(4) - 20 mA can be used for external displays. The range can be selected by
jumper see drawing on page 3.
The safety switch-off time, which always depends on the fuels to be detected, is factory adjusted to 1
second. Longer switch-off times in acc. to local specifications available as option.
!
WARNING
WARNING:
The response of the scanner depends on burner configuration
as well as on the turbulence and spectral characteristics of the flames. Ap-
plication assistance is available on request
