desired button
01
erase 1
PRG.
read

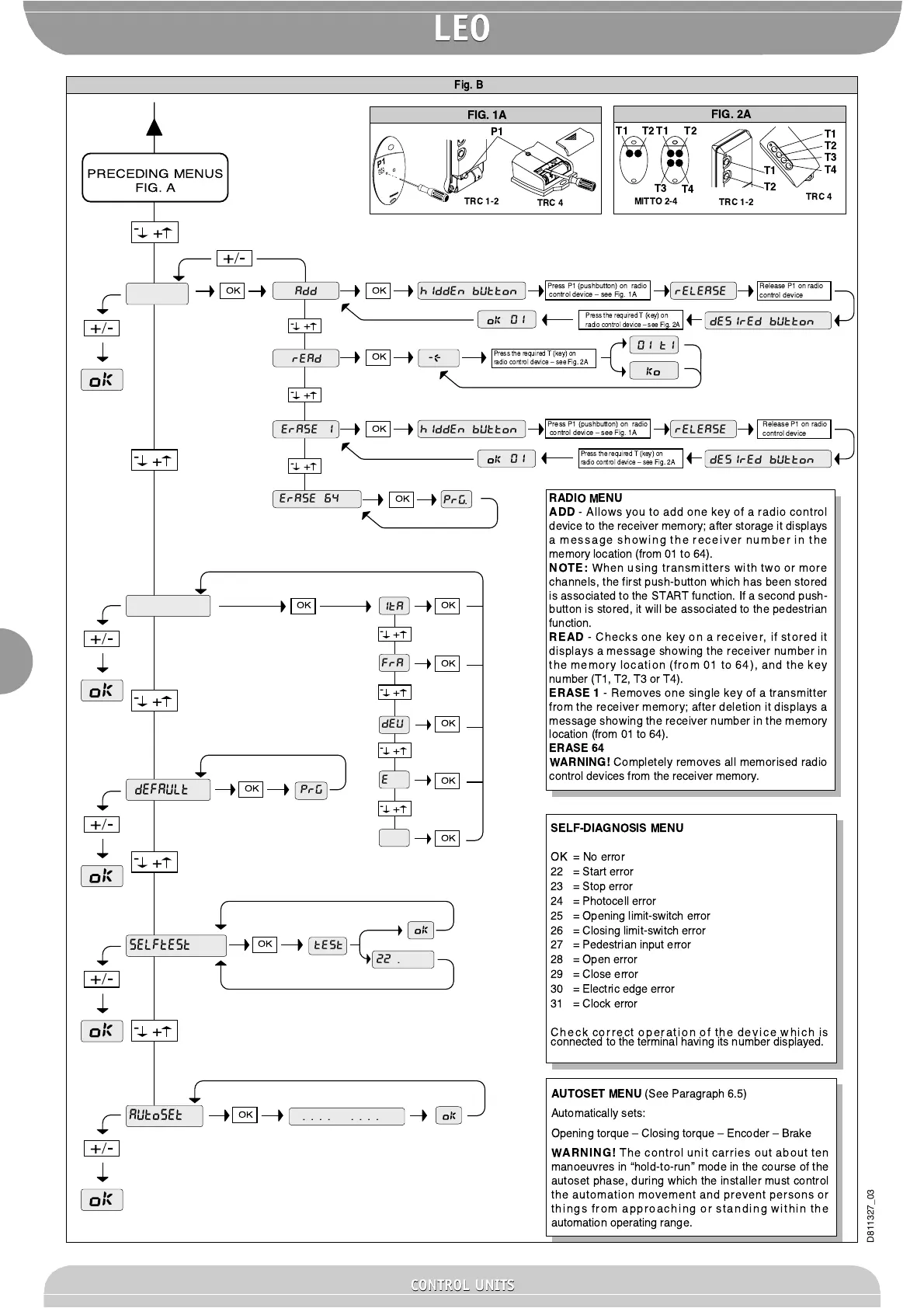

SELF-DIAGNOSIS MENU
OK = No error
22 = Start error
23 = Stop error
24 = Photocell error
25 = Opening limit-switch error
26 = Closing limit-switch error
27 = Pedestrian input error
28 = Open error
29 = Close error
30 = Electric edge error
31 = Clock error
Check correct operation of the device which is
connected to the terminal having its number displayed.
AUTOSET MENU
(See Paragraph 6.5)
Automatically sets:
Opening torque Ð Closing torque Ð Encoder Ð Brake
WARNING!
The control unit carries out about ten
manoeuvres in Òhold-to-runÓ mode in the course of the
autoset phase, during which the installer must control
the automation movement and prevent persons or
things from approaching or standing within the
automation operating range.
RADIO MENU
ADD
- Allows you to add one key of a radio control
device to the receiver memory; after storage it displays
a message showing the receiver number in the
memory location (from 01 to 64).
NOTE:
When using transmitters with two or more
channels, the first push-button which has been stored
is associated to the START function. If a second push-
button is stored, it will be associated to the pedestrian
function.
READ
- Checks one key on a receiver, if stored it
displays a message showing the receiver number in
the memory location (from 01 to 64), and the key
number (T1, T2, T3 or T4).
ERASE 1
- Removes one single key of a transmitter
from the receiver memory; after deletion it displays a
message showing the receiver number in the memory
location (from 01 to 64).
ERASE 64
WARNING!
Completely removes all memorised radio
control devices from the receiver memory.
ITA
01
FRA
DEU
ENG
esp
PRECEDING MENUS
FIG. A
OK
