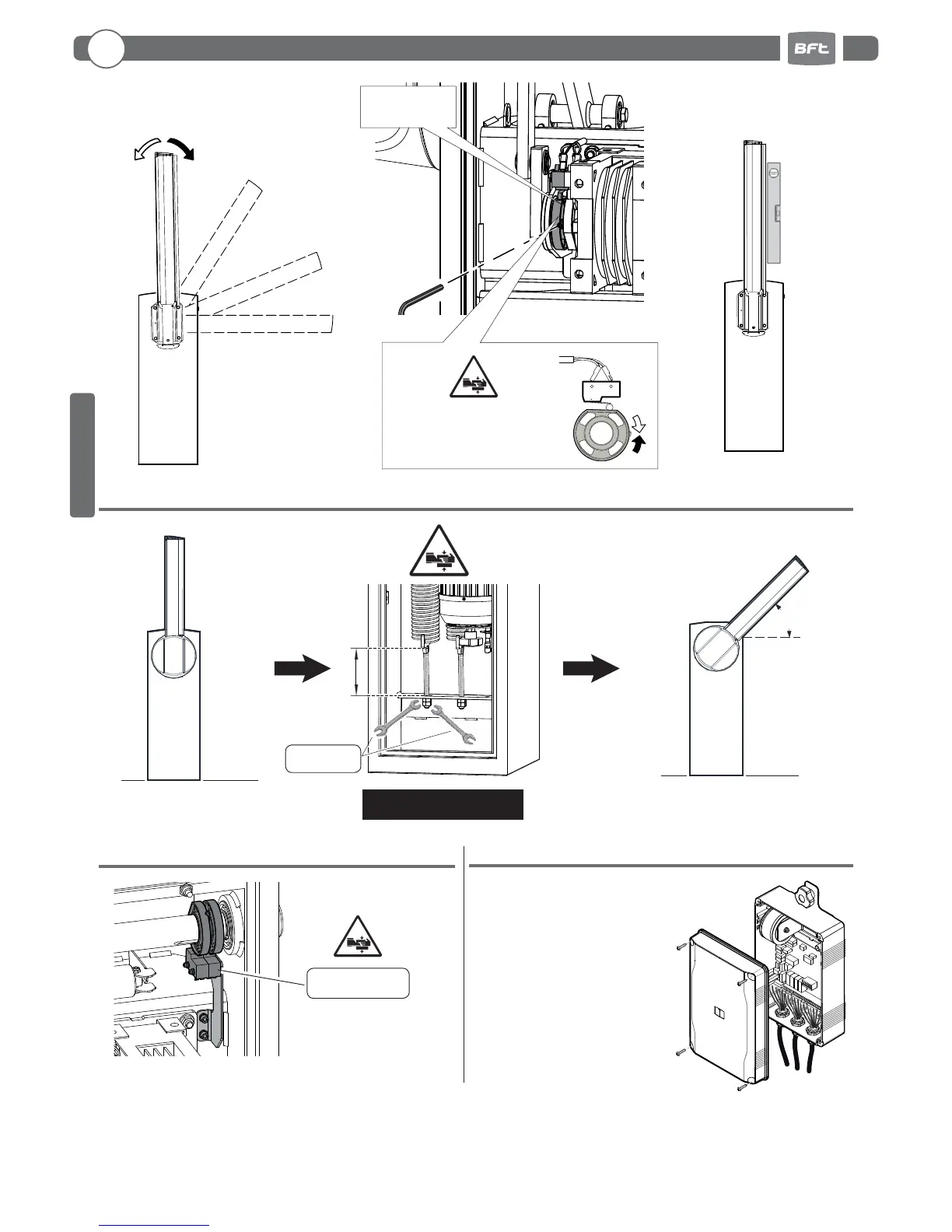

BFT Maxima Ultra 68 - Balancing the Arm; Optionals; Electrical Connections

- 14 -
ENGLISH
2.7 OPTIONALS
2.6 BALANCING THE ARM
ADDITIONAL
LIMIT SWITCH
2.8 ELECTRICAL CONNECTIONS
Consult the control unit’s installation
and operating manual
CSB-Xtreme
Check that the arm is
balanced at ~45°
Put the bar
in a vertical position.
19mm
45°
Give the “START” command to position
the arm holder vertically
3 mm
TO SET THE BOOM IN VERTICAL
POSITION ADJUST THE OPEN LIMIT
SWITCH CAM.
Check that the bar is
in vertical position
Opening
microswitch cam
For the “A” value see
TAB.1 page 34
A
2. Installation
EN
