BFT VISTA-SL Series User Manual

ITALIANO ENGLISH
FRANÇAIS
DEUTSCH
ESPAÑOL
NEDERLANDS
D
E
-7,5
+7,5
-8
+8
166
155
40,5
31
102.5
147
33
HT=147mm
HFP=129,5 mm
=Altezza di ssaggio della traversa
=Crosspiece fastening height
=Hauteur de xation de l’entretoise
=Befestigungshöhe der Querstrebe
=Altura de jación del travesaño
=Bevestigingshoogte van de dwarsdrager.
=Spazio fra pavimento ed anta mobile
=Space between oor and moving door
=Espace libre entre le sol et le vantail mobile
=Raum zwischen Boden und Tür
=Espacio entre el piso y la hoja móvil
=Ruimte tussenvloer en beweegbare vleugel
=Altezza dell'anta nita
=Finished door height
=Hauteur du vantail ni
=Höhe der fertigen Tür
=Altura de la hoja lista
=Hoogte van de voltooide vleugel
=Altezza della traversa VISTA SL
=VISTA SL crosspiece height
=Hauteur de l’entretoise VISTA SL
=Höhe der Querstrebe VISTA SL
=Altura del travesaño VISTA SL
=Hoogte van de dwarsdrager VISTA SL
HFT
HGP
HFP
=Altezza di ssaggio prolo WMP,
=WMP prole fastening height,
=Hauteur de xation WMP,
=Befestigungshöhe Prol WMP,
=Altura de jación perl WMP,
= Bevestigingshoogte proel WMP.
HA
HT
HA= HFT - HGP - HT
HFT= HGP + HA + HFP
Pf
Am
HT
HT
HFP
HA
HFT
HGP

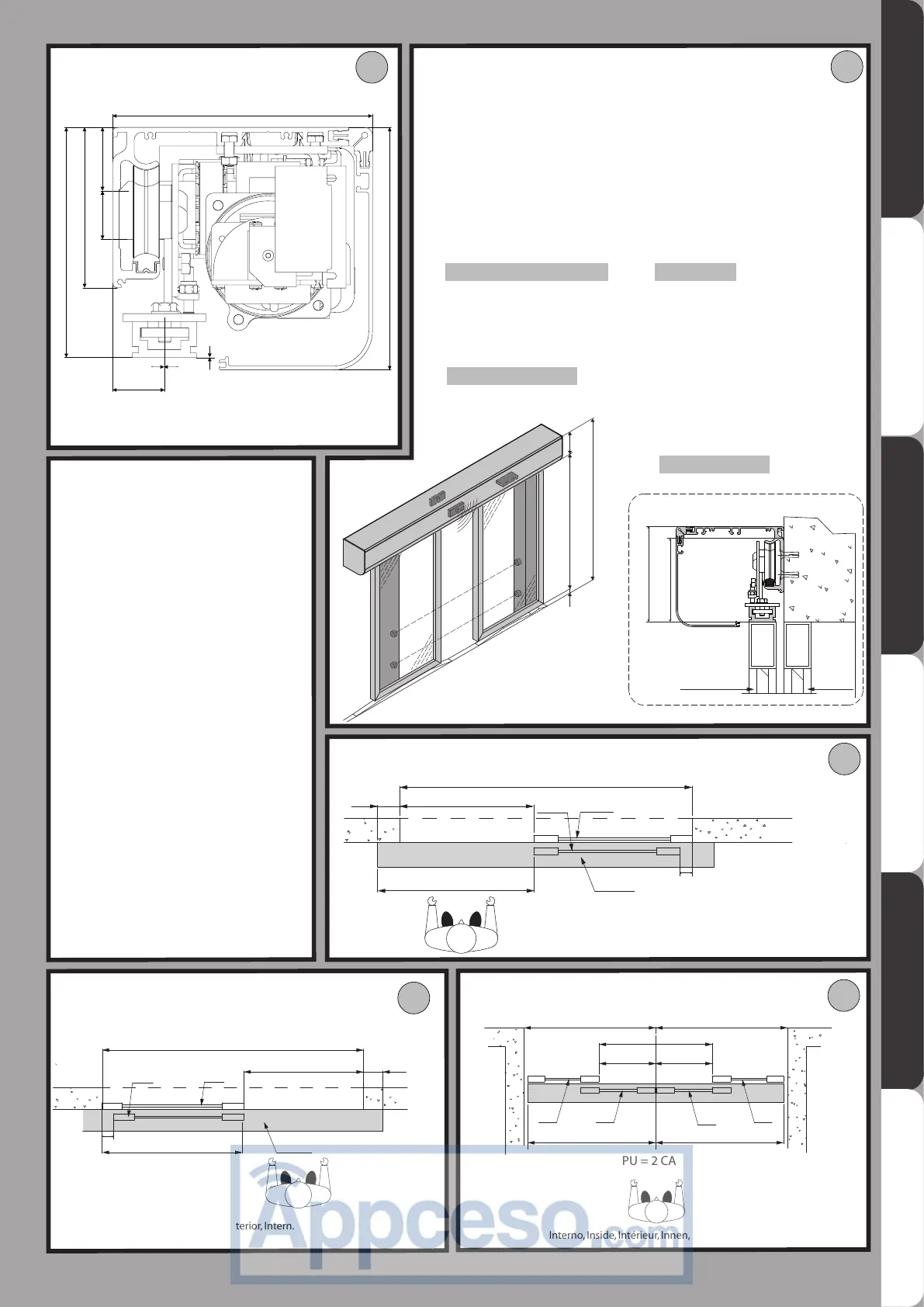

DETERMINAZIONE DELL’ALTEZZA DI FISSAGGIO DELLA TRAVERSA,
DETERMINING HEADER FASTENING HEIGHT,
ÉTABLISSEMENT D ELA HAUTEUR DE FIXATION DE L’ENTRETOISE,
BESTIMMUNG DER BEFESTIGUNGSHÖHE DER QUERSTREBE,
DETERMINACIÓN DE LA ALTURA DE FIJACIÓN DEL TRAVESAÑO,
BEPALING VAN DE BEVESTIGINGSHOOGTE VAN DE DWARSDRAGER.
G
F
H
VP
50
PU
CA = PU + S
S
Pf
Am
CA
VISTA
PU = CA - S
1/2 VP
PU
CA
Pf
Am
Am
Pf
CA
1/2 VP
1/2 VISTA 1/2 VISTA
PU = 2 CA
Denizione, Denition, Dénition,
Denition, Denicion, Denitie.
Pf
= Parte fissa
= Fixed part
= Partie fixe
= Feste Seite
= Parte fija
= Vast deel
Am
= Anta mobile
= Mobile leaf
= Vantail mobile
= Beweglicher Flügel
= Hoja móvil
= Beweegbare Vleugel
VP
= Vano Passaggio
= Passage space
= Baie de passage
= Durchgangsbreite
= Vano pasaje
= Doorgangsbreedte
TSPEI
= Vite Testa Piana Svasata Esagono Incassato
= Flat countersunk head screw
= Vis à tête plate évasée
= Senkschrauben benutzen
= Tornillo de cabeza avellanada hexágono
encajonado
= Schroef met Platte Verzonken kop met Binnenze-
skant
TE
= Vite Testa Esagono
= Hexagonal head screw
= Vis à tête hexagonale
= Sechskantige Schraube
= Tornillo de cabeza hexágono
= Schroef met Zeskantkop
VP
50
PU S
Pf
Am
CA
VISTA
PU = CA - S
PU
= Passaggio Utile
= Usable passage space
= Passage utile
= Nutzdurchgang
= Pasaje útil
= Nuttige Doorgang
S
= Sormonto
= Overlap
= Superposition
= Überschneidung
= Sobreposición
= Overlapping
CA
= Corsa utile Anta
= Leaf stroke
= Course utile du vantail
= Nutzbarer Türlauf
= Carrera útil de la hoja
= Nuttige Slag Vleugel
Esterno, Outside, Extérieur, Außen, Exterior, Extern.
Esterno, Outside, Extérieur, Außen, Exterior, Extern.
Interno, Inside, Intérieur, Innen, Interior, Intern.
Interno, Inside, Intérieur, Innen, Interior, Intern.
Interno, Inside, Intérieur,
Innen, Interior, Intern.
Vista SL 107 - 125: Destra, Right, Droitea, Rechts, Derecha, Rechts.
Vista SL 107 - 125: Sinistra, Left, Gauche, links, Izquierda, Links. Vista SL 208 - 229
Esterno, Outside, Extérieur,
Außen, Exterior, Extern.
D812131 00100_02
VISTA-SL (ARIA-EVO) - 3
