Installation and User Guide
SyncEV Charger | EVT77G.202205.NH www.syncev.co.uk
1
3
2
4
130mm
Cable
entry
95mm

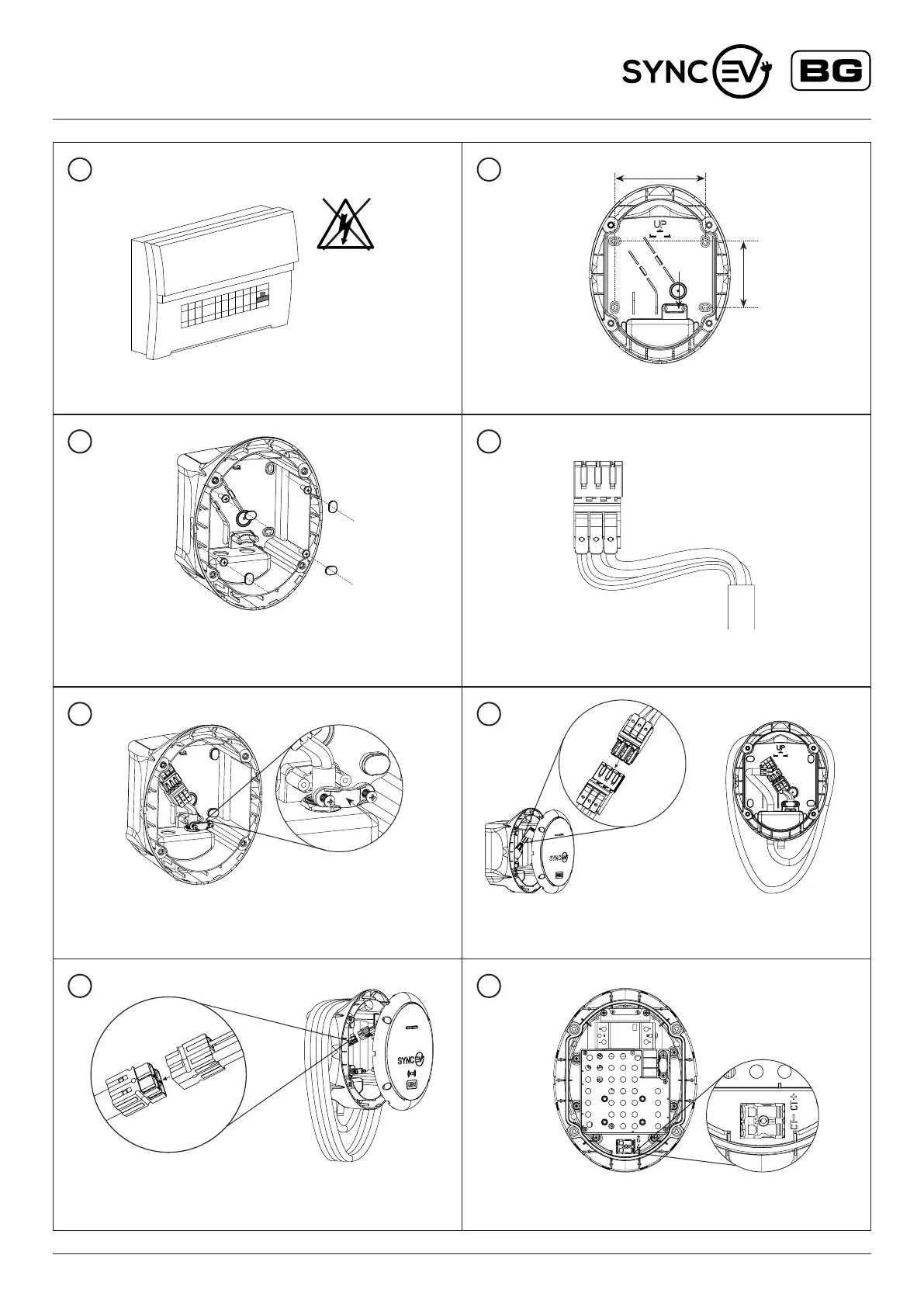

Ensure the supplied caps are tted over installation
screws to maintain IP rating
Ensure supplied cord grip is tted on incoming power
cable if using bottom cable entry location
Ensure 3-pole power connector is fully inserted,
then clip power connector into the base
Ensure 4-pole output connector is fully inserted,
then tuck into the base on the left side
Use included hole template to drill xing holes
Ensure correct polarity when making
incoming power connections
LEN
5
7
6
8
For dynamic load balancing, ensure connections are made
in correct polarity to CT+ and CT– terminals
