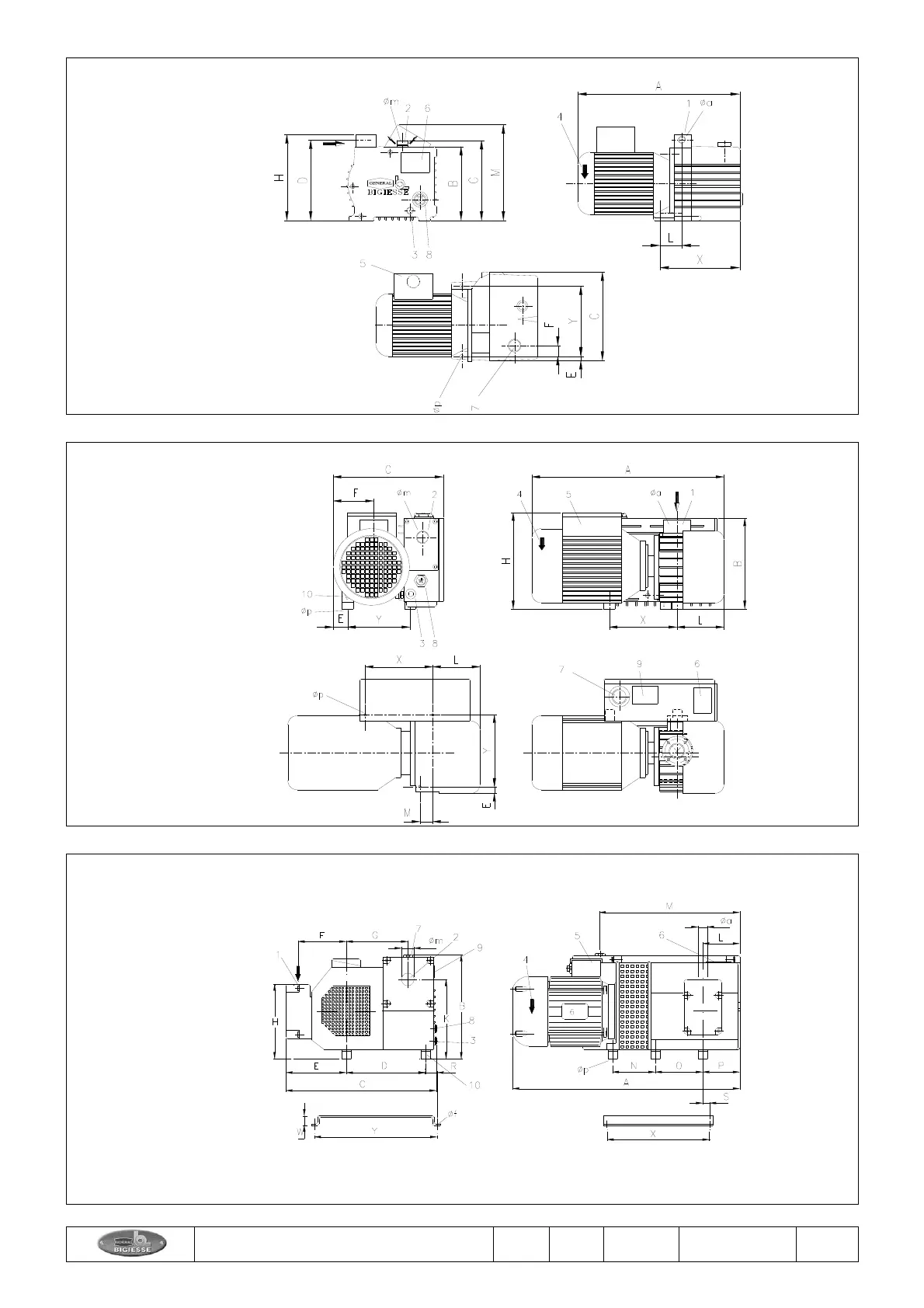

POMPE PER VUOTO LUBRIFICATE PBO – PBOM
OIL LUBRICATED VACUUM PUMPS PBO - PBOM
ED. 4
REV.0
05.2009
COD.564000100
26 di 31
12 PBO-PBOM
(mm)
A
344
B
143
C
172
D
156
E
10
F
21
G
165
H
167
L
36
M
185
Øa
3/8”
Øp
7
X
149
Y
138
28 PBO-PBOM
(mm)
A
420
B
205
C
255
E
25
F
90
H
220
L
110
M
28
Øa
1“G
Øm
3/4“G
Øp
M6
X
145
40 PBO-PBOM
(mm)
A
585
B
285
C
395
D
210
E
150
F
122
G
165
H
220
K
215
L
145
M
365
N
114
O
77
P
140
R
50
S
30
Øa
1“ G
Øm
1“ G
Øf
9
X
209
Y
317
W
30
