POMPE PER VUOTO LUBRIFICATE PBO – PBOM
OIL LUBRICATED VACUUM PUMPS PBO - PBOM
ED. 4
REV.0
05.2009
COD.564000100
28 di 31

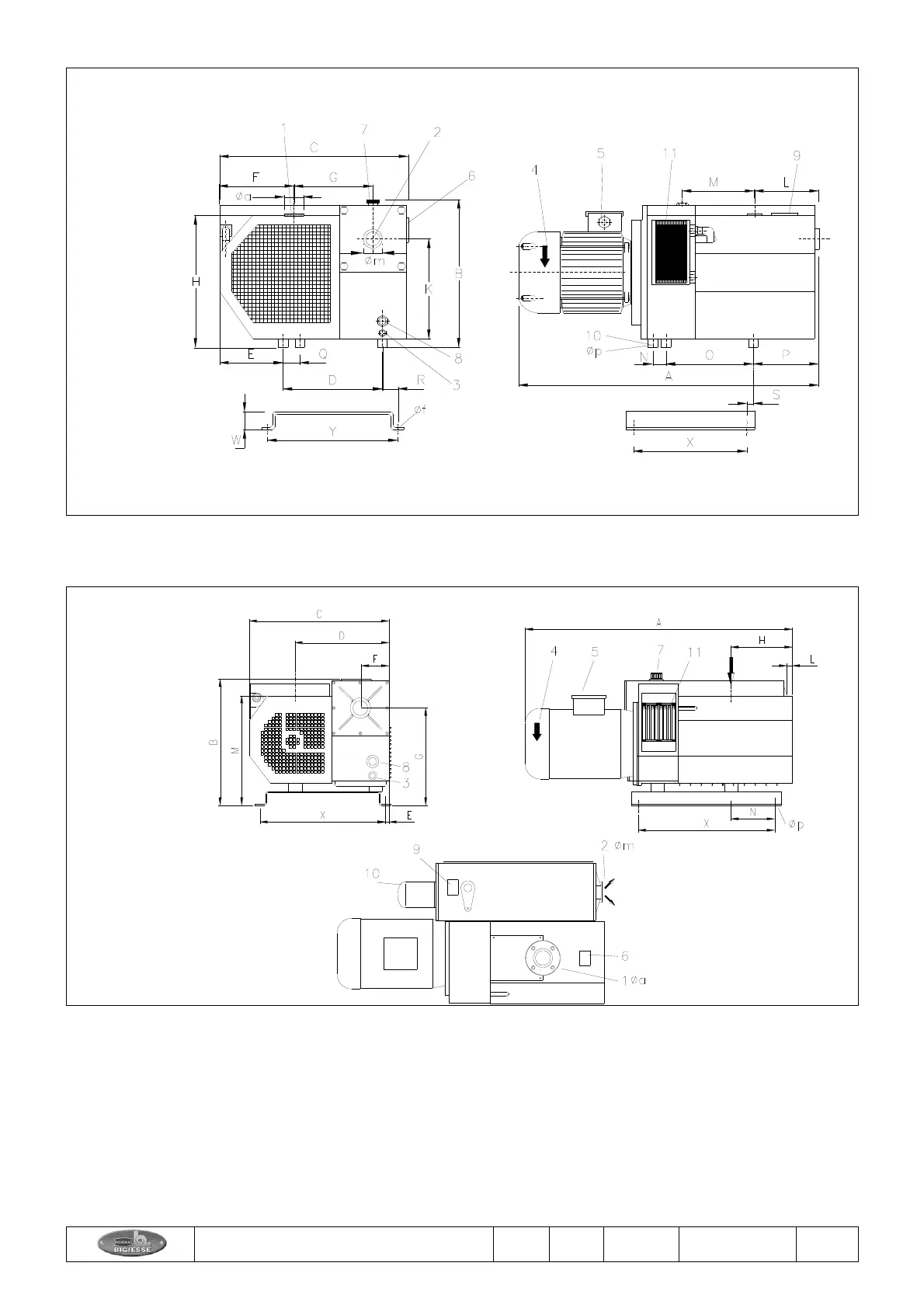

220 PBO-PBOM
(mm)
A
820
B
425
C
525
D
295
E
167
F
165
G
240
H
360
K
312
L
225
M
270
N
5
O
220
P
220
Q
15
R
37
S
10
Øa
2”G
Øm
2”G
Øf
12
X
180
Y
460
