MOUNTING

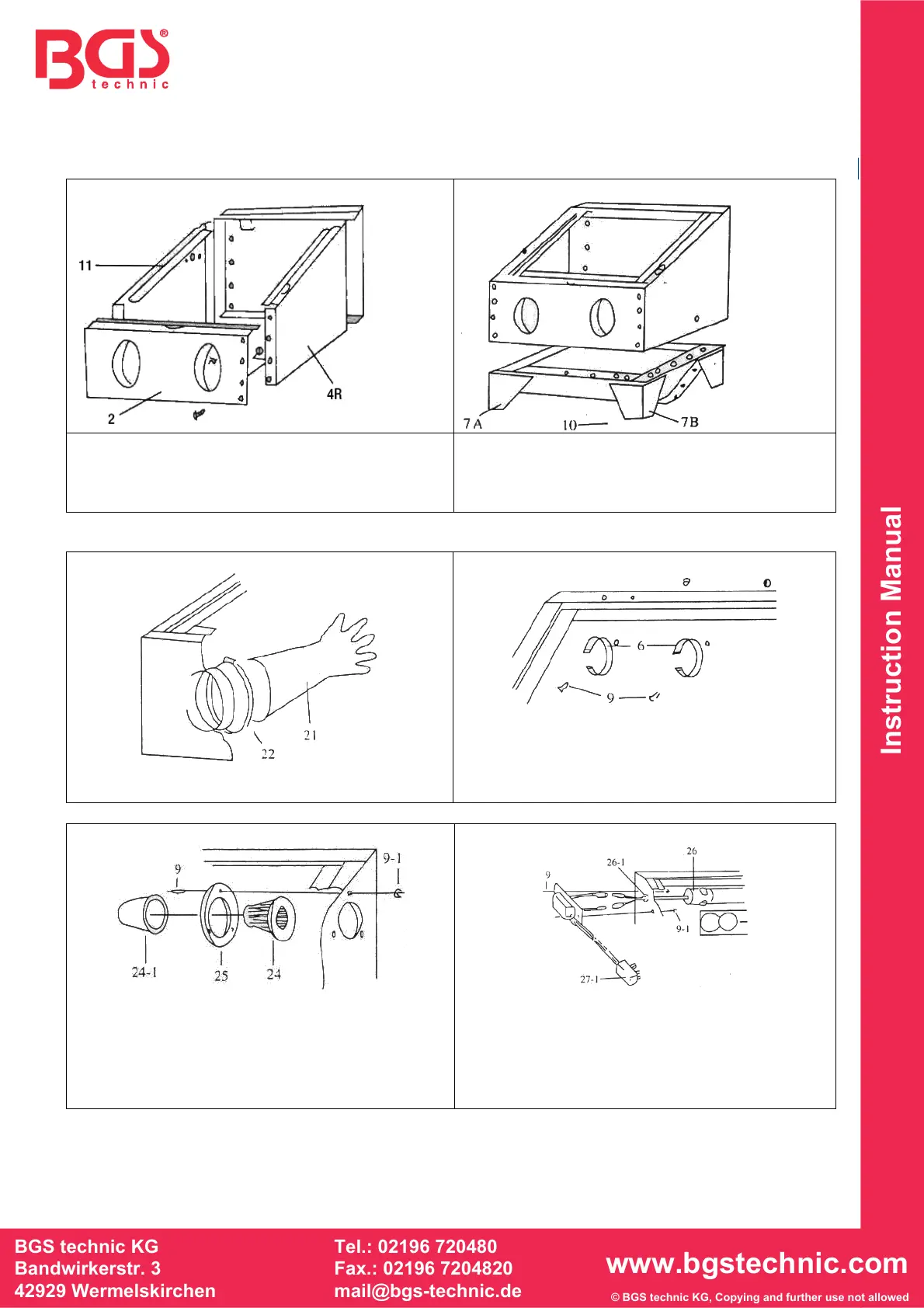

Step1
Step2
Connect front panel (2), rear panel (3), right
panel (4R), left panel (4L) and screw up all of the
screws.
Connect the base to the four legs (7A) and (7B)
Then put screen (23) in the cabinet.
Step3
Step4
Secure the glove (21) with the gloves clamp (22)
onto the front panel as illustrated.
Connect the lamp clamp as illustrated.
Step5
Step6
Assemble the filter. Push the fluorescent lamp (26) forward into the
lamp clamp (6). Then put the electric cord
outside the hole through (4L). Use screw nut
whitch is enclosed in the cord to secure.
Then combinet with the circuid inside the wire
connection and screw up tight at left panel.
