15

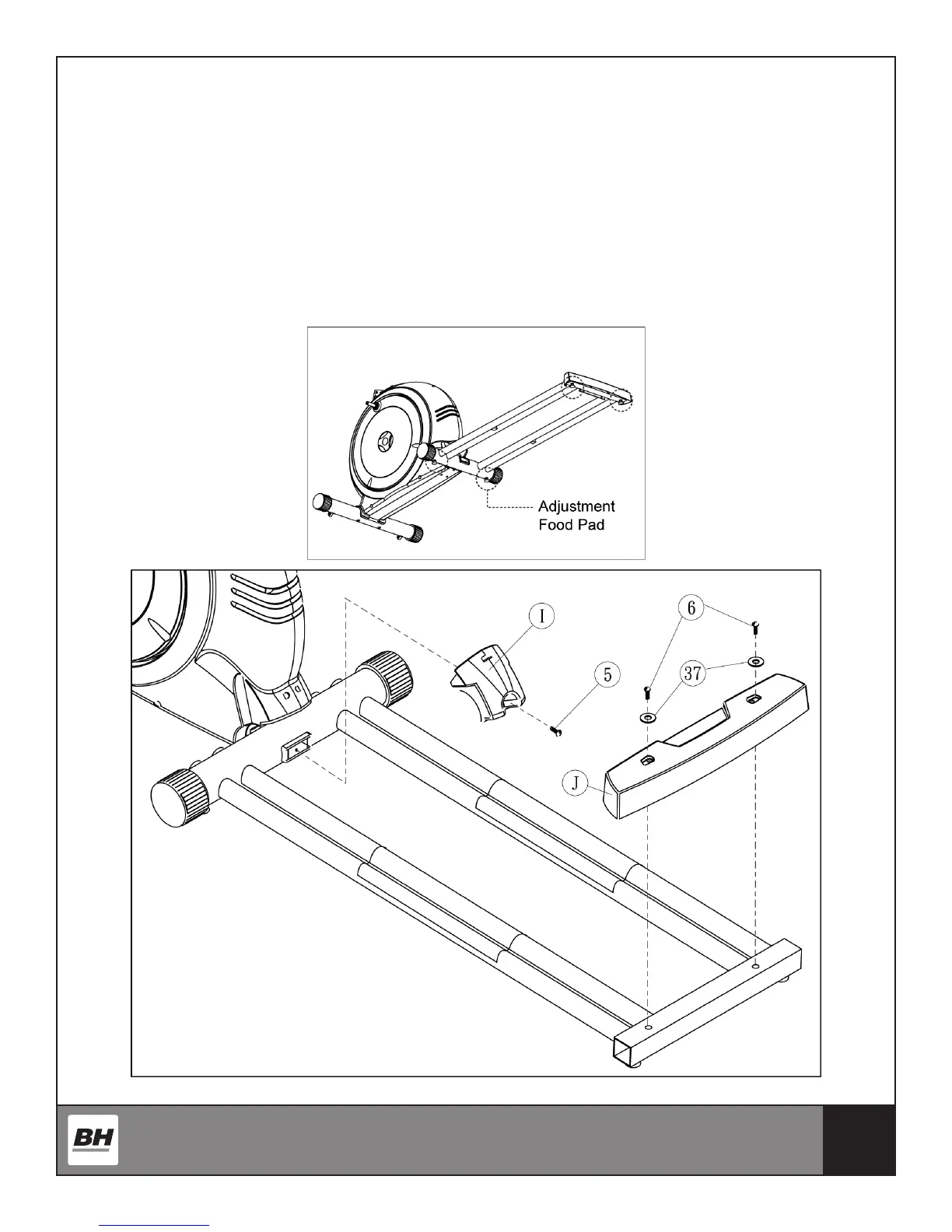

STEP 3
Put the Middle Cover (I) between the stabilizer assembly and tighten with Screws (5). en
attach the Rear Stabilizer Cover (J) and tighten with Screws (6), and Flat Washer (37).
Attention:
While assembling the middle cover of the frame, make sure it's ush and there is nothing
blocking the middle cover and iron tube.
After assembly, make sure that the middle and rear of the unit is at on the ground and tighten
the blots completely.
