BH LK500E - Page 19

19

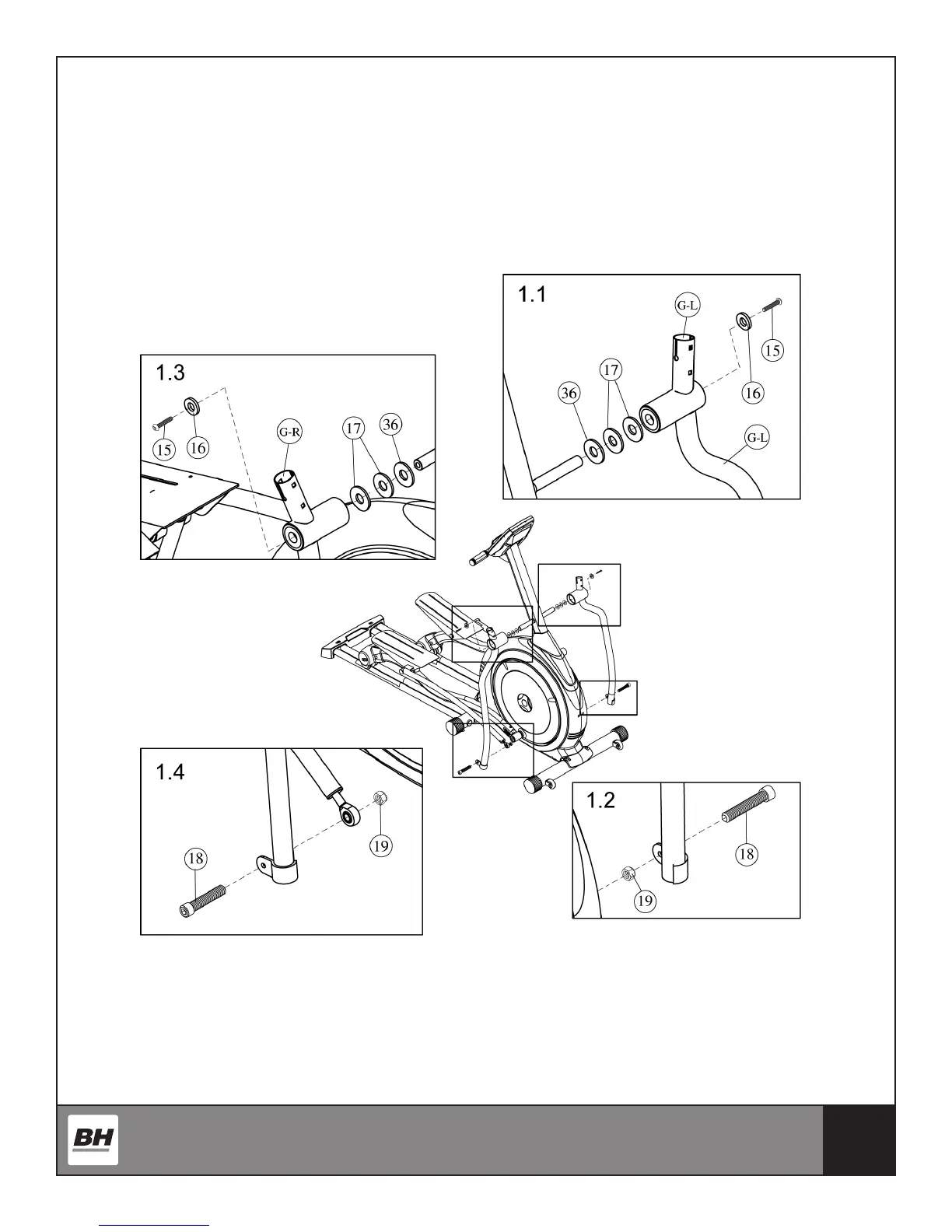

STEP 7
Attach the left Arm (G-L) to the upper control tube with Screws (15, 16), Washer (36), and
Wave Washer (17). en attach the Arm (G-L) to the crank arms with Screws (18, 19), Washer
(36) and Wave Washer (17). Repeat for the right Arm (G-R).

