BHI NES10-2 - Nes10-2; 2.1 Controls

Page 8
Serial No.
NES10-2 Noise Eliminating Speaker
Filter
Select
SW1 SW2 SW3 Level
On On On 1
On On Off 2
On Off On 3
On Off Off 4
Off On On 5
Off On Off 6
Off Off On 7
Off Off Off 8
On
Off
Audio Input
PO Box 136
Bexhill on Sea
East Sussex
TN39 3WD
England
Tel: + 44 (0)8702407258
DC Power
12-24V DC
Noise Cancellation
Off On
Volume
DIP Switch
DC Power in Socket
centre pin +Ve
Sensitivity Control
Noise Cancellation
On/Off Switch
Noise Cancellation Selection Table
Audio Input Lead
2.1 Controls
2. NES10-2
LED
Headphone
socket
Power/Audio
Bypass

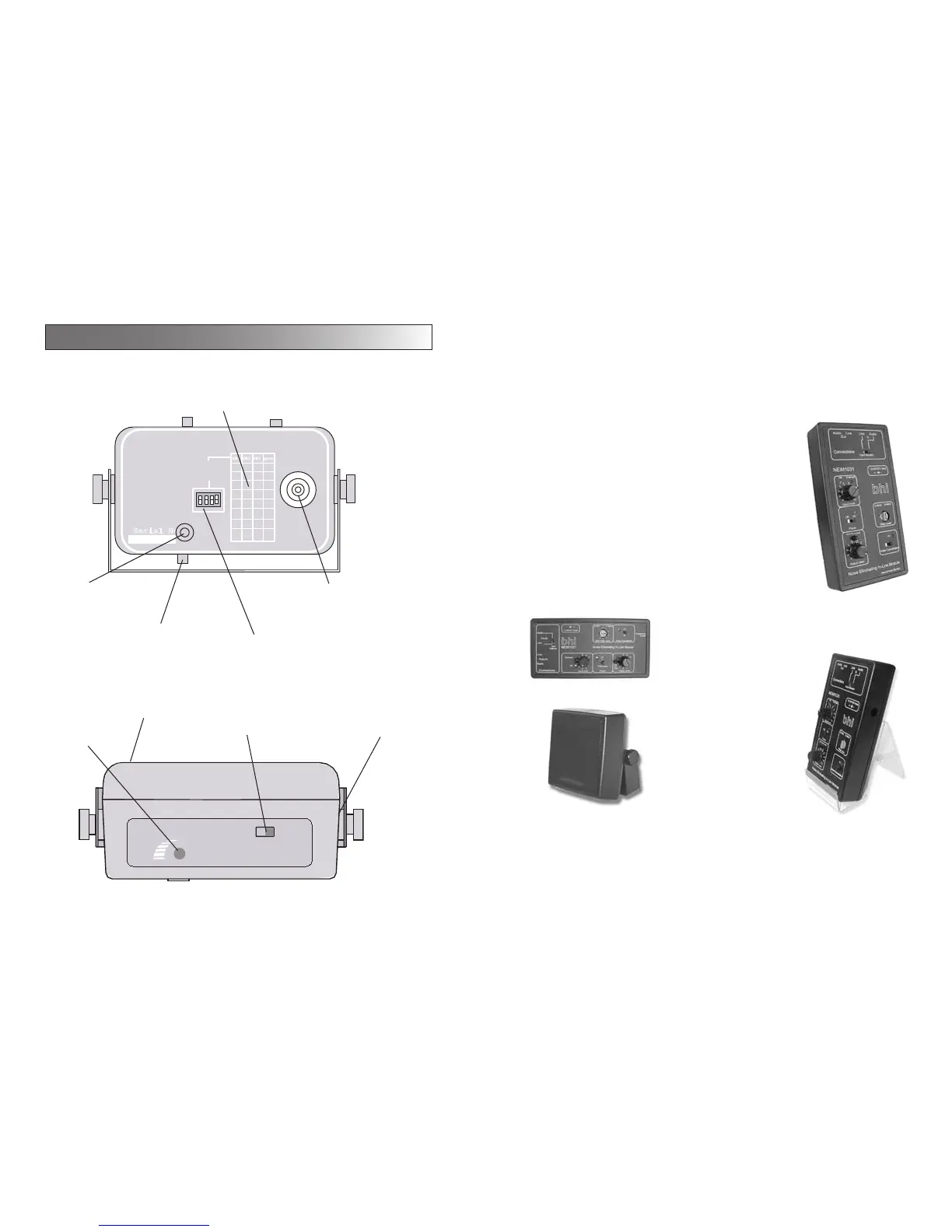

Figure 3. NES10-2 Controls
bhi
Page 25
Other products avaialble from bhi.
In-line module.
Order code: NEIM1031
The NEIM1031 In-line module uses the same DSP technology found
in the NES10-2 and NES5 speakers, but has the following additional
features:
 Noise cancellation 9 - 35dB
 Audio input/output
 Line level input/output
 Output volume control
 Input level control with LED
 Power on/off with LED
 Input selector switch
 Noise cancellation On/off with LED
Accessories for the NEIM1031
20 Watt Extension
speaker
Order code:LSPKR
Teminated with 3.5mm mono
plug
NEIM1031 mounting Stand.
Order code: 1031-STA
A stand for the NEIM1031.
Holds the module in the optimum
postion.
Horizontal conversion label
Order code:1031-108D
This label changes the
orientation of the NEIM1031
to landscape.
