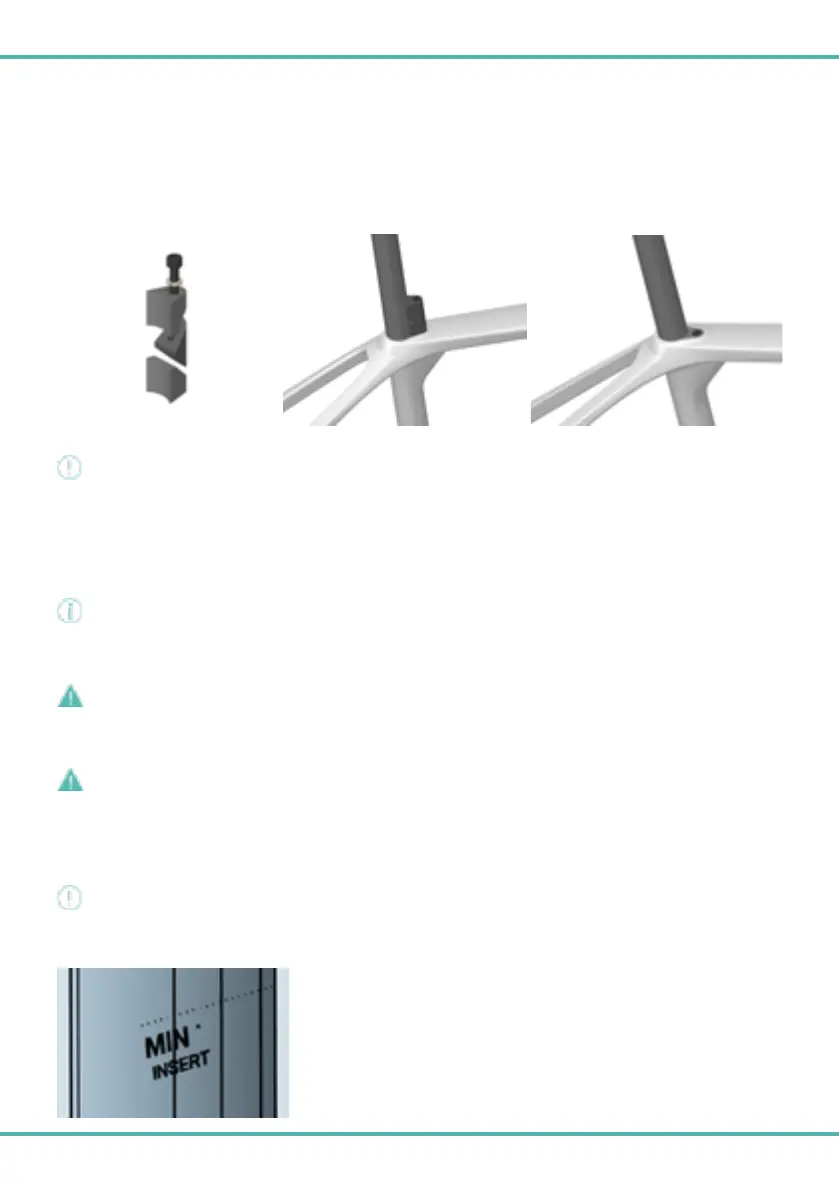

Seat post clamp/expander block
The clamp/expander block provided is a specific component for the Arcadex frames. Without it the seat post cannot be locked in the
desired position (image 1D).
Carefully follow the warnings set out below. Failure to comply with the warnings and instructions of this leaflet exempts the manu-
facturer from any liability.
To change the saddle height, loosen the M5 screw on the clamp/expander block and adjust the height of the saddle post.
1D
WARNING!
Do not pull, move or adjust the seat post (for example to adjust the saddle height) without first loosening the tightening screw of the
clamp/expander block!
Once the desired saddle height has been set, tighten the M5 screw according to the recommended clamp block/expander torque of
6Nm.
INFORMATION/NOTE!
To ensure a better grip and better fixing of the seat post tube in the frame, we recommend applying a layer of gripping paste on the
part of the expander that is in contact with the seat post. (the gripping paste is supplied with the product).
DANGER!
The clamp block is equipped with an M5x35 mm screw, please only use the indicated screw. Using a different screw can compromise
the tightness of the seat post/expander clamp block, resulting in the seat post suddenly lowering and in possible falls.
DANGER!
Use the tightening torque specified on the clamp/expander block. Incorrectly performed tightening can cause the component to
malfunction and consequently lead to falls!
Seatpost
WARNING!
When pulling out the seatpost, do not exceed the safety limit marked on the seatpost. (image 1E)
1E
12
