6
“Thru-axle” passing pins
WARNING!
Please be very careful and observe the following warnings.
The supplied thru-axle pins, as opposed to 'quick release' locks, are screwed directly onto the frame and fork dropouts, with an M12
thread. Observe the tightening torques indicated on the pins.

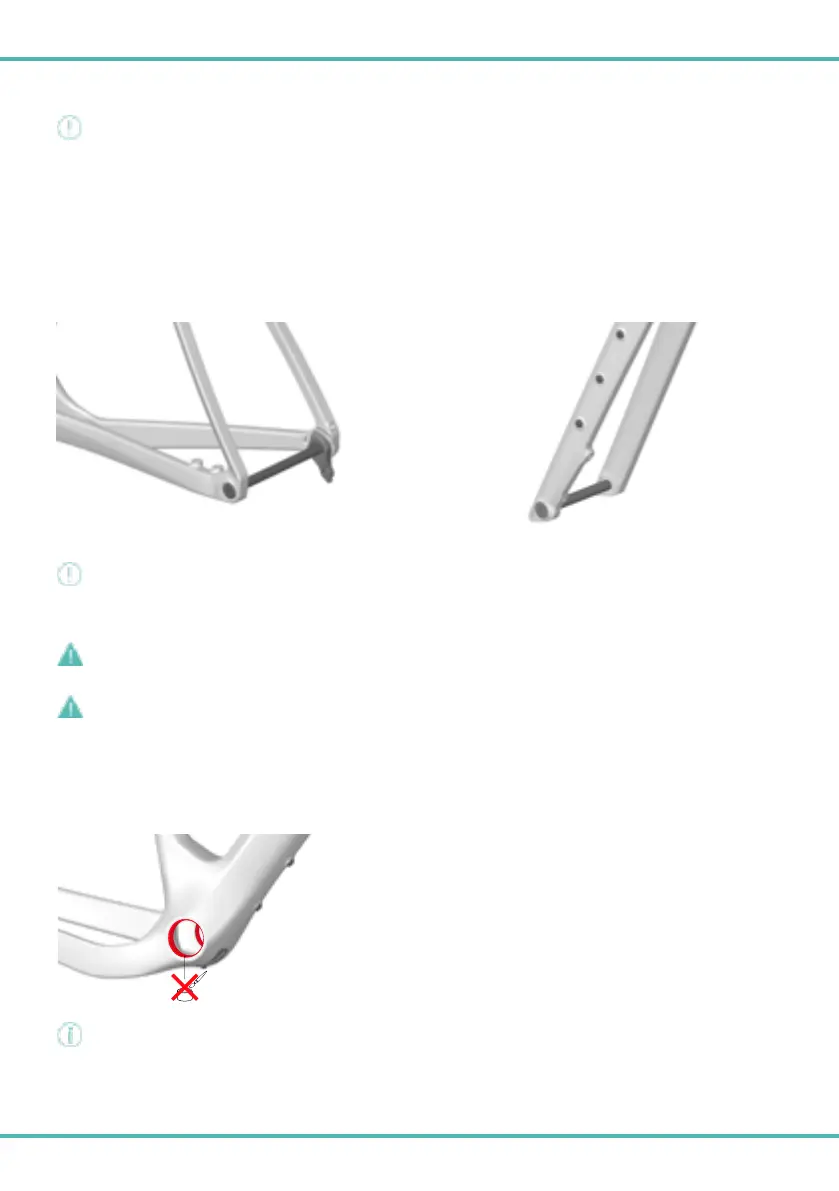

Female threads are housed in the frame and fork; it follows that the thru-axle pin with male thread has a specific length so that the
wheels can be assembled safely. (Images 1B and 1C)
The use of a different axle from the one supplied may result in incorrect assembly of the wheel and compromise the integrity of the
frame and fork.
1B 1C
WARNING!
Observe and use the through-bolt pins supplied with the product. The use of through-bolt pins other than those specified may cause
the frame and/or fork to break.
DANGER!
Incorrectly fitted wheels can cause falls and serious accidents. If in doubt, contact your specialist dealer
DANGER!
Observe the tightening torque specified on the through-bolts pins. Never exceed the maximum tightening torque specified. Incorrect
tightening may damage the frame and fork
ARCADEX frame bottom bracket shell
The bottom bracket shell adopts the Press-Fit 86.5x41mm standard.
INFORMATION/NOTE!
More and more new and innovative components and features are being designed.
To find out about compatibility with component-transmission lines (drive-units) other than those originally assembled on the Bianchi
frame, or to receive information and indications of any specific components required for assembling the product or upgrading it,
please contact your specialised Bianchi dealer.
Non ingrassare
