AREOFLARE integrated handlebar
The AEROFLARE integrated handlebar is a component, made for the ARCADEX frame, designed for perfect integration between frame,
headset and handlebars.
The Arcadex frame uses the ICR headset system from Acros for total integration of the cables within the handlebar and frame. The
handlebar has a design that allows perfect integration with the headset.
Any assembly, maintenance or disassembly work on the handlebar must be carried out ONLY by a specialised dealer.
NEVER perform any work on the handlebar. Such work requires specific technical knowledge, special tools and well defined expertise
and may be carried out ONLY by your specialist dealer.
Adjusting the handlebar height to suit your needs requires experience, suitable tools and manual dexterity. You should therefore leave
all adjustment work to your specialist dealer.
The handlebar stem is secured to the fork by means of two screws placed on the side of the handlebar and a tapered nut; the screws
have a length of M5x22 mm.
The tightening torque of the screws is 5-6 Nm
W
OB

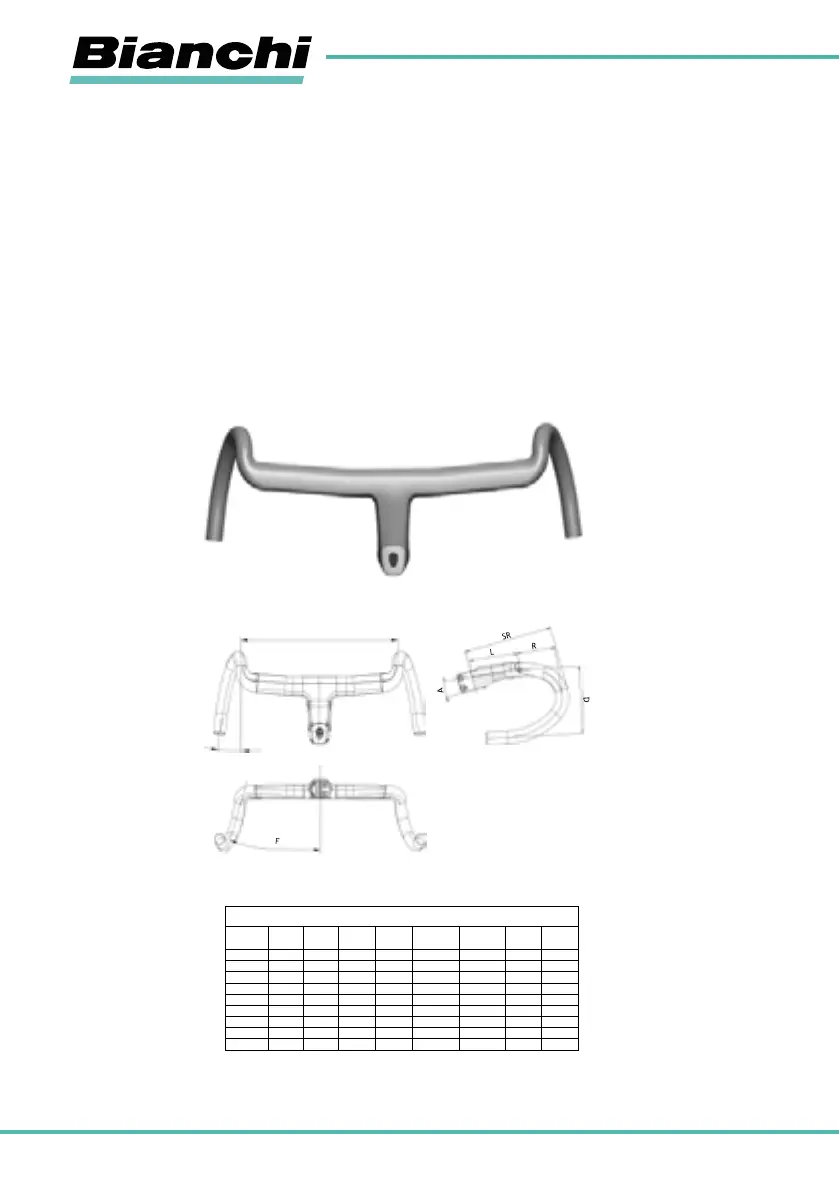

AeroFlare Integrated Handlebar (C2306226)
Size
Width
(W)
Lenght
(L)
Reach
(R)
Drop
(D)
Stem/HB
reach (SR)
Outward
bend (OB)
Flare
(F)
Angle
(A)
90x400
400
90
72,6
119,3
167
6,8°
16°
-7°
90x420
420
90
72,6
119,3
167
6,8°
16°
-7°
100x400
400
100
72,6
119,3
177
6,8°
16°
-7°
100x420
420
100
72,6
119,3
177
6,8°
16°
-7°
110x400
400
110
72,6
119,3
187
6,8°
16°
-7°
110x420
420
110
72,6
119,3
187
6,8°
16°
-7°
110x440
440
110
72,6
119,3
187
6,8°
16°
-7°
120x420
420
120
72,6
119,3
197
6,8°
16°
-7°
120x440
440
120
72,6
119,3
197
6,8°
16°
-7°
9
