SUPER VAPOR PLUS/MAGIC VAPOR
4. TECHNICAL DATA
BF072
"SUPER VAPOR PLUS"
BF073
"SUPER VAPOR PLUS"
BF005
"MAGIC VAPOR"
BF002
"MAGIC VAPOR"
Power supply 220/230V 50/60H 220/230V 50/60H 220/230V 50/60H 220/230V 50/60H
Boiler capacity 2,4 Lt 2,4 Lt 2,4 Lt 2,4 Lt
Boiler rell Manual Manual Manual Manual
Boiler power 900W 900W 1300W 1300W
Boiler pressure 3 bar 3 bar 5 bar 5 bar
Iron power 850W 850W 850W 850W
Colour White St. Steel White St. Steel
Weight 6,5 Kg 6,5 Kg 30 Kg 23 Kg
Dimensions 24,5×36,5xh22 cm 24,5×36,5xh22 cm 25x36xh30 cm 25x36xh30 cm
5. MACHINE DESCRIPTION
The system consists of a steam generator and a professional iron. For the ironing, in accordance with the
model, it is possible to include a steam generator with an automac relling system. Along with all BIEFFE
steam generators, the boiler is made of copper, the heaters are placed outside the boiler so that they are not
immersed in water, allowing to get rid of wear issues and reducing signicantly waing mes saving electri-
city. The best tools on the market as thermostat, pressure switch, safety valve and pressure gauge, check for
the correct funconing of the system automacally.
Before the use we recommend to read carefully all the informaon related to the model in your possession.
Data, descripons and illustraons in the following leaet are not binding. BIEFFE reserves the right to make
any necessary modicaons.
6. REGULAR MAINTENANCE: EMPTYING/CLEANING OF THE BOILER
ATTENTION: BEFORE DRAINING THE WATER FROM THE BOILER, UNPLUG THE MACHINE AND UNSCREW
BY HALF A TURN THE SACURITY TAP TO RELEASE THE REMAINING PRESSURE AND HEATH FROM THE
BOILER.
» Wait for the boiler to be cool and the pressure gauge to show “0”, open carefully the sacurity tap a
turn upside down the steam generator to let the water out. Do this operaon on a sink or another water
container.
» To carry out an extraordinary cleaning, pour into the boiler a glass of vinegar and water. Then shake
the steam generator and empty the boiler and rinse with only water. Do not use any an-limescale pro-
duct.
THIS OPERATION MUST BE DONE DEPENDING ON THE USE OF THE MACHINE, AT LEAST ONCE A MON-
TH. IF NOT, THE GUARANTEE WILL DECAY.
7. USABLE WATER

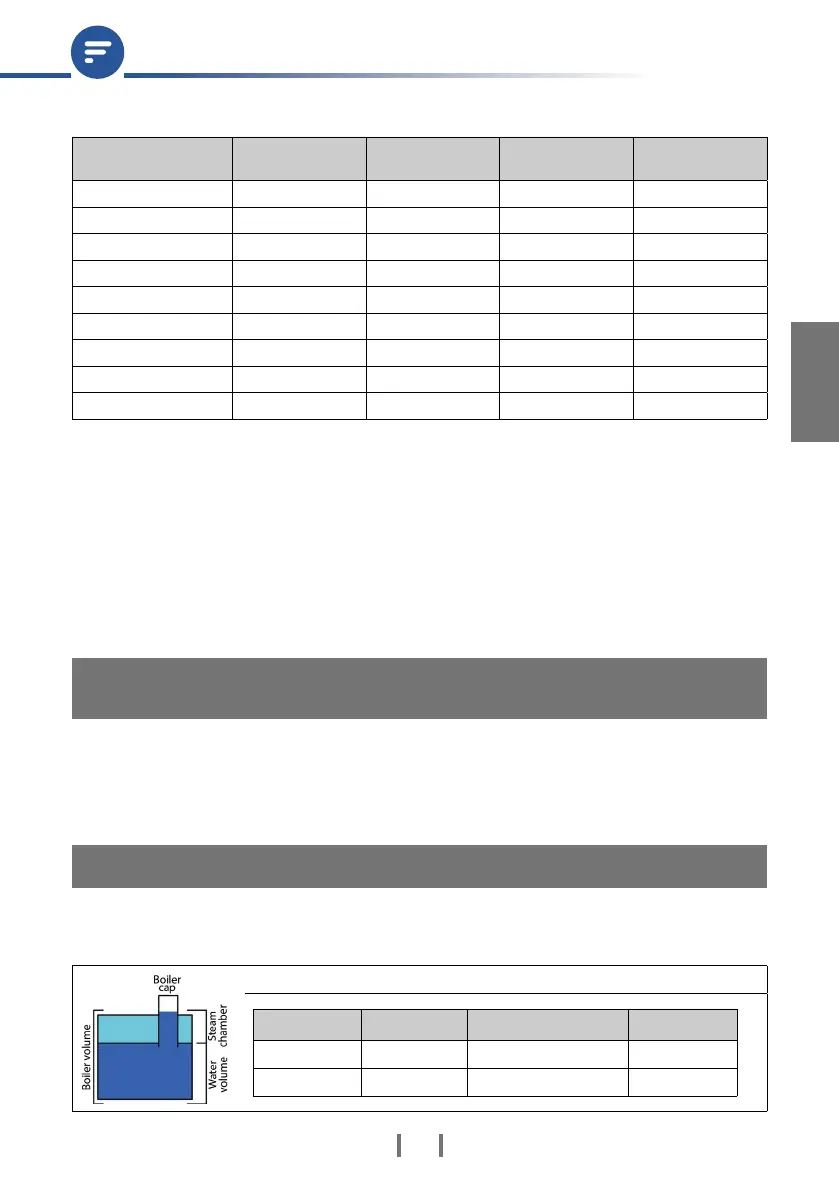

“Boiler volume” means: volume of usable water + steam chamber.
It is normal that the quanty of water inside the boiler is smaller than the boiler volume.
BOILER VOLUME = USABLE WATER VOLUME + STEAM CHAMBER
Boiler volume Usable water volume Steam chamber
BF072/BF073 2/2,4 Lt 2,4 Lt 0,5 Lt
BF002/BF005 1,6/2 Lt 1,9 Lt 0,5 Lt
