Big Daishowa LEVEL MASTER WIRELESS - 1 Specifications ････････････････････････････････････････････ P

１
１０
●Body
１．SPECIFICATIONS
●LED indicators
Blinking LED (red)：Inclination exceeding 0.08mm/1m
Continuous LED (red)：Inclination of 0.08mm/1m or less
Continuous LED (orange)：
Inclination of 0.06mm/1m or less
Continuous LED(yellow)：Inclination of 0.04mm or less
Continuous LED(green)：Inclination of 0.02mm/1m or less
Continuous LED(blue)：Inclination of 0.01mm/1m or less
mode
HIGH
mode
Blinking LED (red)：Inclination exceeding 0.8mm/1m
Continuous LED (red): Inclination of 0.8mm/1m or less
Continuous LED (orange): Inclination of 0.6mm/1m or less
Continuous LED(yellow
)：Inclination of 0.4mm/1m or less
Continuous LED(green)：Inclination of 0.2mm/1m or less
Continuous LED(blue)：Inclination of 0.1mm/1m or less
LOW
SPECIFICATIONS - NAMES OF PARTS AND FUNCTIONS
Wireless system
0.01mm／1m
2.4GHz
φ109mm×Ｈ143mm
Ｈ143×W81×D43mm
0.99kg
0.28kg
LVM-WL
Body
Receiver
Body
Receiver
Body
Receiver
Body
Receiver
Body
Receiver
Specifications
Auto-power OFF
Operating temperature
Dimentions
Weight
Battery life
Power supply
Minimum readable value
Model
0℃ ~ 40℃
(
Recommended 20℃ ±5℃）
30 minutes after power
is turned on
30 hours
Alkaline dry battery
LR03 (AAA) x4
Included items
Operation manual
Aluminumstoragebox

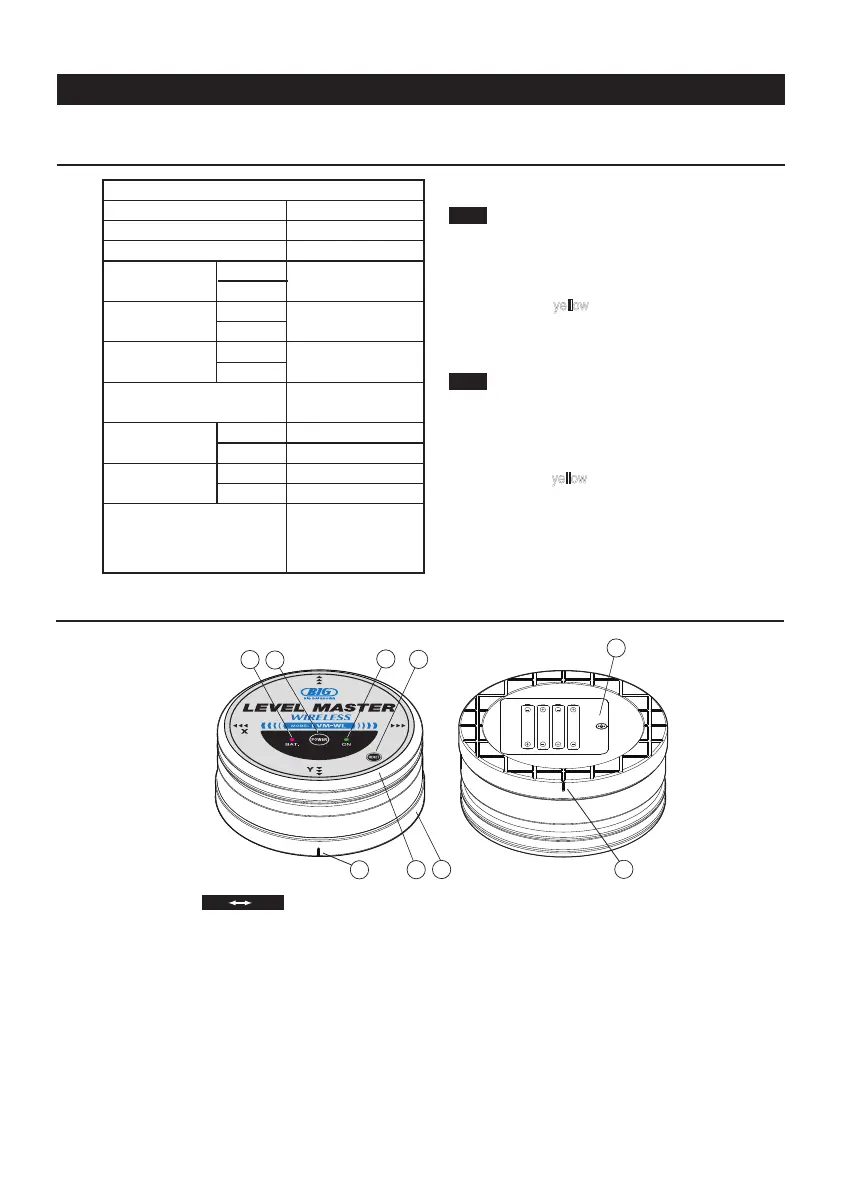

２．NAMES OF PARTS AND FUNCTIONS
7
7
5
6
8
1
2
3
4
①POWER switch O
Push the POWER swtich to turn ON the power.
Push it again to turn OFF the power.
②Power LED
LED (green) is lighted during the power is ON.
⑦Line markers
They are used for determining the direction of the
X and Y axes.
⑧
Batteries box
It is the location where the batteries are installed (LR03: AAA x4).
⑤Body base
⑥Body case
③
Battery alarm LED
LED (orange) flickers to inform battery exchange time
when voltage falls below the prescribed value.
④RESET switch
ush to reset the measurement in case abnormality
occurs.
ON OFF
７．WARRANTY
Warranty period: 1 year from the delivery
However, the below situations are excluded from the warranty.
・If the device is subject to shocks or vibrations of 3G or more.
・If the device is intentionally disassembled.
・If damages and breakdowns are caused by unreasonable repairs or modifications
or in case of utilization errors.
・If after the purchase, damages and breakdowns are caused by moving, transporting or
dropping the product.
・In case of damages and breakdowns caused by fires, earthquakes, storms, floods,
lightning, seawater or other natural disasters.
WARRANTY，EMCINFORMATION
８．EMC INFORMATION
Class and Group Description of EN 55011
This is a group 1, class B product according to EN 55011. This means that this product does not
generate and/or use intentionally radio-frequency energy, in the form of electromagnetic
radiation, inductive and/or capacitive coupling, for the treatment of material or inspection /
analysis purpose and that it is suitable for use in domestic establishments and in establishments
directly connected to a low voltage power supply network which supplies buildings used for
domestic purposes.
Note: Since this product is battery operated, this product is not connected to this low voltage
power supply network.
Manufacturer Name : BIG DAISHOWA SEIKI CO LTD
Address : Nishiishikiricho 3-3-39, Higashiosakashi, Osaka, JAPAN
EU Name : BIG KAISER PRECISION TOOLING LTD.
Address : Glattalstrasse 516, 8153 Rümlang, Switzerland
Alkaline dry battery
: LR03 (AAA) x4
