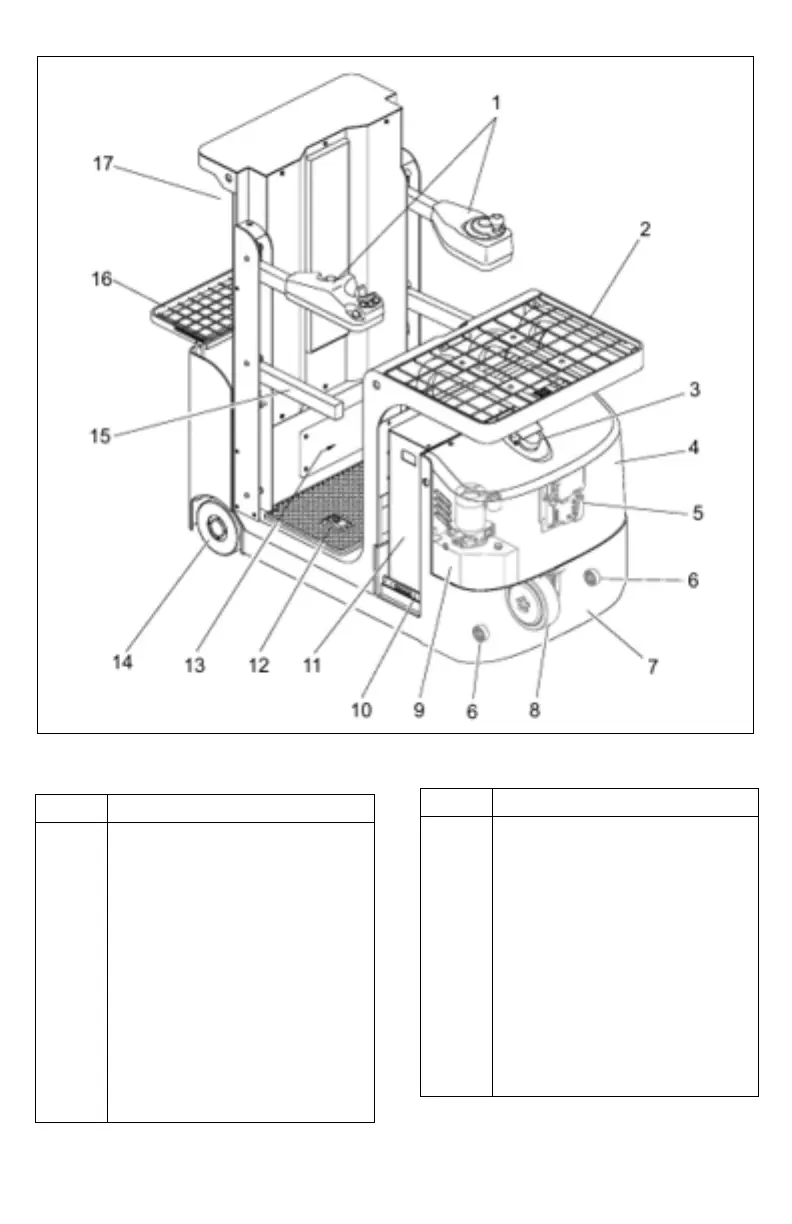

Figure 1 J1 Elevating Work Platform
R6980
ITEM COMPONENT
1 Control arms
2 Pick tray
3 Warning light
4 Cover
5 Control panel
6Casters
7Frame
8 Drive wheel
9 Hydraulic pump and
reservoir
10 Battery retainer
11 Battery
12 “Deadman” footswitch
13 Operator platform
14 Load wheels
15 Side gates
16 Rear tray for additional
capacity and storage
17 Mast
