INSTRUMENTS AND CONTROLS
The steering arm and control handle
provide controls for steering, forward
and reverse speed control, braking,
and raising and lowering the forks.
Control handles on all models have a
“belly-button” reversing switch which
reverses the direction of the truck
upon contact with the operator.
Detailed operating instructions are in
the Operation section of this manual.
A battery disconnect is mounted near
the steering arm. Pulling the discon-
nect removes all power from truck cir-
cuits in the event of an emergency.

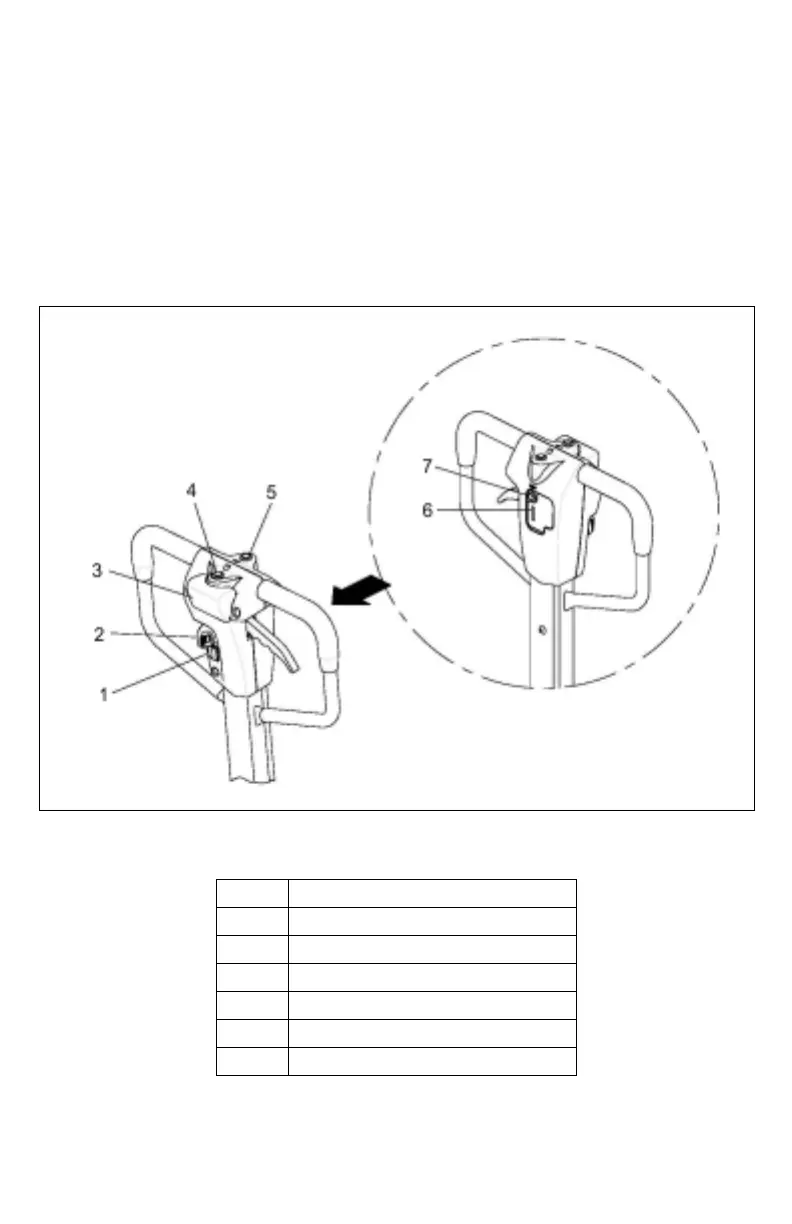

Control Handle
1 Power Button
2 Optional Key Switch
3 Belly Button Switch
4 Reverse Button
5 Forward Button
6 Battery Indicator
7 Horn Button
