Big Joe PPT 45 Series User Manual

102 pages

To Next Page

To Next Page

Page #1 background image

Loading...

Page #1 background image

PPT0104-901336 i

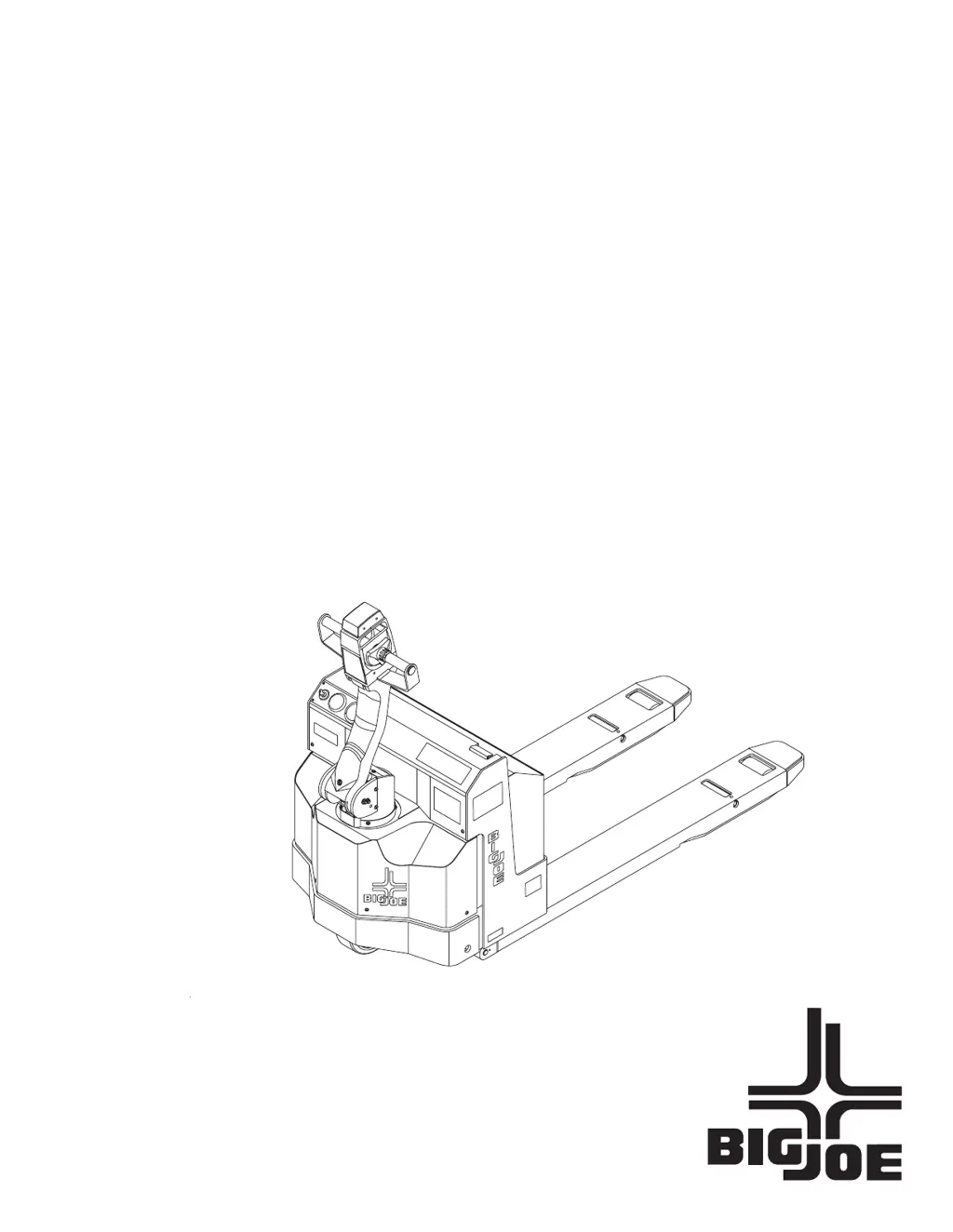

PPT 45 Series

Self-Propelled,

Pallet Lift Truck

Serial Numbers 373323

through 374781

Operation

Maintenance

Repair Parts List

Manual No. 901336

Table of Contents

Questions and Answers:

J
jenkinsdebraAug 1, 2025
What to do if my Big Joe PPT 45 truck will not run and the lift system doesn't operate?
- H
  holly04Aug 2, 2025
  If your Big Joe Forklifts truck won't run and the lift system isn't working, here's what you can check: * See if the 120 AMP fuse is blown and replace it if needed. * Verify the battery isn't dead or disconnected. * Inspect for defective wiring, looking for open circuits and repairing them as required. * If equipped with a key switch, bypass it to see if it's defective.
L
Lisa HerreraAug 15, 2025
What to do if Big Joe PPT 45 truck does not run forward or reverse but other functions work?
- L
  Linda ScottAug 15, 2025
  If your Big Joe Forklifts truck isn't moving forward or backward, but other functions are working, consider the following: 1. Check all wiring for loose connections and tighten them. 2. Inspect the Deadman/brake switch and replace it if it's defective. 3. Examine the switch in the control head and replace it if necessary. 4. Try moving the control arm up into the neutral position to reset the transistor control if there's a fault.

Big Joe PPT 45 Series Specifications

General

Brand	Big Joe
Model	PPT 45 Series
Category	Forklifts
Language	English

Summary

Section 1 DESCRIPTION

SAFETY FEATURES

Key safety features integrated into the PPT 45 lift truck design.

Section 2 OPERATION

OPERATING PRECAUTIONS

Essential safety precautions to follow before and during truck operation.

CONTROL OPERATION AND PROCEDURES

Explanation of control operation, driving, stopping, and specific travel modes like creep.

SPECIALIZED CONTROLS

LOADING, UNLOADING, AND PARKING

Procedures for handling loads and parking the lift truck.

Section 3 MAINTENANCE

OPERATOR DAILY CHECKS

Checklist for daily visual and operational checks to ensure safety.

BATTERY CARE

Guidelines for proper battery maintenance to extend lifespan and ensure safety.

BATTERY REMOVAL

Procedures for safely removing the battery from the lift truck.

BATTERY TESTING AND CHARGING

Steps for testing and charging lead-acid batteries.

LUBRICATION

Section 4 ADJUSTMENT AND REPAIR

STEERING ARM AND CONTROL HEAD REPAIR

BRAKE SYSTEM ADJUSTMENT AND REPAIR

Procedures for adjusting and replacing brake components.

BRAKE ASSEMBLY REPLACEMENT

SWITCH REPLACEMENT

DRIVE MOTOR AND TRANSMISSION REPAIR

ELECTRICAL SYSTEM REPAIR

Procedures for battery, cable, charger, contactor panel, horn, etc. maintenance.

HYDRAULIC SYSTEM REPAIR

Maintenance and repair procedures for hydraulic lines, pump, motor, and cylinder.

Section 6 TROUBLESHOOTING

TROUBLESHOOTING CHART

A chart listing malfunctions, probable causes, and corrective actions.

CONTACTOR TESTING

TRANSISTOR CONTROLLER CIRCUIT OPERATION

Understanding the operating principles of the transistor controller.

GENERAL SYSTEM CHECKOUT

A procedure for checking the overall system functionality.

CONTROLLER ADJUSTMENT

DIAGNOSTICS AND FAULT CODES

Methods for obtaining and interpreting diagnostic information and fault codes.

ELECTRICAL SYSTEM TROUBLESHOOTING

Section 7 PARTS LIST

TRANSMISSION, MOTOR AND BRAKE ASSEMBLY PARTS

DRIVE MOTOR REPAIR PARTS

HYDRAULIC PUMP, MOTOR AND RESERVOIR ASSEMBLY PARTS
