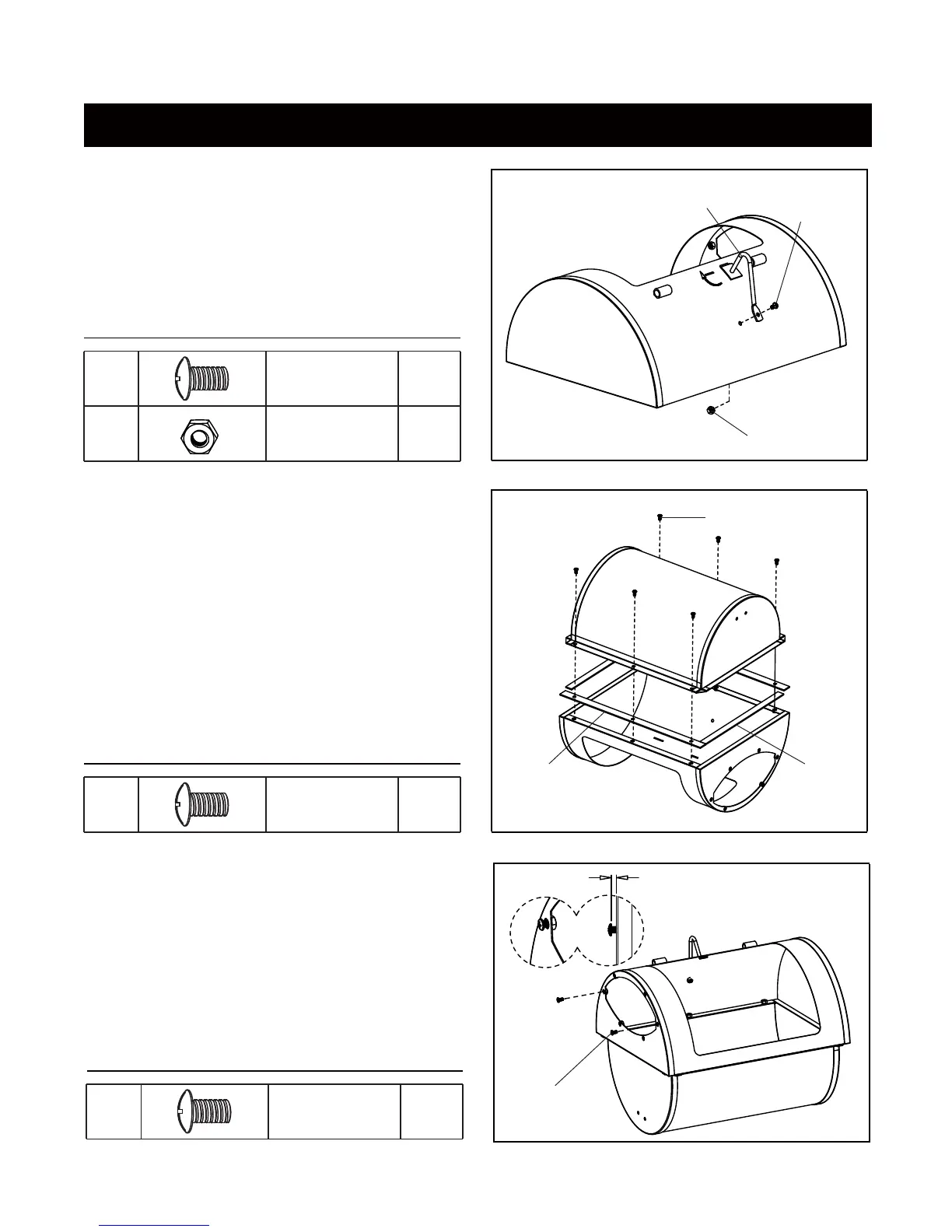

BIGHORN SRCG16003 - Page 10

Assembly Instructions
Attach firebox lid stop to firebox top with M6 x 12 bolt (AA) and
M6 nut (DD).
Step 6
Attach firebox base, heat insulation cottons 1 and heat
insulation cottons 2 to firebox top with M6 x 12 bolts (AA).
Step 7
AA
M6 x 12 Bolt
Hardware Used
1pc
Hardware Used
AA
M6 x 12 Bolt
6pcs
Step 6
Step 7
9
DD
M6 Nut
1pc
Insert M6 X 12 bolts half way inby the firebox opening as shown.
5.0MM Approx
Step 8
Hardware Used
AA
M6 x 12 Bolt
2pcs
Step 8
Firebox lid stop
AA
DD
AA
Heat insulation
cotton 1
Heat
insulation
cotton 2
AA
