AssemblyInstructions
8

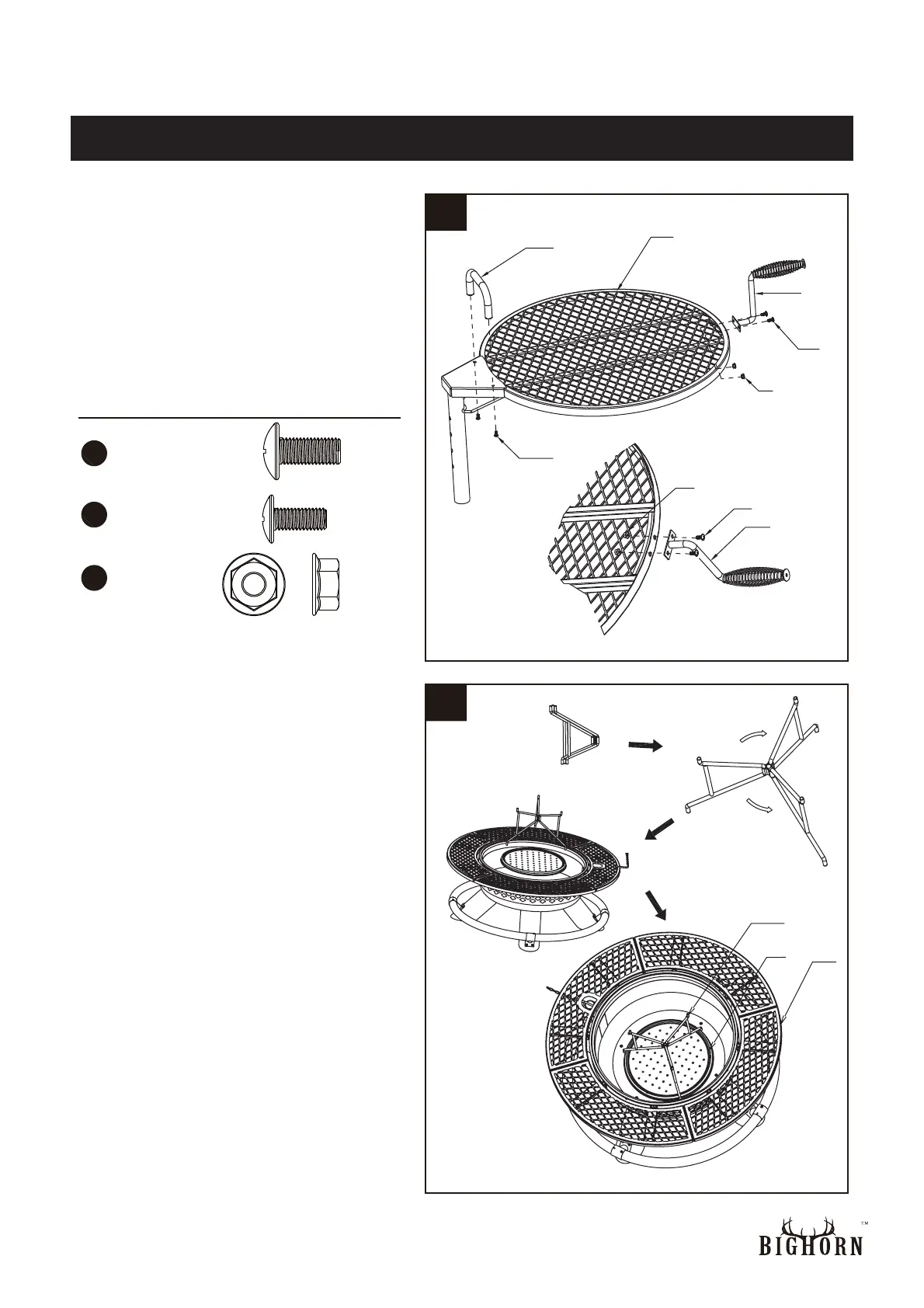

Step 6
5
6
Unfold log rack (I) as illustrated and put
the charcoal pan (J) at the bottom of the
fire bowl (F) then secure the 3 long legs
at the edge of the charcoal pan (J).
Wood can be put on the log rack for
heating function.
The unit is ready for wood burning after
the log rack (I) is installed
Note: When using the fire pit for heating
and during lighting, swing the cooking
grate (C) from over the fire bowl.
Step 5
Attach the lift handle (B) to cooking
grate (C) with (2) M5 x 12 bolts (BB) as
illustrated.
Attach the swing handle (A) to cooking
grate (C) with (2) M6 x 14 (AA) and (2)
M6 nuts (DD) as illustrated.
Hardware Used
M6 x 14 Bolt
x 2
AA
M5 x 12 Bolt x 2
BB
M6 Nut x 2
DD
A
A
F
J
I
AA
AA
DD
DD
BB
B
C
Lowes.com/Big Horn
To Next Page
