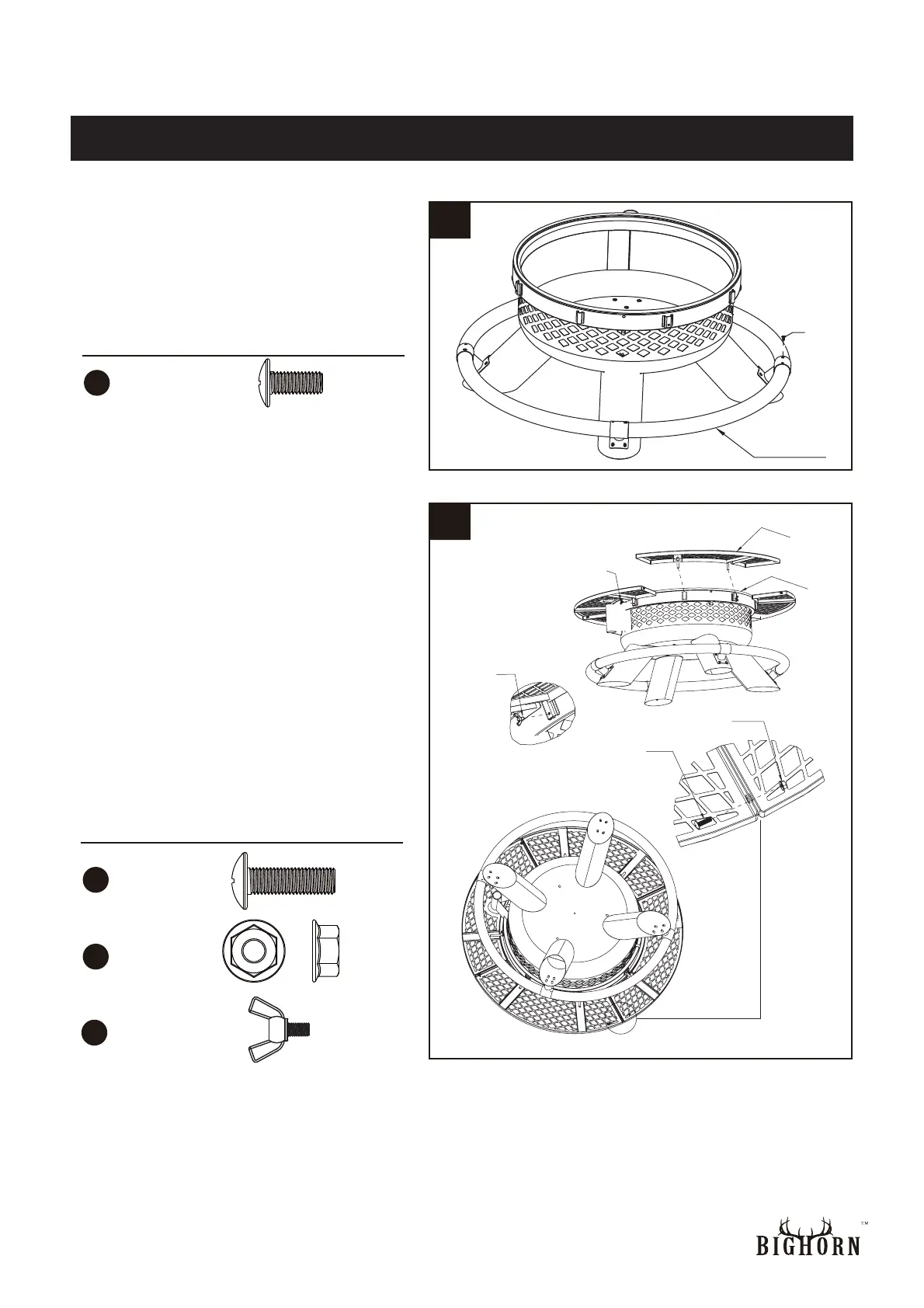

BIGHORN SRFP96 - Page 7

Assembly Instructions
7
Step 4
4
Insert (2) the pins on table panels (E)
into the fixed brackets on the fire bowl
(F) as illustrated.
Connect (4) table panels (E) with (4)
M6 x 20 bolts (CC) and (4) M6 nuts (DD).
Attach (4) wing bolts (EE) to the fixed
brackets on the fire bowl (F) as illustrated.
Hardware Used
BB
M5 x 12 Bolt x 4
Step 3
3
Secure (4) support ring sections (G)
with (4) M5 x 12 bolts (BB).
BB
G
Hardware Used
CC
DD
M6 x 20 x 4
M6 Nut
x 4
NOTE: The hole on the table panel (E)
should be placed right upon the pole on
the fire bowl (F).
EE
Wing Bolt
x 4
CC
EE
EE
E
F
DD
