14
1 If not already attached, crimp contact pins to Sony harness rear
speaker wires (green and purple outputs). Respect polarity. For
more information see pages 8-9.
2 Use heat shrink tubing to insulate crimp portion of contact pin.

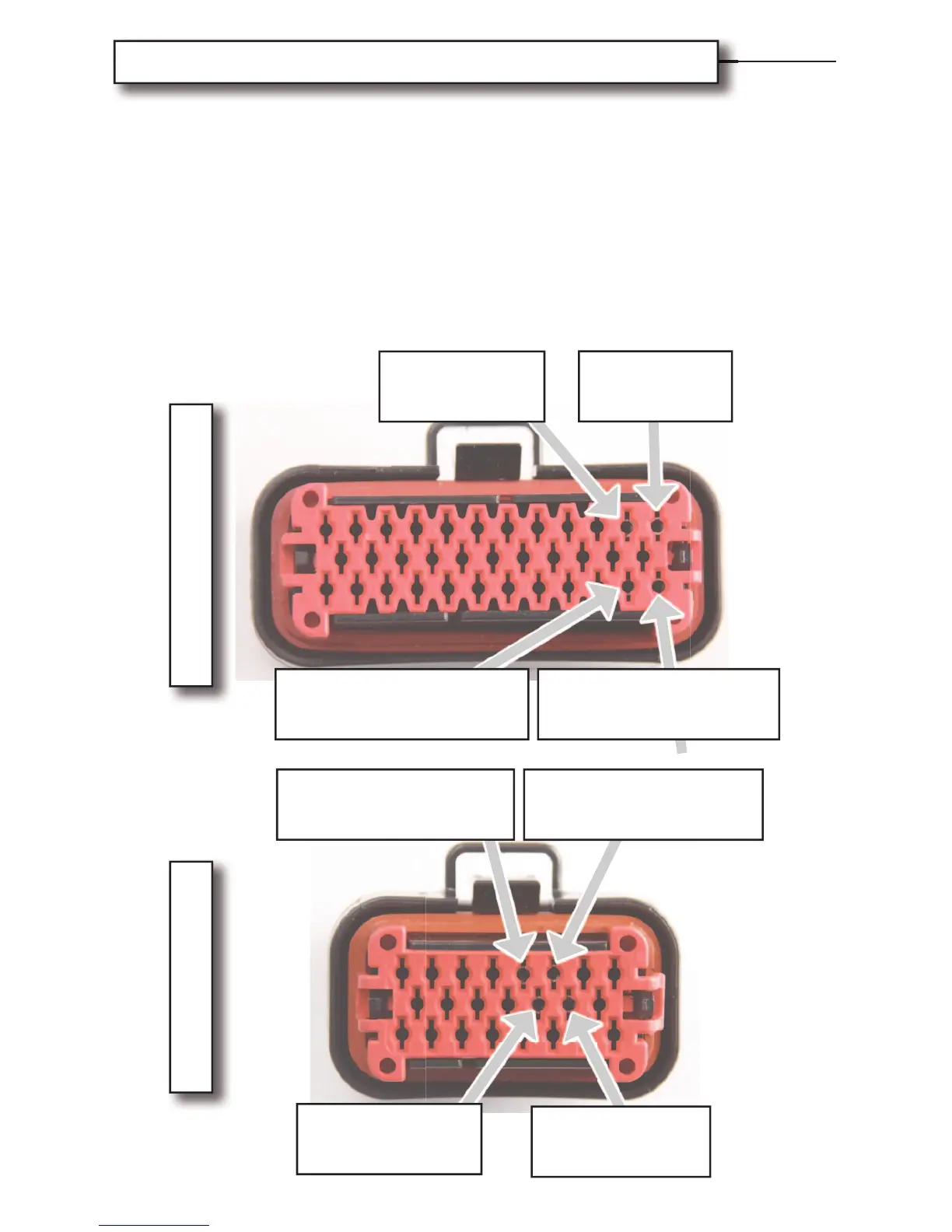

3 Insert contacts according to wire map and picture below.
4 Ensure no shorting!
5 Fasten using tape or zip ties such that pins do not come loose.
Note: Harley-Davidson part number for pins: 72190-94
2006 to Present
Position 2
Green
Position 24
Purple w/ Black Stripe
Position 25
Green w/ Black Stripe
Position 1
Purple
1998 to 2005
Position 4
Purple w/ Black Stripe
Position 11
Purple
Position 10
Green
Position 3
Green w/ Black Stripe
1998 to Present: Ultra Glide Rear Speakers
