RCA Connectors
Step 5

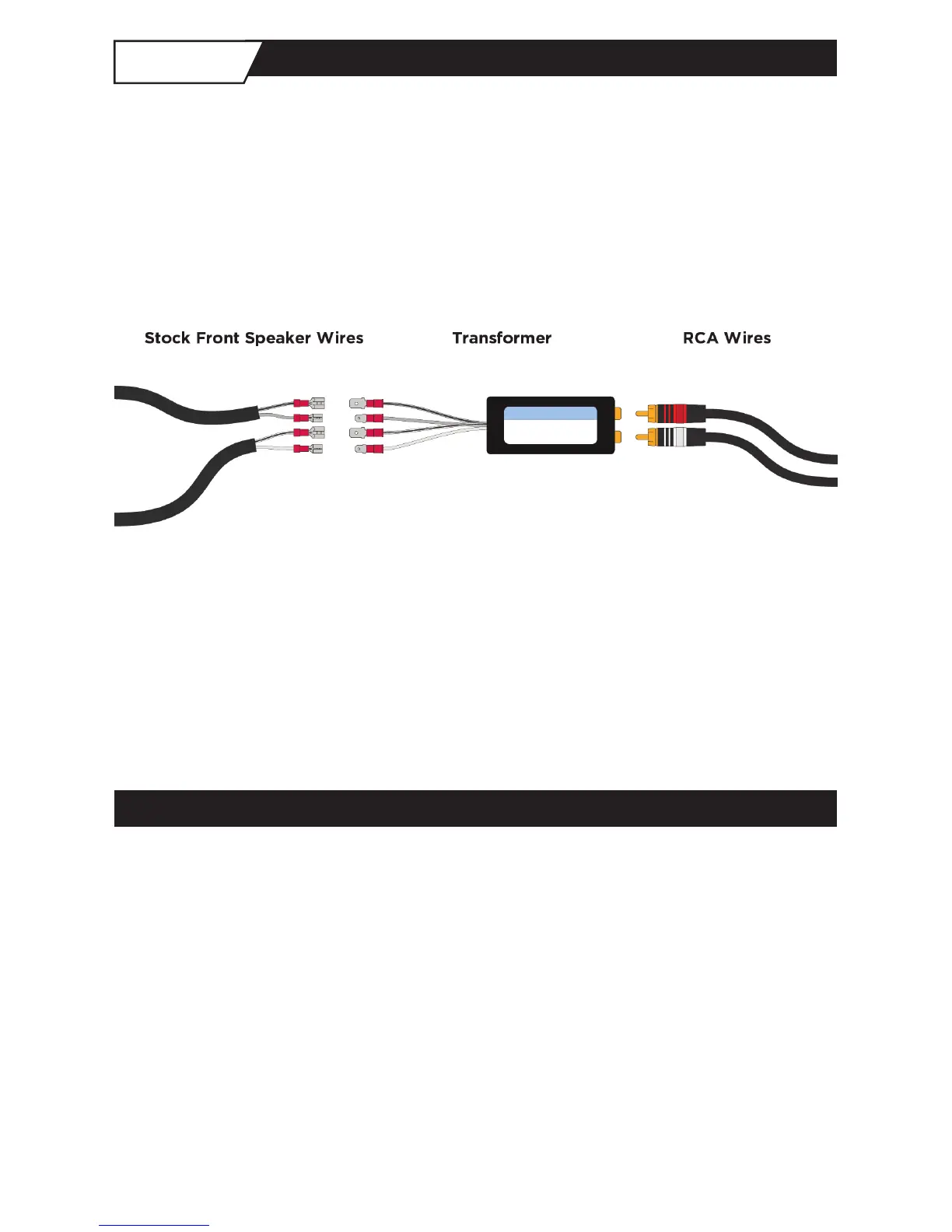

• ConnectRCAconnectorstoamplifier.
• Installationrequiresuseoftransformerbetweenstockspeakerwires(high-
level)andamplifier’sinputRCAconnectors(low-level).
• Connectstockfrontspeakerwirestogreyandwhitewiresontransformer.
• Useincludedheatshrinktosecureandinsulateconnections.
• Connectamp’sfrontRCAplugstoRCAjacksfoundontransformer.Since
some stock radios do not have balance control, RCA polarity may not
matter.
Rear Amp Input
Dependingonbikeconfiguration,therearspeakersignalwillbeconnectedto
thereartransformeroneofthreeways:
Ultra Classic
®
–customharnessbringingsignalfromrearpodarea.
Road Glide
®
and Street Glide
®
–usingtherearspeakerconnectorinfairing.
Custom Setup–splicedintorearspeakerwiring.
