Billy Goat MV PUSH EU - Page 20

MV PUSH EU Owner’s Manual
Part No 840514 20 840514_B_HI

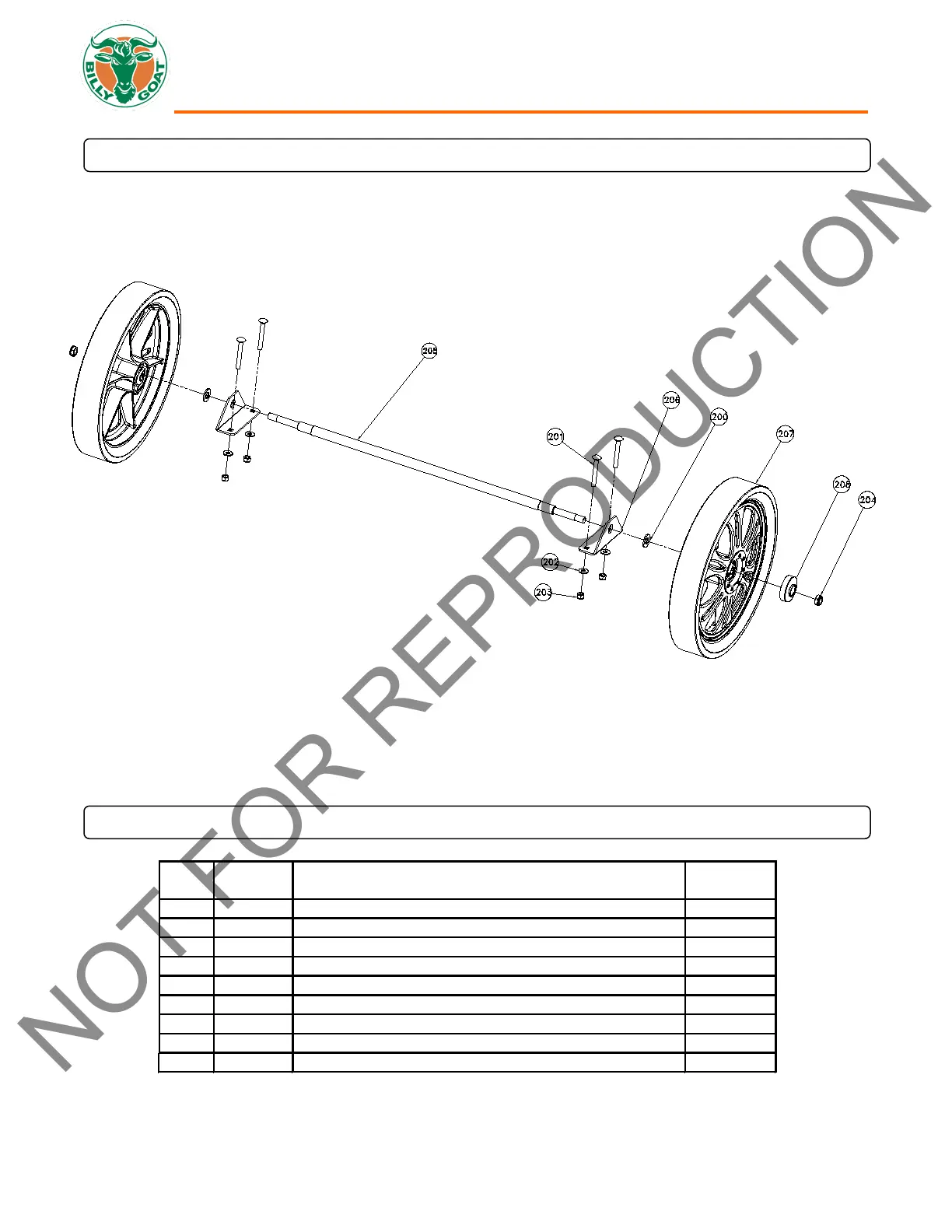

MV PUSH EU REAR AXLE PARTS DRAWING
Rear Axle Assembly
MV PUSH EU REAR AXLE PARTS LIST
ITEM
NO.
PART
NUMBER
DESCRIPTION
MV650H
QTY.
200 8172011 WASHER FLAT 1/2" SAE 2
201 8024046 BOLT CARRIAGE 5/16-18X2 1/2 4
202 8171002 WASHER 1/4" FC ZP 4
203 8160002 NYLON INSERT LOCKNUT 5/16-18 UNC 4
204 8161044 NY
LON INSERT LOCKNUT 1/2-13 UNC THIN 2
205 840091 SHAFT REAR AXLE PUSH VAC 1
206 840090 BRACKET REAR AXLE MOUNT PUSH MV VAC 2
207 840101 WHEEL 14" ASSEMBLY WITH BEARING AND TIRE 2
208 840017 MV WHEEL BEARING 2
