created: 04.16.19 E4-WM5-Y630A00_2 Page 10 of 22 latest revision: 09.29.20
N.

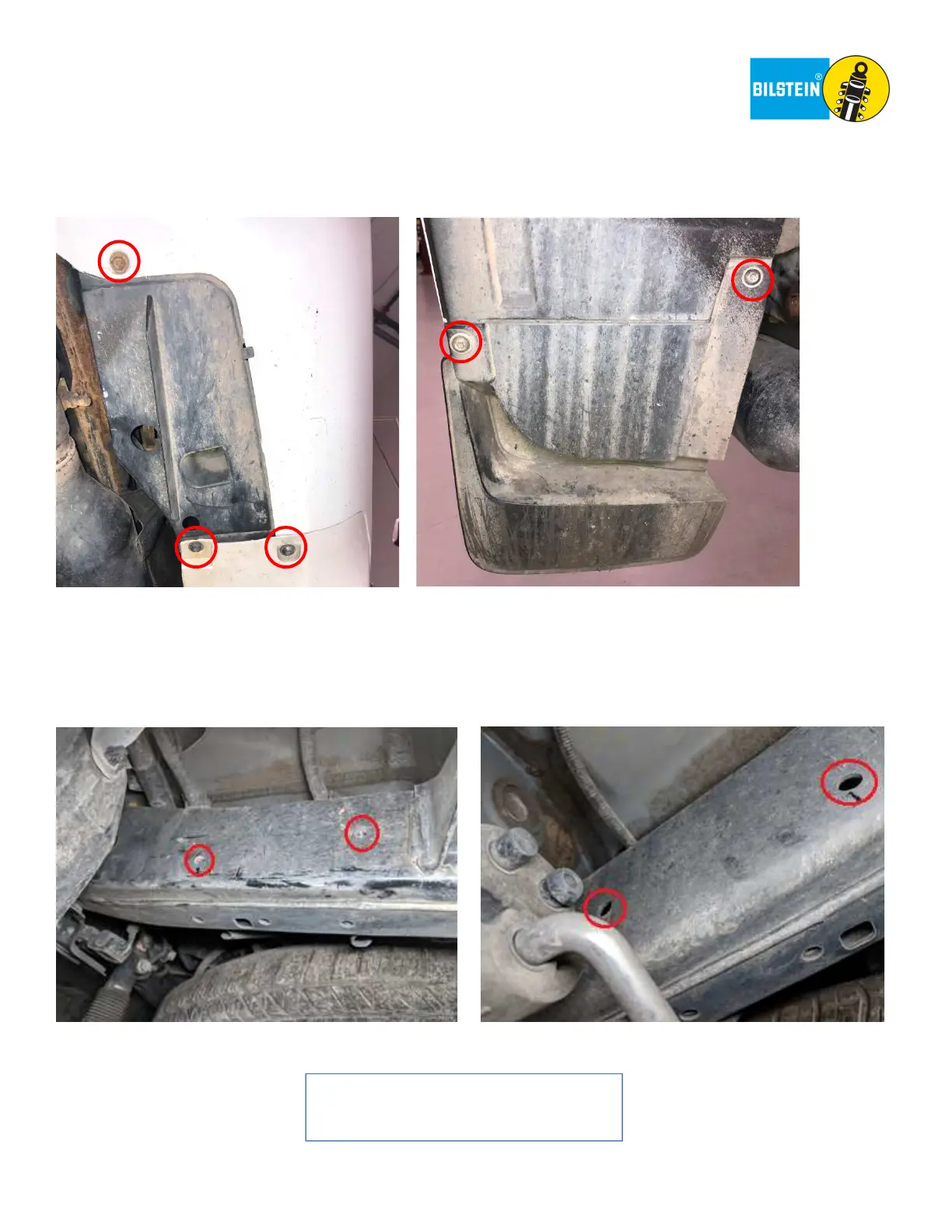

Remove the 5 screws holding the mud flaps and black plastic piece under the rear quarter panel. They are circled in
red in the pictures below.
Right side depicted. Left side is a mirror image.
O.
Once you’ve moved the panel out of the way, locate the holes on the vertical section of the frame rail. On the right
side, they are either 10mm holes or threaded M8x1.25 holes depending on the year of your vehicle. On the left side,
they are always threaded M8x1.25 holes.
Left side Right side
Note: On GX470 models the air
compressor assembly will need to be
removed in order to install the reservoirs.
To Next Page
