created: 04.16.19 E4-WM5-Y630A00_2 Page 9 of 22 latest revision: 09.29.20
Right side depicted. Left side is a mirror image.
For Lexus GX460
[Steps M-N can be skipped for 4Runner and GX470]
M.

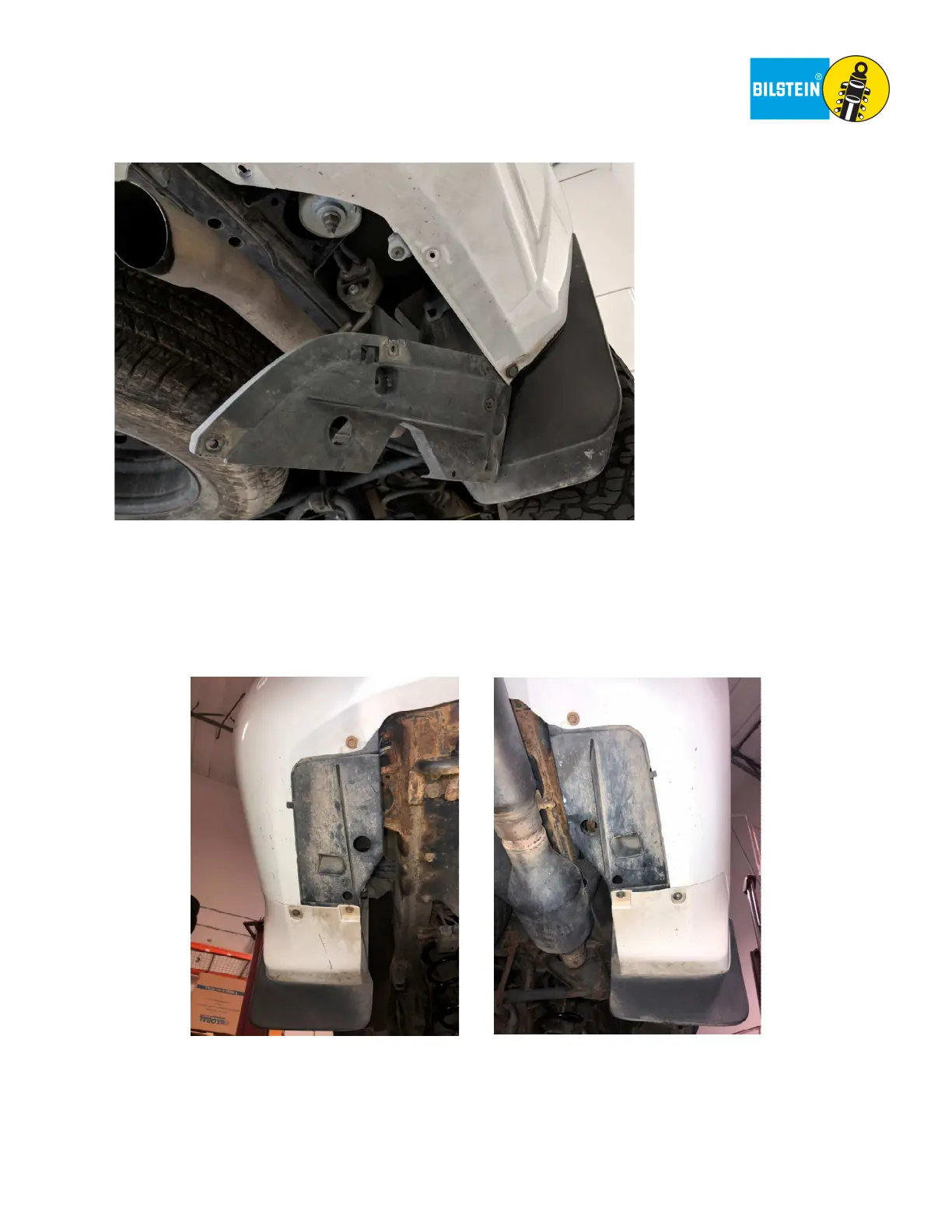

In order to install the reservoirs, the following plastic pieces need to be removed to gain access to 2 frame holes that
will be used for the reservoir mounting.
Left side Right side
To Next Page
