For 4Runner
[Steps K-L can be skipped for GX460. Steps K-N can be skipped for ’03-’09 4Runner and GX470]
K.
In order to install the reservoirs, the following plastic pieces need to be removed to gain access to 2 frame holes that
will be used for the reservoir mounting.
Left side Right side
L.

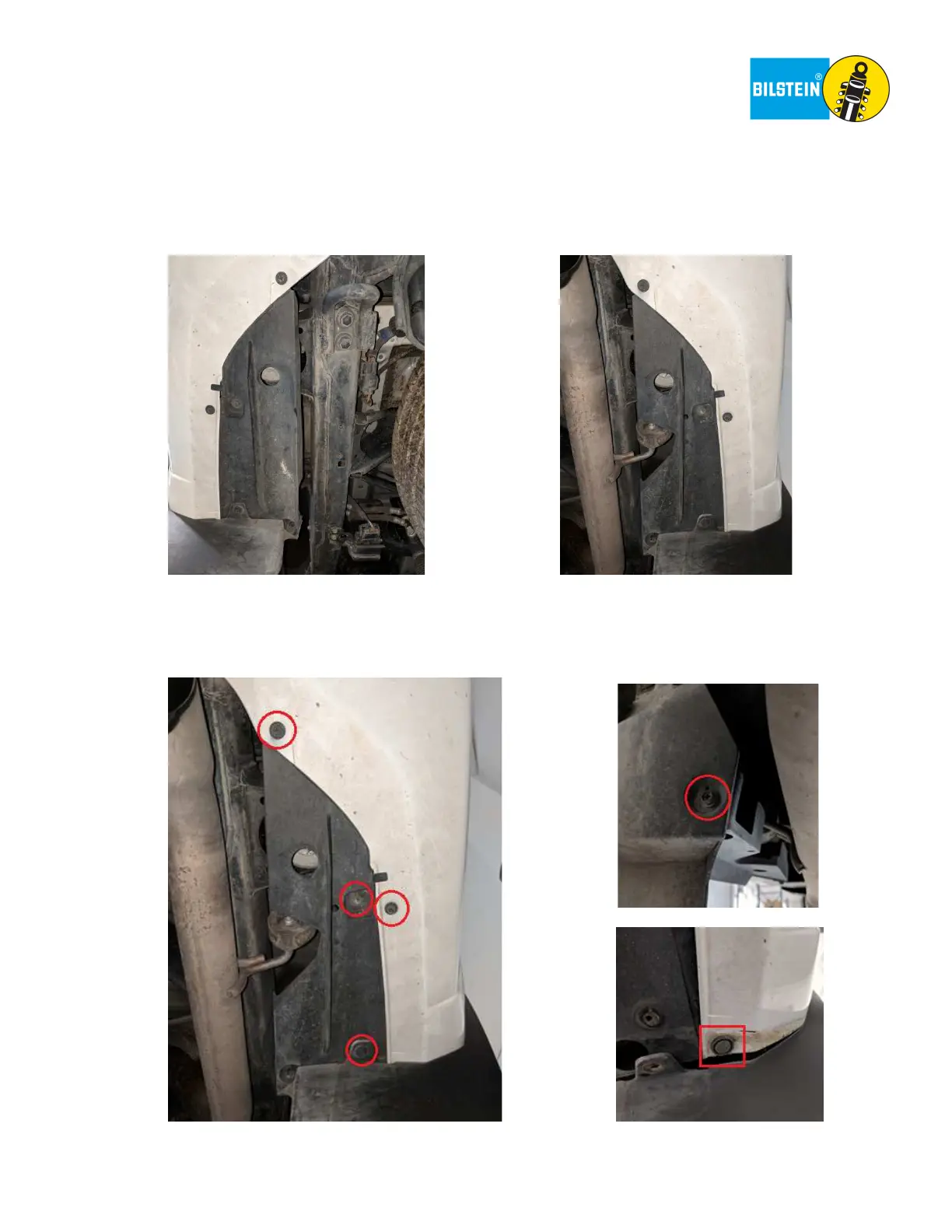

Remove the 5 screws holding the black plastic piece under the rear quarter panel. They are circled in red in the
pictures below. The clip in the red square can be removed to further ease installation, but it’s removal is not required.
The plastic piece can be rotated out of the way with it still fastened.
Right side depicted. Left side is a mirror image.
