4Runner & GX460/470 Right Side Reservoir Installation Preparation:
U.
The fasteners to be used are different depending on if the holes in your frame are threaded or not. They are either
10mm through holes or M8x1.25 threaded holes depending on the year of your vehicle. If they are 10mm through
holes, there are some steps that need to be done to install Threaded Inserts. If the holes in your frame are threaded,
skip to step AA for 4Runner/GX470 or step FF for GX460.
Process for installing Threaded Inserts into frame (complete this procedure for all Threaded Inserts)
V.
If you have access to a Threaded Insert gun or pliers, that may be preferable to set the provided Threaded Inserts.

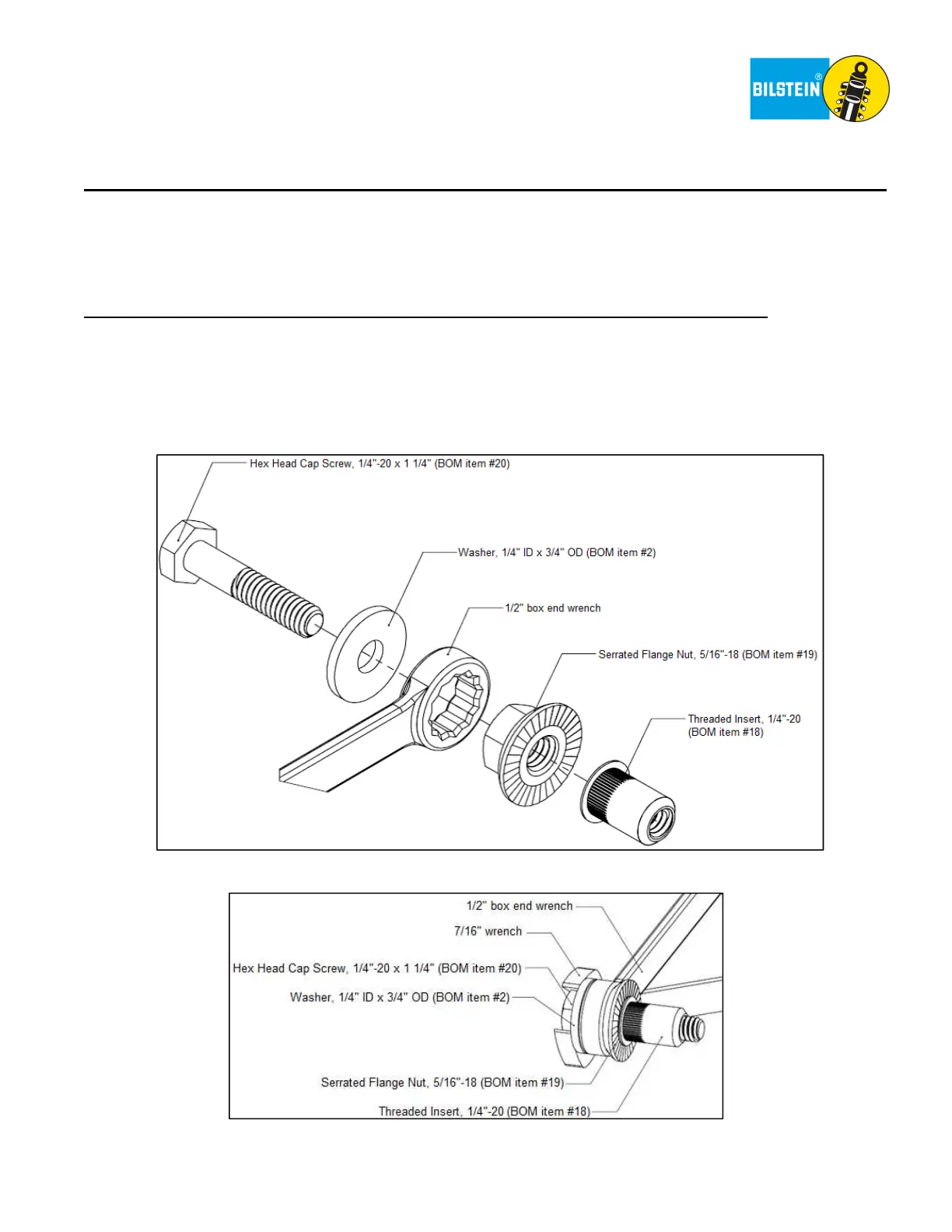

Otherwise, using the BOM items shown below and a ½” box end wrench, arrange them as shown and turn the ¼”-20
hex head cap screw by hand until it is snug.
Note that the screw will pass through the serrated flange nut without engaging the threads. The threads will instead
engage the Threaded Insert. The serrations on the flange nut prevent the Threaded Insert from rotating while setting
it.
