created: 04.16.19 E4-WM5-Y630A00_2 Page 14 of 22 latest revision: 09.29.20
W.

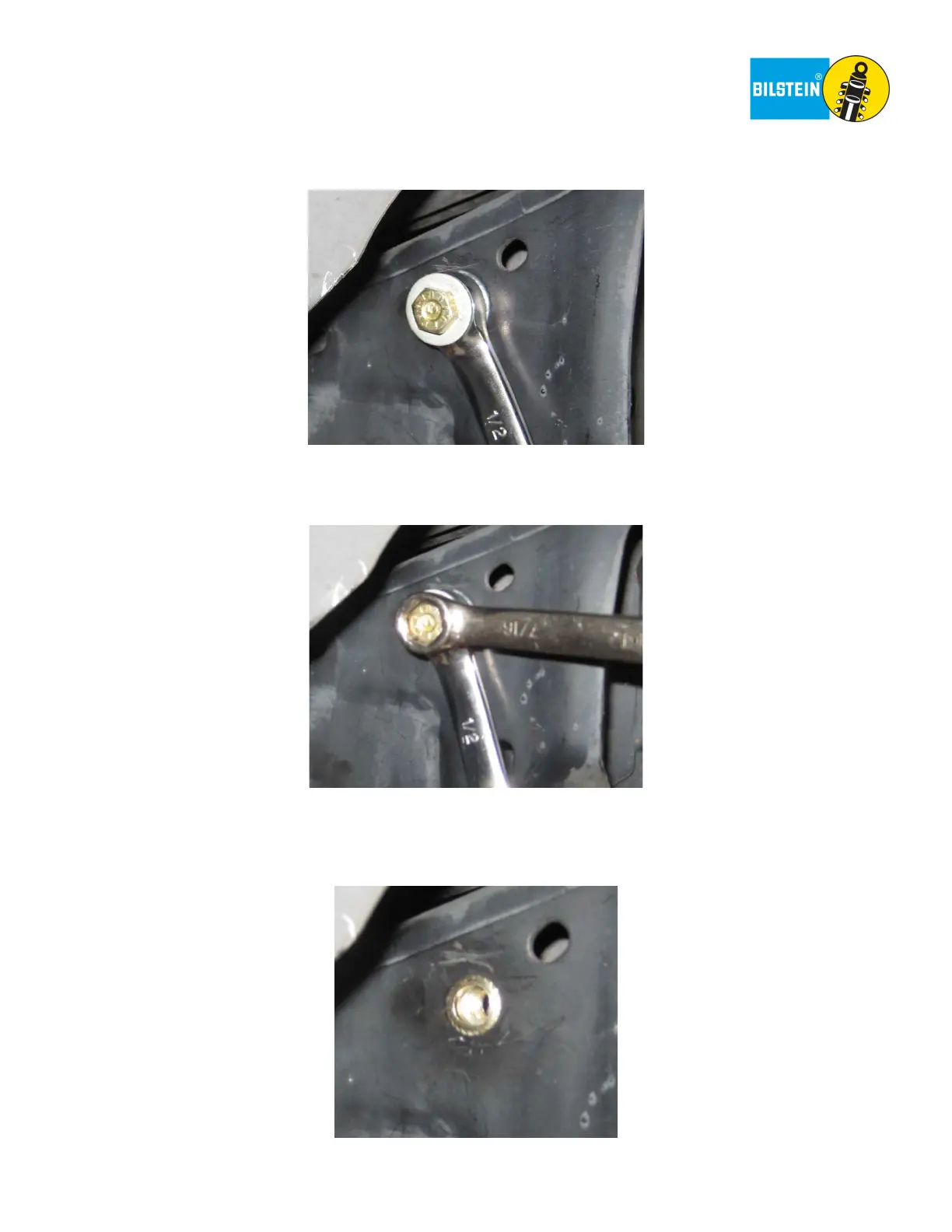

Place the Threaded Insert into the hole.
X.
While keeping the Threaded Insert flange firm and parallel against the frame rail, tighten the screw using a 7/16” box
end wrench or socket. Turn it 2.5 rotations to set the Threaded Insert. Tightening in ¼ turn increments tends to work
well.
Y.
Remove the screw, washer, and flange nut. The Threaded Insert should now be rigidly fixed in the hole as shown
below.
