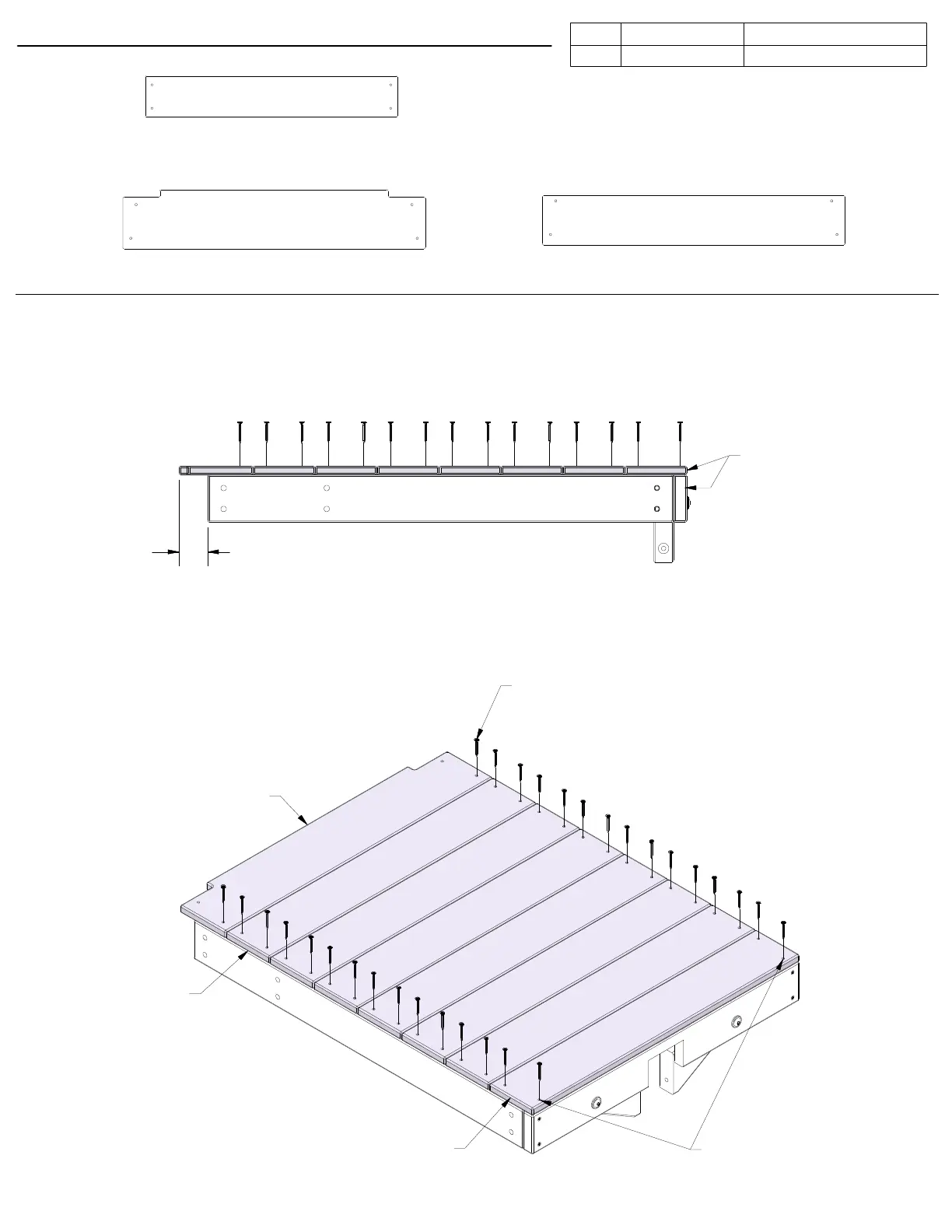

STEP 3 - CROWS NEST DECK ASSEMBLY
QTY
PART NUMBER DESCRIPTION
30 H100200 SCREW PFH 8x1-1/2" BLK
200 (x30)
SCREW - 1 1/2"
L05 (x1)
L04 (x1)
L03 (x6)
CROWS NEST FLOOR BOARD - W4L18306
5/8"x5 1/4"x27" (16x134x686)
L05
(x1)
2 in
[52
mm]
FLUSH
START HERE
CROWS NEST FLOOR BOARD - W4L18296
5/8"x4 3/8"x27" (16x112x686)
L04
(x1)
CROWS NEST FLOOR BOARD - W4L18295
5/8"x4 3/8"x27" (16x112x686)
L03
(x6)
NOTE HOLE POSITIONS
EVENLY SPACE FLOOR BOARDS
