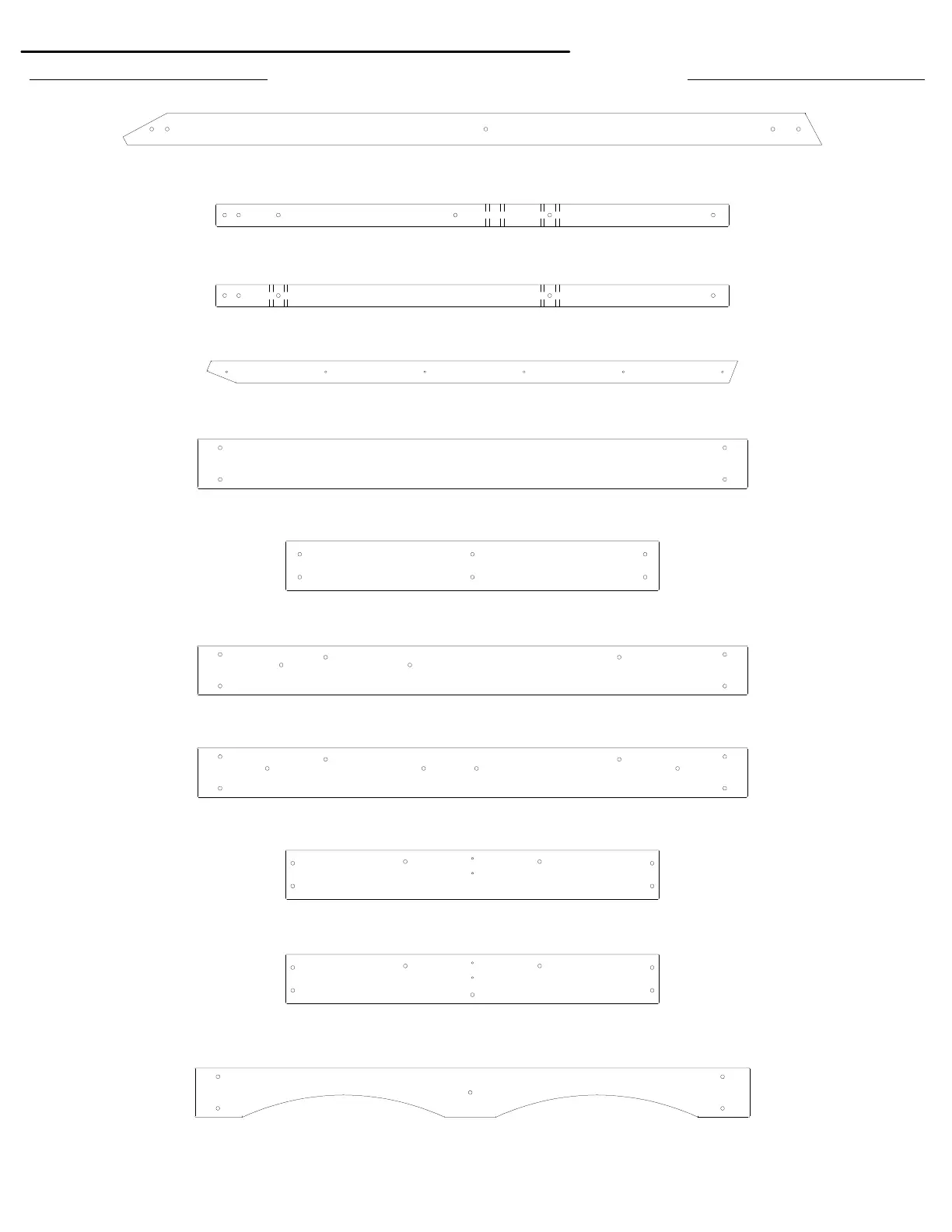

Wood Components (Not to Scale)
Owner's Manual - Parts Identification
ANGLE BRACE - W4L18219
1 3/8"x3 3/8"x74 7/8" (36x86x1903)
E80
(x2)
CROWS NEST WALL SUPPORT - W4L18297
1 3/8"x2 3/8"x55" (36x60x1397)
F01
(x2)
CROWS NEST WALL SUPPORT - W4L18298
1 3/8"x2 3/8"x55" (36x60x1397)
F02
(x2)
SUPPORT RAIL - W4L18227
1 3/8"x2 3/8"x56 7/8" (36x60x1446)
F07
(x2)
GROUND BOARD - W4L18237
1"x5 1/4"x59" (24x134x1498)
G01
(x2)
GROUND BOARD - W4L18238
1"x5 1/4"x40" (24x134x1017)
G02
(x1)
FLOOR RAIL - W4L18255
1"x5 1/4"x59" (24x134x1498)
G04
(x1)
FLOOR RAIL - W4L18256
1"x5 1/4"x59" (24x134x1498)
G05
(x1)
FLOOR RAIL - W4L18257
1"x5 1/4"x40" (24x134x1017)
G06
(x1)
FLOOR RAIL - W4L18258
1"x5 1/4"x40" (24x134x1017)
G07
(x1)
BACK ARCHED RAIL - W4L18271
1"x5 1/4"x59 1/2" (24x134x1510)
G08
(x1)
