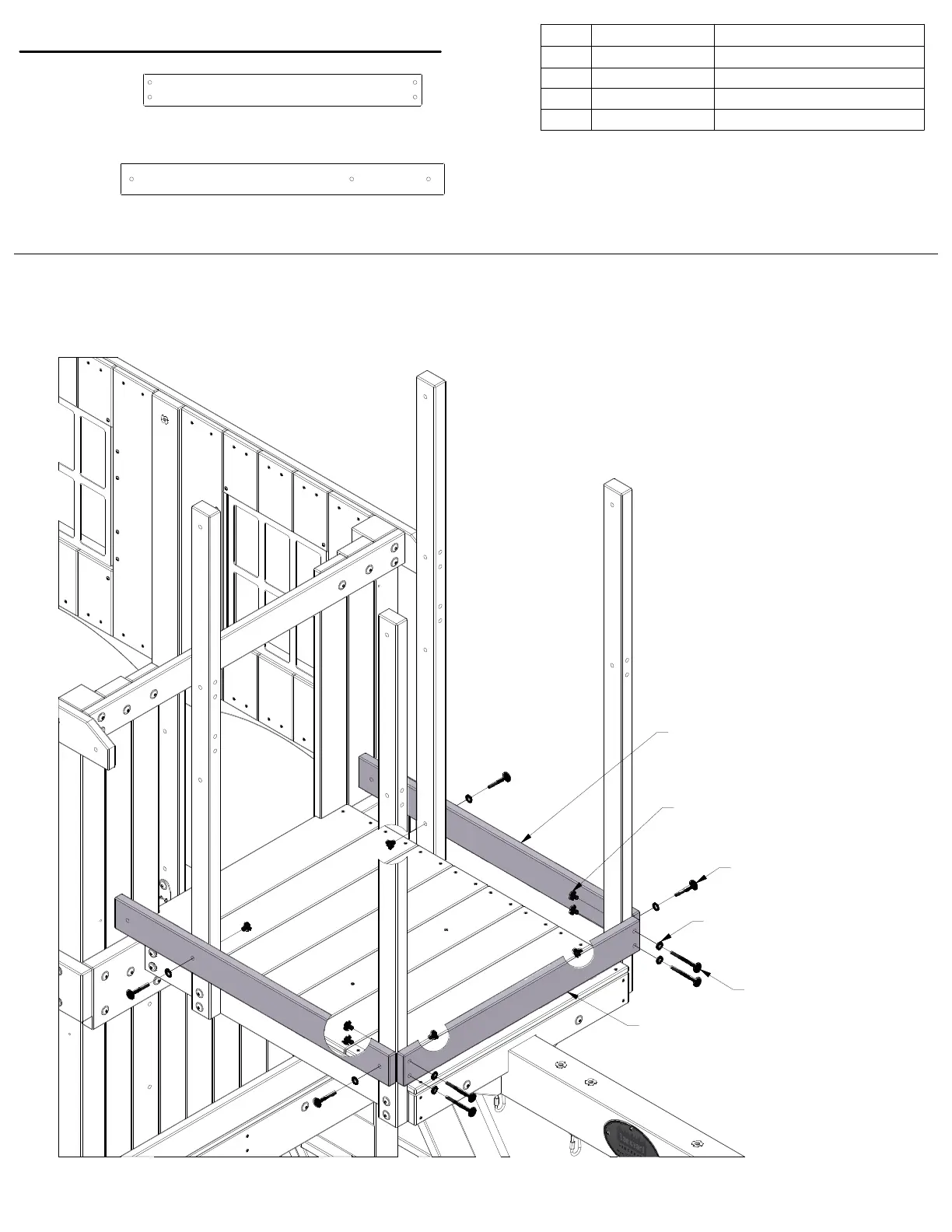

STEP 37 - FORT ASSEMBLY
QTY
PART NUMBER DESCRIPTION
4 H100205 BOLT WH 5/16x2 1/4 BLK
4 H100484 BOLT WH 5/16x3 1/4 BLK
8 H100198 WASHER LOCK EXT 8x19 BLK
8 H100379 T-NUT 5/16 BLK
TIP:
INSTALL T-NUTS IN WOOD FIRST
379 (x8)
T-NUT - 5/16"
484 (x4)
BOLT - 3 1/4"
198 (x8)
WASHER - 8x19
205 (x4)
BOLT - 2 1/4"
H22 (x2)
H21 (x1)
CROWS NEST WALL RAIL - W4L18300
1"x3 3/8"x29 7/8" (24x86x758)
H21
(x1)
CROWS NEST WALL RAIL - W4L18301
1"x3 3/8"x34 3/4" (24x86x882)
H22
(x2)
To Next Page
