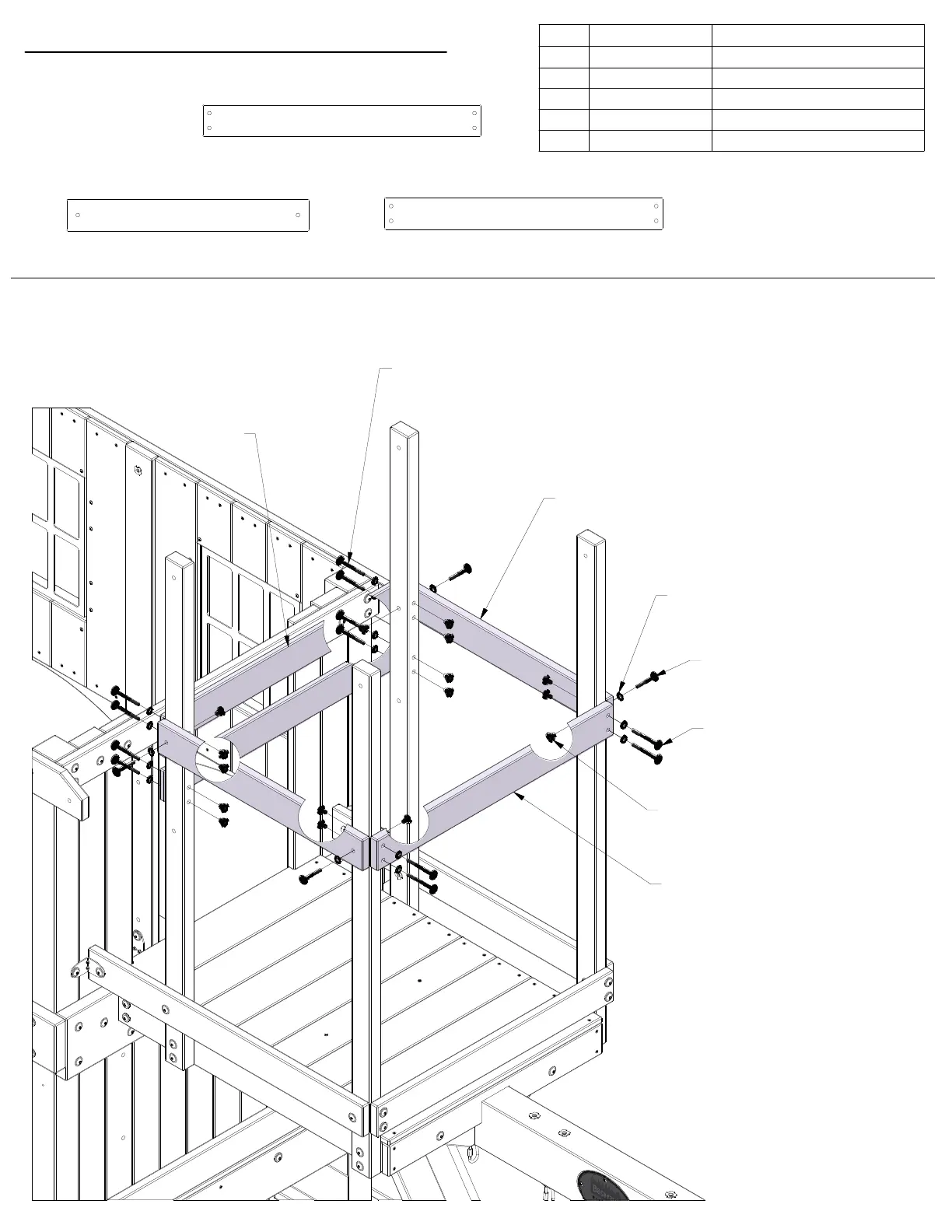

STEP 39 - FORT ASSEMBLY
QTY
PART NUMBER DESCRIPTION
4 H100205 BOLT WH 5/16x2 1/4 BLK
8 H100416 BOLT WH 5/16x3 BLK
16 H100198 WASHER LOCK EXT 8x19 BLK
16 H100379 T-NUT 5/16 BLK
4
H100484
BOLT WH 5/16x3 1/4 BLK
TIP:
INSTALL T-NUTS IN WOOD FIRST
205 (x4)
BOLT - 2 1/4"
484 (x4)
BOLT - 3 1/4"
416 (x8)
BOLT - 3"
379 (x16)
T-NUT - 5/16"
198 (x16)
WASHER - 8x19
H23 (x2)
H21 (x1)
M06 (x2)
CROWS NEST WALL RAIL - W4L18300
1"x3 3/8"x29 7/8" (24x86x758)
H21
(x1)
CROWS NEST WALL RAIL - W4L18303
1"x3 3/8"x26" (24x86x660)
H23
(x2)
CROWS NEST WALL RAIL - W4L18302
5/8"x3 3/8"x29 7/8" (16x86x758)
M06
(x2)
To Next Page
