• Do not place the wall fan into the room to avoid the back-flow of gases from the open flue of gas or
other fuel-burning appliances (for duct and partition fans).
• This device is NOT suitable to use it in an explosive environment (in the presence of flammable
substances such as gas, vapor, mist or dust, in atmospheric conditions when, after ignition, the
combustion is spread in the air).
• Do not connect to thermal control systems or a programmer or timer or other device that can
automatically turn on the unit, thus avoiding the risk of damage to people, animals or property.
always unplug the appliance before you assemble.

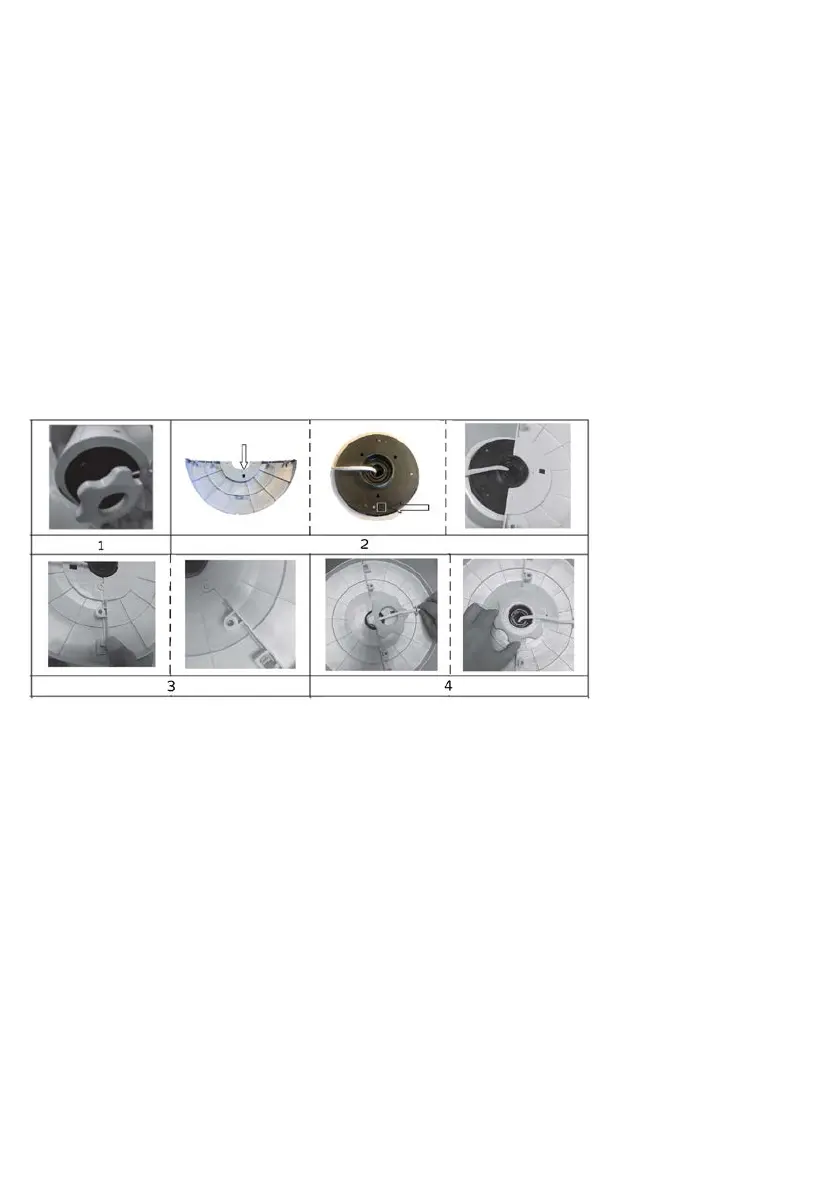

To assemble it, refer to figures.
1. Unscrew the ring nut on counterclockwise bottom of the body, if the nut is screwed.
2. Insert the rear shell (that with cable clamp) on the bottom in manner that the hole coincides with
the protrusion.
3. Couple the rear shell to the front, by exerting some pressure all the way down, making sure the
clips are firmly locked.
4. Plug the power cord through the hole. Plug the power cord through the guidance of the shell.
Secure the set by turning clockwise the ring nut.
At the end of the operation, check that the support base is firmly coupled and attached to the motor
body.
