• Stand the appliance on a horizontal, flat surface or table; do not stand on a inclined plane
(the appliance could upset).
Before assembling the fan, make sure it is unplugged from the socket.
The appliance can only be used once correctly assembled in all its parts, complete with
counterweight base, protective grills, propeller.
Proceed as shown and use the images for reference.
A. Unscrew and remove the ring nut (6) from the column, insert the ring (3), and tighten
the ring nut again.
B. Set the column (14) in place on the base and secure it using the "L" screw with washer
(1) while also engaging the counterweight.

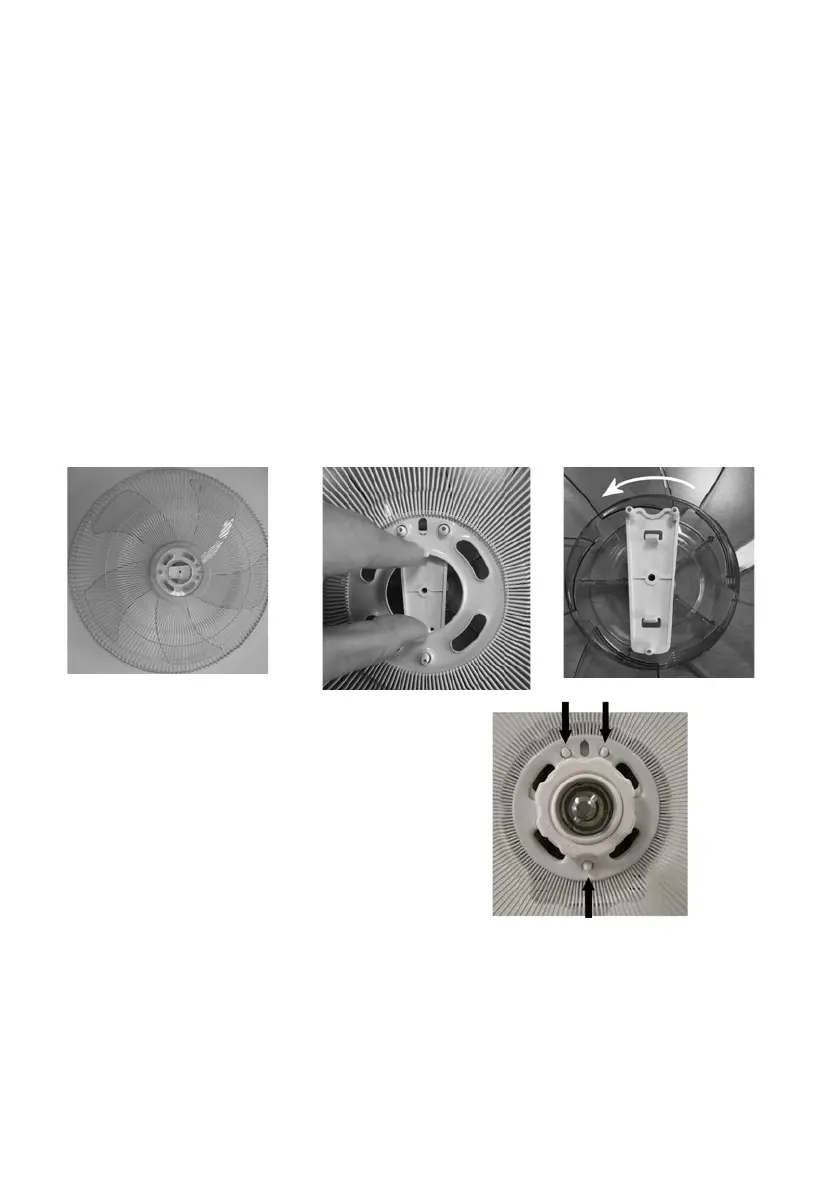

C. Remove the propeller from the rear grille (refer to the pictures):
-
Place the propeller side on a flat surface
-
Press the fixing clips of the plate inwards
-
Rotate the plate outwards to extract it completely from the propeller
The plate must not be used for the fan, it has to be disposed of at the appropriate
separate collection centres
D. Unscrew the ring nut (15) and the ring nut (16)
(turn clockwise) from the motor body.
Insert the rear grill (12) into the motor body
(see the picture on the side as a reference), so
that the two upper pins and the lower pin of
the front motor body coincide with the holes
in the grill; lock with the appropriate ring nut
(15).
