E. Insert the propeller (13) onto the drive shaft (5)
and lock it with the ring nut (16) (turn counter
clockwise and tighten).
F.

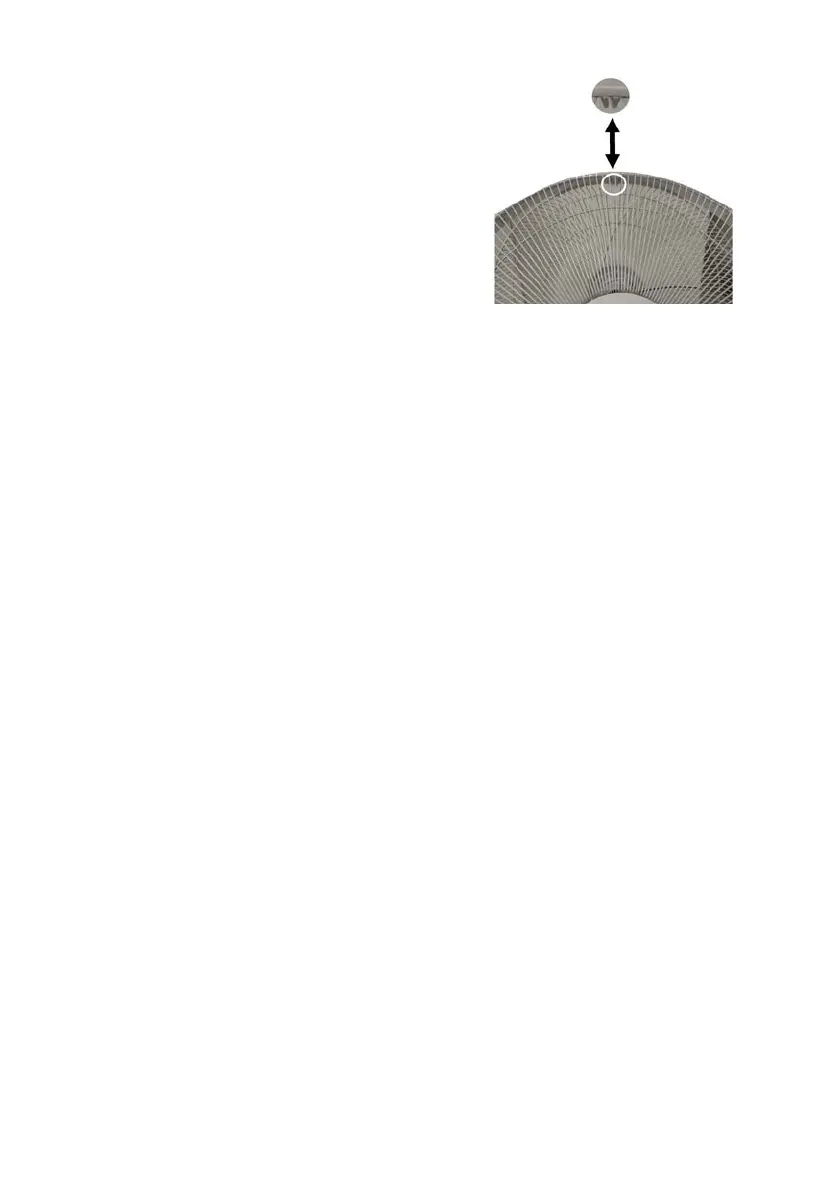

To fasten the front grill, it is best to place the
main unit on a smooth even floor.
Join the front
grille (11) to the rear grille (12): insert the hook
of the front grille (it must be in the upper part,
as in the side image) on the rear, locking them
by pressing the front grille with the rear one to
fix the hooks co
rrectly (placed on the plastic
perimeter ring of the front grille).
Secure it with the closing clip (15, it must be
in the lower part) and fix it with the screw. At
the end of the procedure, check that the
protection grids are firmly joined and fixed to
