8

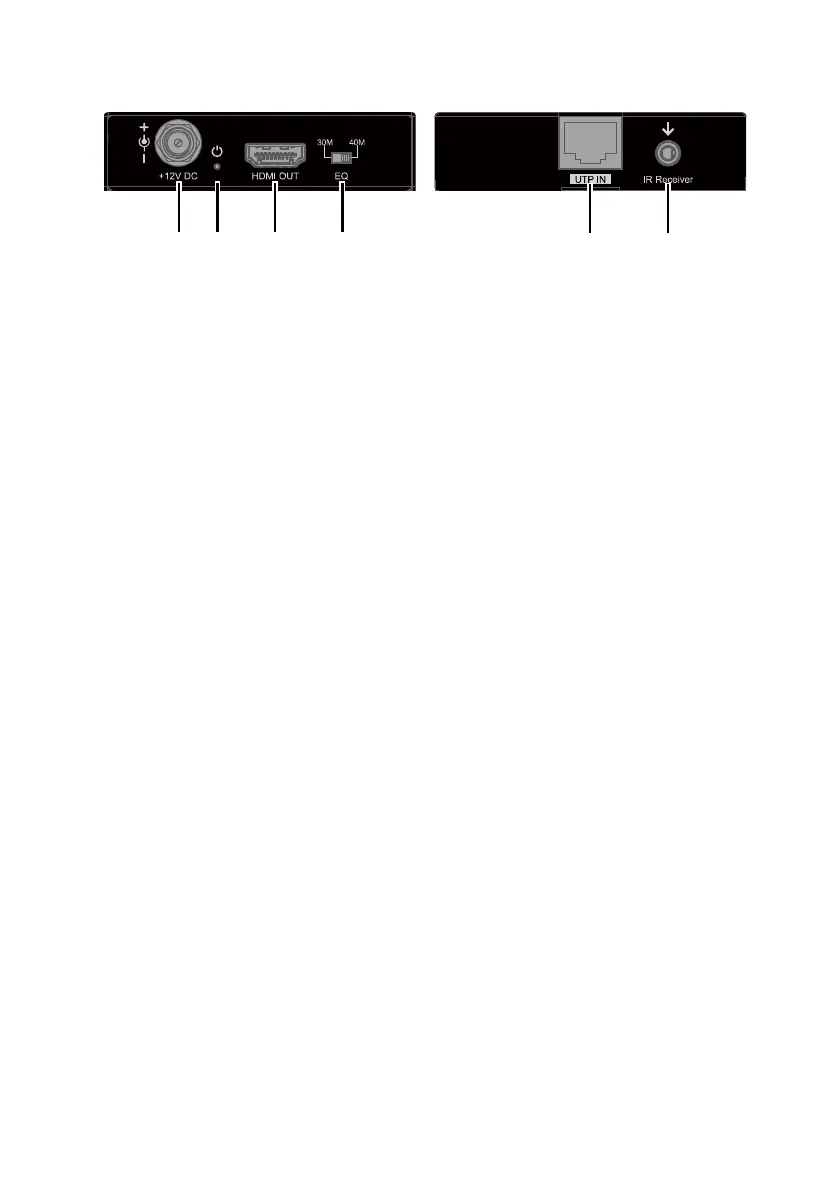

4.2. B-330-1CAT-40 Receiver
1. +12V DC
Connect to the power adapter provided.
Note: When the power adapter is connected to transmitter, the UTP link sends power
to receiver. Only one power adapter is needed at transmitter to power both units.
2. Power LED
On/Off: The device is powered on/off.
3. HDMI Out
Connect to an HDMI display device.
4. EQ
EQ DIP Switch: Set the maximum transmission distance manually.
• Short: Category cable runs from 0 - 20m.
• Long: Category cable runs from 2
0m - 40m.
5. UTP IN
Connect to transmitter via a Cat 5e/6/7 cable.
6. IR Receiver
Connect to a broadband IR receiver.
4321
65
