Bindicator Pulse Point II Series User Manual

11
www.bindicator.com
LVP180914 Rev. D
CAUTION: IF THE UNIT WAS SUPPLIED WITH A GASKET AVOID FOLDING, CUTTING, OR TEARING GASKET.
DAMAGING THE GASKET CAN ALLOW MOISTURE TO ENTER THE ENCLOSURE AND DAMAGE THE UNIT.

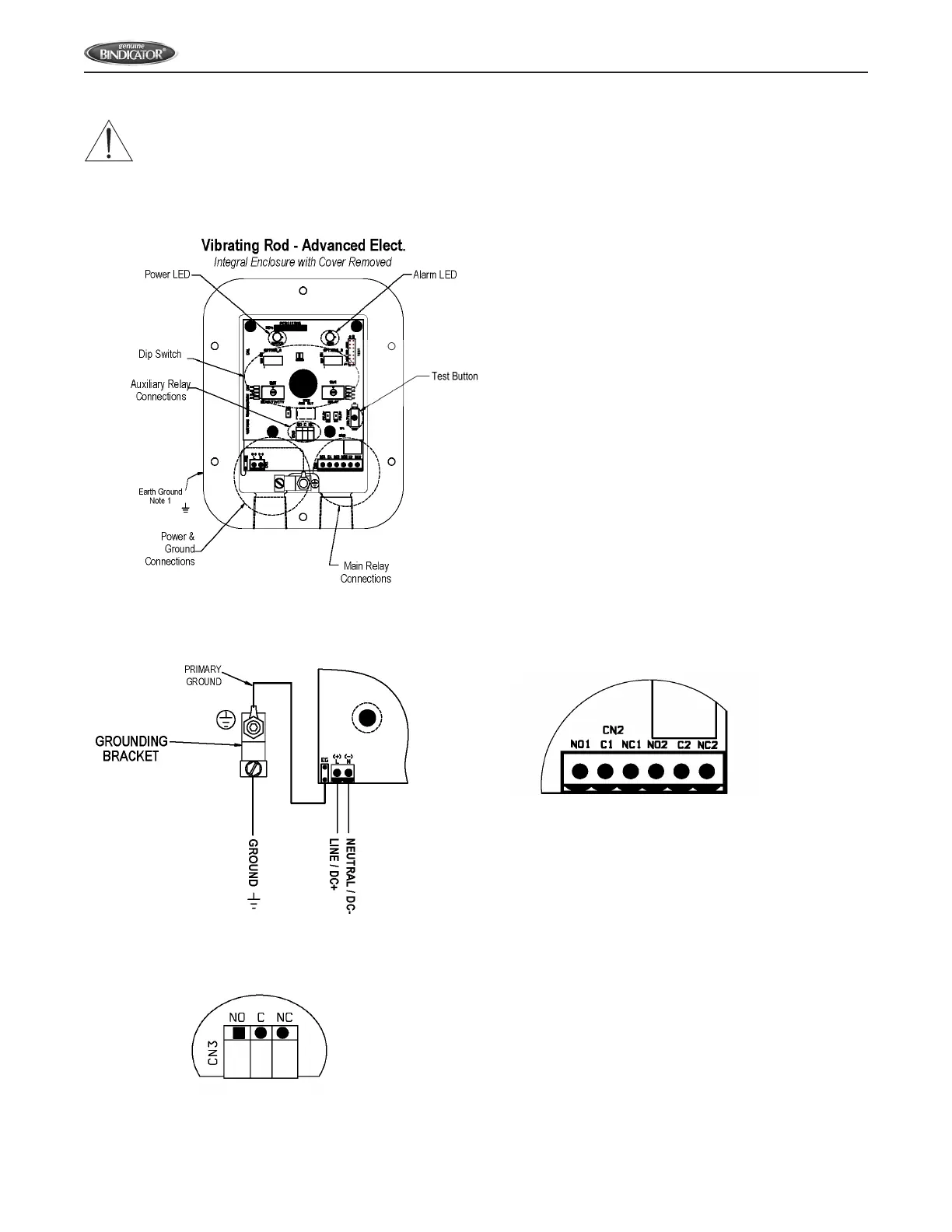

Figure 4. LP II Integral Enclosure with Cover Removed - ADVANCED
Figure 5. Power and Ground Connections Figure 6. Main Relay Connections
Figure 7. Auxiliary Relay Connections - ADVANCED ONLY
Note:
1. For safety, properly ground the
enclosure to an adequate earth
ground.
