22
www.bindicator.com
TDR180003 Rev. I
Name (number), function Adjustable value range Description
Default value
Tank type (P40a),
Tank shapes for volume
measurement
Selectable values:
− Output Conversion table (OCT)
− Standing cylindrical tank with
dome bottom
− Standing cylindrical tank with
conical bottom
− Standing rectangular tank with or
without chute
− Lying cylindrical tank
− Spherical tank

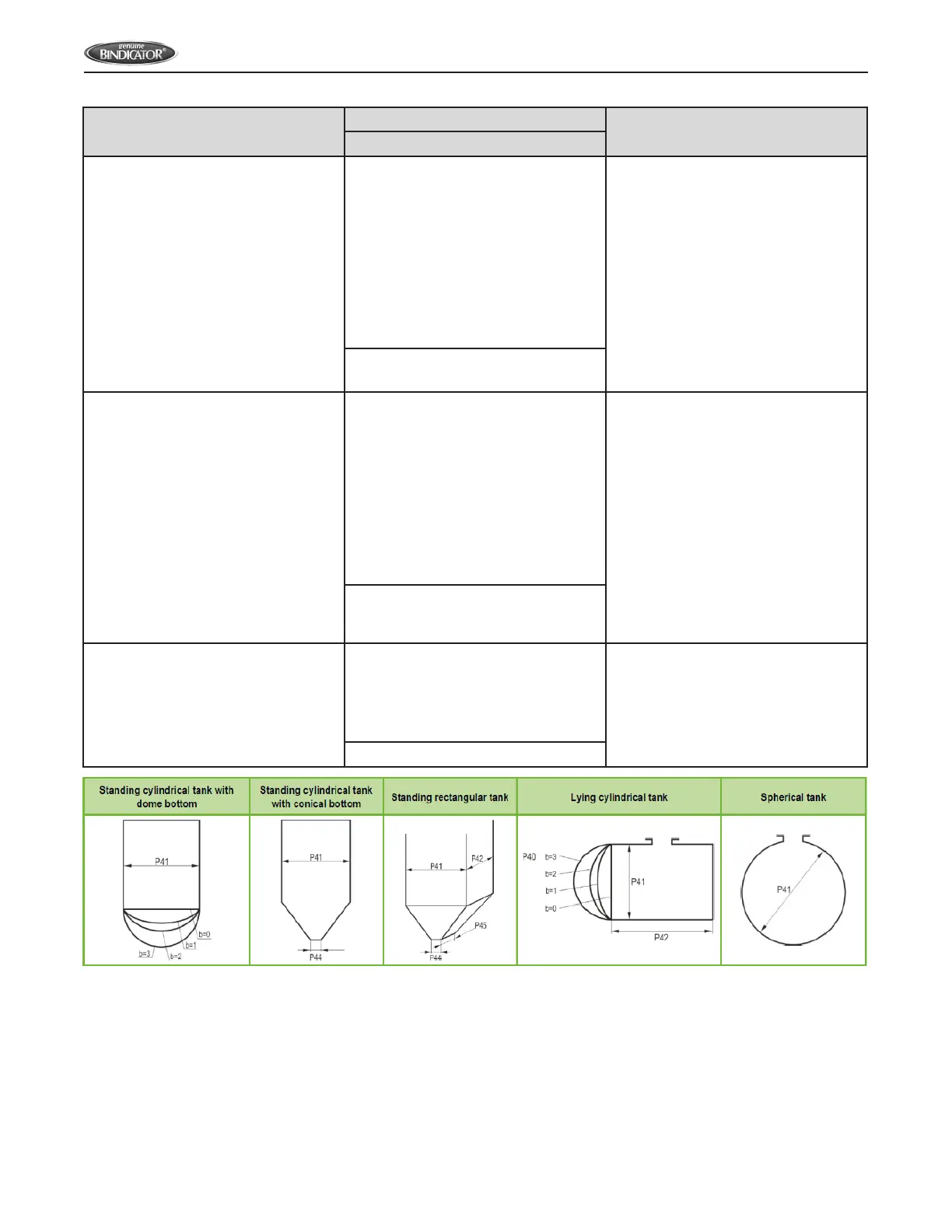

Selecting a typical basic container
shape for volume measurement. The
tank dimensions can be set using
parameters P41… P45 (see figures
below). If OCT is set, the tank shape
must be specified in tabular form.
Display:
MAIN MENU / CALCULATION /
TANK SHAPE
IT IS ONLY DISPLAYED IF THE PV
IS VOLUME
Standing cylindrical tank with
dome bottom
Tank type (P40a),
Tank shapes for volume
measurement
Selectable values:
− Output Conversion table (OCT)
− Standing cylindrical tank with
dome bottom
− Standing cylindrical tank with
conical bottom
− Standing rectangular tank with
or without chute
− Lying cylindrical tank
− Spherical tank
Selecting a typical basic container
shape for volume measurement.
The tank dimensions can be set
using parameters P41… P45 (see
figures below). If OCT is set, the
tank shape must be specified in
tabular form.
SAP–300:
MAIN MENU / CALCULATION /
TANK SHAPE
IT IS ONLY DISPLAYED IF THE PV
IS VOLUME!
Standing cylindrical tank with
dome bottom
Tank type (P40b), Tank properties for
volume measurement, tank bottom
shape
Selectable values:
− 0 (flat)
− 1
− 2
− 3
0 (flat)
