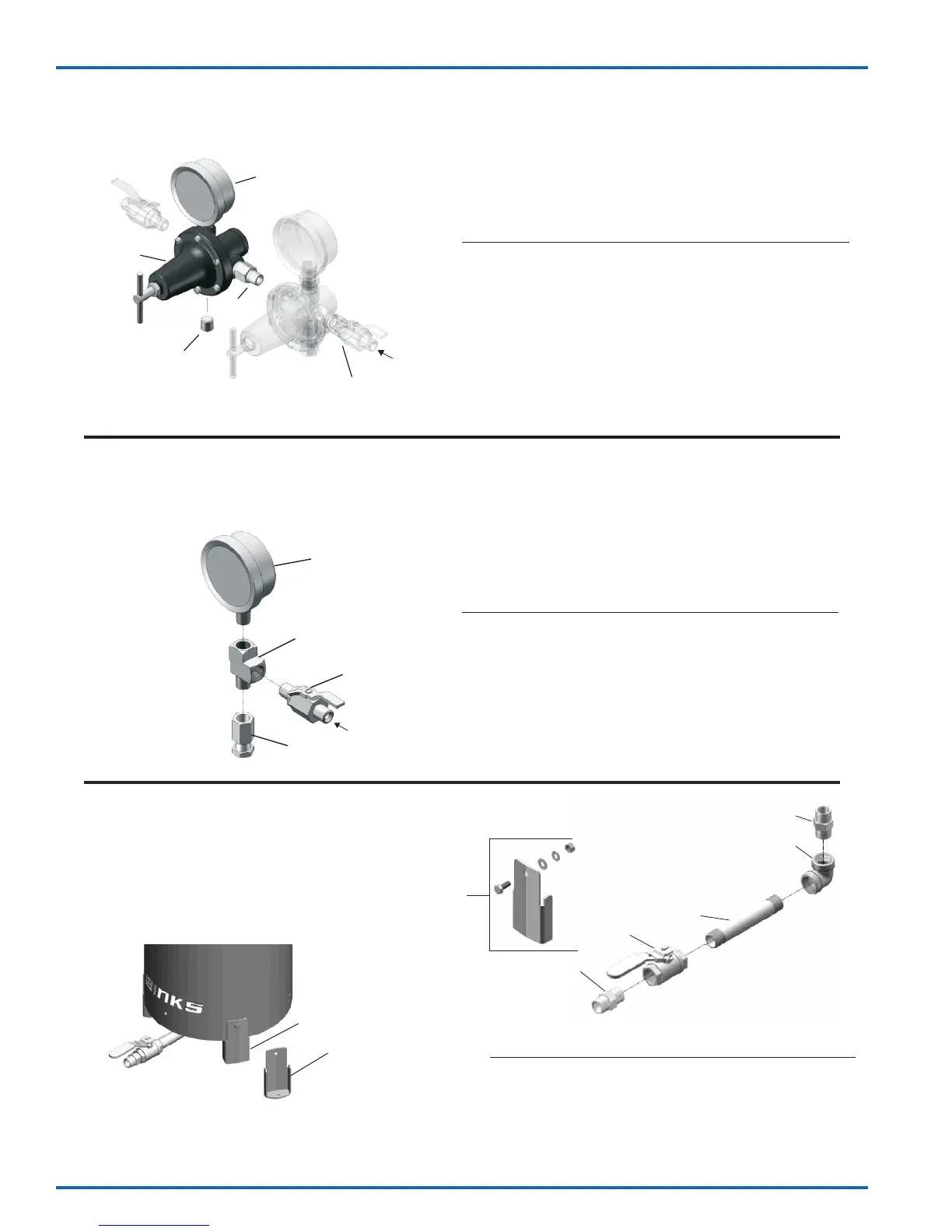

Use when fluid pressure in tank is regulated by some other, separate, method of control.
ITEM
NO.
PART
NO. DESCRIPTION QTY.
1 • —
ADAPTER, 1/4 NPT(F) X 1/4 NPS
(SW)
1
2 • — STREET TEE 1
3 83-1290 GAUGE, 150 PSI 1
4 VA-542 BALL VALVE 1
•Purchase locally
AIR IN
QMS-4003 NO REGULATION KIT
85-469 CONVERSION TO DOUBLE REGULATOR ASSEMBLY KIT
Convert standard single regulator or extra-sensitive air control to a double regulator air control.
ITEM
NO.
PART
NO. DESCRIPTION QTY.
6 • — 1/4 NPT PLUG (SUPPLIED W/ REGULATOR) 1
7 83-4233 D.M. NIPPLE 1/4 x 3/8 1
8 HAR-507 AIR REGULATOR 1
9 83-1355 GAUGE – 100 PSI 1
•Purchase locally
9
7
8
6
EXISTING
REGULATOR
AIR IN
1
2
3
4
1
5
ITEM
NO.
PART
NO. DESCRIPTION QTY.
1 — ADAPTER, 3/4 NPT-NPS UNIVERSAL 2
2 — ELBOW, 3/4 NPT (F) 1
3 — PIPE NIPPLE 1
4 — BALL VALVE, 3/4 NPT FULL PORT 1
5 183-3005 LEG KIT 3
BOTTOM OUTLET KIT WITH LEGS
Allows conversion of tank from standard top outlet to bottom
outlet. All bottom outlet wetted parts are stainless steel.
183-3001 for 5/10/15 gallon tanks with ¾” bottom outlets.
Includes three 183-3005 Leg Kits.
Legs can be oriented either inward or outward to provide flexibility
in mounting.
Outward orientation
Inward orientation
BOTTOM OUTLET KIT
EN
77-3134-R1.0 (9/2017)10 / 12www.carlisleft.com
