Binks 31-396 - Component Diagrams and Parts; Figure 1: Gear Drive with Air Motor

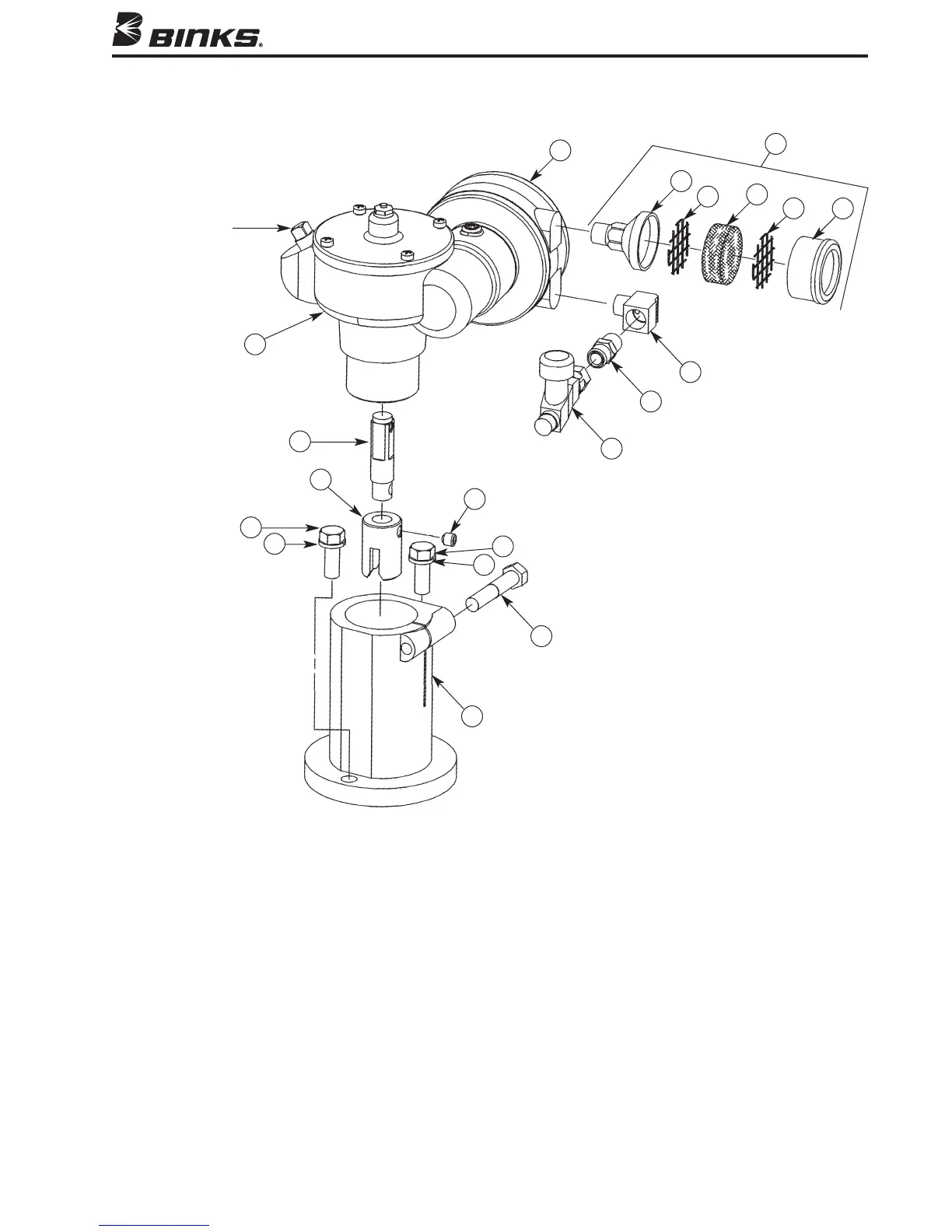

FIGURE 1 — 31-401 GEAR DRIVE WITH AIR MOTOR
5
ITEM PART
NO. NO. DESCRIPTION QTY.
ITEM PART
NO. NO. DESCRIPTION QTY.
23
Purchase Locally LOCK WASHER 3/8" .......................... 2
24
Purchase Locally HEX HEAD CAP SCREW.................... 2
3/8-16 x 1" long (plated)
25 --- GEAR BOX (Figure 3) .......................... 1
26 31-57 COUPLING ........................................ 1
27 31-398 DRIVE SHAFT ASSEMBLY.................. 1
28
Purchase Locally SET SCREW 5/16-18 x 5/16" long .......... 1
29
Purchase Locally HEX HEAD CAP SCREW.................... 1
3/8-16 x 2" long (plated)
30 31-395 COUPLING ADAPTER ........................ 1
31 350-401 AIR STRAINER .................................. 1
32 --- STRAINER BODY .............................. 1
33+ --- SCREEN.............................................. 2
34+• --- FELT .................................................. 1
35 --- STRAINER CAP .................................. 1
36
Purchase Locally STREET ELBOW,................................ 1
1/4" (M) x 1/4" (F) NPT brass
37 H-2008 NIPPLE, 1/4" NPS (M) x 1/4" NPT (M) ...... 1
38 HAV-500 AIR ADJUSTING VALVE .................... 1
1/4" NPS (M) x 1/4" NPS (F) swivel
39 --- AIR MOTOR, (Figure 2) ...................... 1
•
Included in KK-5001-1 Air Motor Repair Kit. See page 6 for
additional parts included in this kit.
+ Item No. 33 (2 ea.) and Item No. 34 (4 ea.) included in
KK-5006 Strainer Screen and Felt Kit.
PARTS LIST
When ordering, please specify Part No.
32
34
35
33
33
39
31
38
37
36
29
30
23
24
26
27
25
O
il Fill
23
24
28
