Binks 31-396 - Figure 2: Air Motor Assembly

6

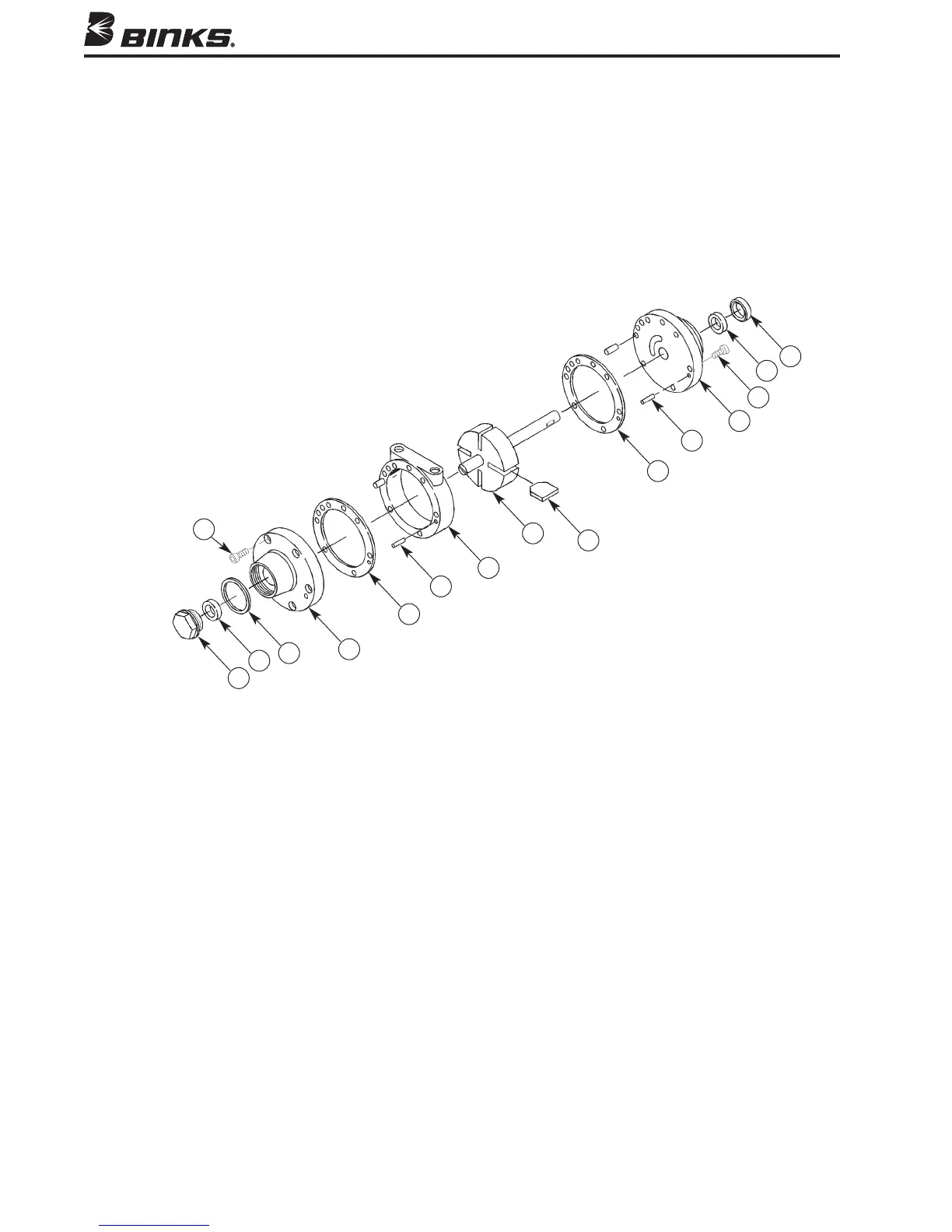

FIGURE 2 — QS-4016 AIR MOTOR
PARTS LIST
When ordering, please specify Part No.
ITEM PART
NO. NO. DESCRIPTION QTY.
ITEM PART
NO. NO. DESCRIPTION QTY.
40 QS-336 OIL SEAL ........................................ 1
41 QS-197 BEARING ........................................ 1
42
Purchase Locally MACHINE SCREW, 1/4-28 x 1/2 ........ 12
43 QS-334 END PLATE...................................... 1
44 QS-189-1-K10 DOWEL PIN
(Kit of 10) .................... 4
45• PT-59-1-K10 END PLATE SPACER KIT
(Kit of 10) .... 2
46• --- VANE .............................................. 4
47 QS-442 ROTOR AND SHAFT ASSEMBLY .... 1
48 QS-335 BODY ............................................ 1
49 QS-333 FRONT PLATE ................................ 1
50• --- END CAP GASKET .......................... 1
51 PT-58 BEARING ........................................ 1
52 QS-190 END CAP ........................................ 1
•
Parts available in KK-5001-1 Air Motor Repair Kit.
52
51
50
49
45
44
48
47
46
45
44
43
42
40
41
42
